Custom Reversible Soil Belt Conveyor Mining Industries Applicable
Custom Reversible Mining Applicable Industries Soil Belt Conveyor

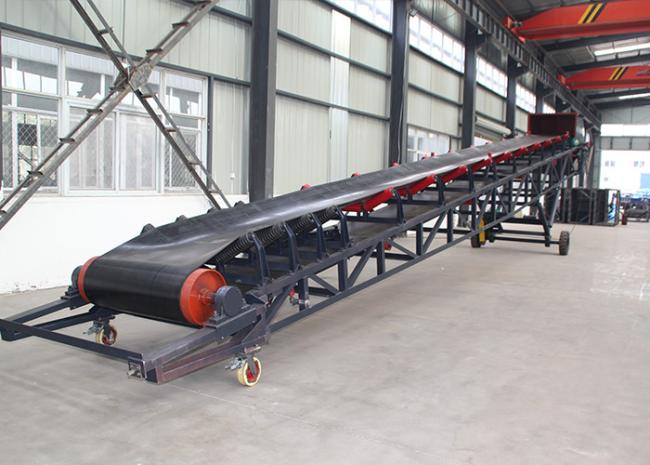

Product introduction
The belt conveyor is continuous transportation equipment, it has the features of large capacity,strong versatility. It can use a special belt with corrugated sidewall and horizontal cleats and designed with compact structure, small volume and large inclination transportation as a more ideality facility.
Application
1. Our belt conveyor is widely used in mining, metallurgy, and the coal industry to transfer all kinds of materials in order to realize the continuity and automation of production.
2. The conveying system can be one single or multi-conveyors or combined with other conveying equipment to meet various requirements.
3. The belt conveyor can be installed horizontally or aslope to meet the needs of different conveying lines.
4. Our belt conveyor can be operated in the circumstance temperature from -20 degrees to +40 degrees. The temperature of the transported materials should be lower than 50 degrees.
Technical parameter
| Model | DY5051 | DY5071 | DY50101 | DY50102 | DY50102A | DY50151 | DY50152 | DY50152A | |
| Conveyor length(m) | 5 | 7 | 10 | 10 | 10 | 15 | 15 | 15 | |
| Belt width(mm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | |
| Max. conveying height(m) | 1.63 | 1.59 | 1.77 | 4.52 | 4.52 | 1.61 | 6.32 | 6.32 | |
| Conveying capacity | M3/h | 160 | 160 | 160 | 125 | 125 | 160 | 125 | 125 |
| Drive pulley | Model | DY1.4 | DY1.4 | DY1.4 | DY1.5 | DY1.3 | DY1.4 | DY1.6 | DY1.3 |
| Power KW | 2.2 | 2.2 | 2.2 | 3.0 | 1.1 | 2.2 | 4.0 | 1.1 | |
| Weight(Kg) | 518 | 604 | 892 | 1126 | 1071 | 1225 | 1491 | 1491 | |
Wroking principle
A material transfer process is formed between the initial feed point and the final discharge point on a certain conveying line.It can not only carry out the transportation of scattered materials, but also carry out the transportation of finished goods.In addition to pure material transportation, it can also cooperate with the requirements of the technological process in the production process of various industrial enterprises to form a rhythmical flow operation transportation line.
