Plate Chain Bucket Elevator With Low Energy Consumption
Price:
Negotiable
MOQ:
1
Delivery Time:
10~15 work days after receiving fullpayment
Brand:
Green Eco-Equipment
Product Description
Plate Chain Bucket Elevator With Low Energy Consumption
Description
It is suitable for the dehydration of products after selection. The chain plate is made of high-quality chain plate steel, and the track is made of manganese steel, which has long wear-resistant service life, no maintenance, and high quality.
Specification
The following table shows the detailed data of different models of chain plate bucket elevator for your reference.
| Model | Capacity | Type of hopper | Max Material Size (mm) | ||||||
| Bucket Volume(L) | Bucket Pitch(mm) | Bucket Speed(m/m) | Percentage (%) | ||||||
| m3/h | 10 | 25 | 50 | 75 | 100 | ||||
| NE15 | 16 | 2.5 | 203.2 | 29.8 | 65 | 50 | 40 | 30 | 25 |
| NE30 | 31 | 7.8 | 304.8 | 30.1 | 90 | 75 | 58 | 47 | 40 |
| NE50 | 60 | 14.7 | 304.8 | 30.1 | 90 | 75 | 58 | 47 | 40 |
| NE100 | 110 | 35 | 400 | 31 | 130 | 105 | 80 | 65 | 55 |
| NE150 | 165 | 52.2 | 400 | 31 | 130 | 105 | 80 | 65 | 55 |
| NE200 | 220 | 84.6 | 500 | 30 | 170 | 135 | 100 | 85 | 70 |
| NE300 | 320 | 127.5 | 500 | 30 | 170 | 135 | 100 | 85 | 70 |
| NE400 | 441 | 182.5 | 600 | 30 | 205 | 165 | 125 | 105 | 90 |
| NE500 | 470 | 260.9 | 700 | 30 | 240 | 190 | 145 | 120 | 100 |
| NE600 | 600 | 300.2 | 700 | 30 | 240 | 190 | 145 | 120 | 100 |
| NE800 | 800 | 501.8 | 800 | 30 | 275 | 220 | 165 | 135 | 110 |

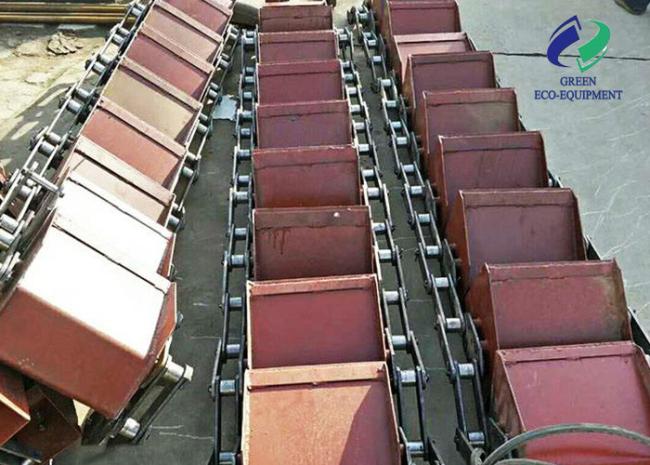

Detail Pictures
Chain plate bucket elevator consisits of hoppers, actuators, top and bottom rollers (or sprockets, tape, traction chains), tensioning devices and casings, etc.
