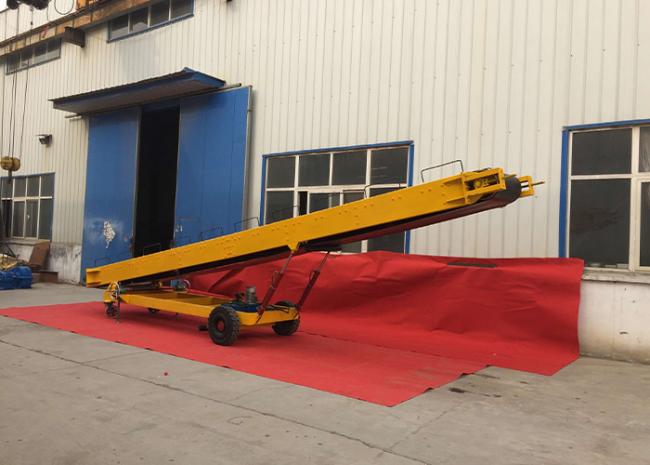

Coal Mining Mobile Belt Conveyor Machine For Mining Purposes
Coal Mining Belt Conveyor Machine for Mining Purposes
Product introduction
Belt conveyor is a kind of machine that to transfer the material continuously. The belt works under the effect of frictional force to transfer the material. Belt conveyor is mainly composed of frame,conveying belt, belt roller, tensioning device, transmission device, etc.
Feature
1. Belt conveyor is advanced and simple in structure, easy to maintain
2. Its transfer capacity is high, transfer distance is long.
3. Widely used in mining, metallurgical and coal industry to transfer sandy or lump material, or packaged material.
4. In many situation, it is a very important component of nonstandard machinery.
5. We have various types of hopper belt conveyor, such as 400, 500, 650, 800, 1000, 1200 etc.
Technical parameter
| Model | DY5051 | DY5071 | DY50101 | DY50102 | DY50102A | DY50151 | DY50152 | DY50152A | |
| Conveyor length(m) | 5 | 7 | 10 | 10 | 10 | 15 | 15 | 15 | |
| Belt width(mm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | |
| Max. conveying height(m) | 1.63 | 1.59 | 1.77 | 4.52 | 4.52 | 1.61 | 6.32 | 6.32 | |
| Conveying capacity | M3/h | 160 | 160 | 160 | 125 | 125 | 160 | 125 | 125 |
| Drive pulley | Model | DY1.4 | DY1.4 | DY1.4 | DY1.5 | DY1.3 | DY1.4 | DY1.6 | DY1.3 |
| Power KW | 2.2 | 2.2 | 2.2 | 3.0 | 1.1 | 2.2 | 4.0 | 1.1 | |
| Weight(Kg) | 518 | 604 | 892 | 1126 | 1071 | 1225 | 1491 | 1491 | |
Wroking principle
A material transfer process is formed between the initial feed point and the final discharge point on a certain conveying line.It can not only carry out the transportation of scattered materials, but also carry out the transportation of finished goods.In addition to pure material transportation, it can also cooperate with the requirements of the technological process in the production process of various industrial enterprises to form a rhythmical flow operation transportation line.
