NE series plate chain bucket elevator

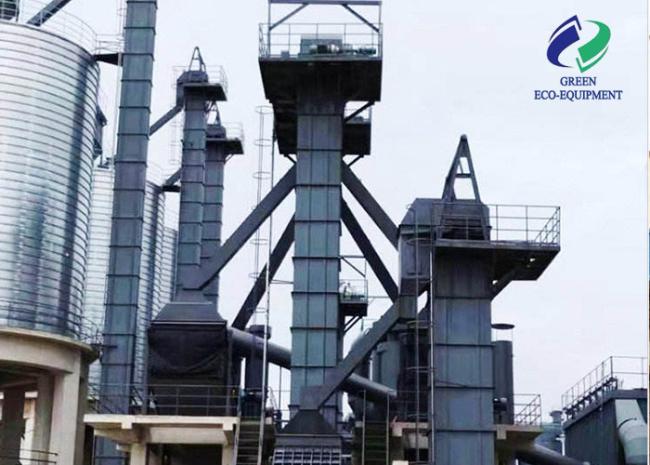

NE series plate chain bucket elevator is designed by our company absorded from foreign chain technology. It is big hopper and large capacity which can be used in cement plant,mineral,chemical and other else convey industries.
Technical parameters:
| Model |
Capacity m 3 /h |
Max. size of material (mm) | ||||
| Percentage % | ||||||
| 10 | 25 | 50 | 75 | 100 | ||
| NE15 | 15 | 65 | 50 | 40 | 30 | 25 |
| NE30 | 32 | 60 | 75 | 58 | 47 | 40 |
| NE50 | 60 | 90 | 75 | 58 | 47 | 40 |
| NE100 | 110 | 130 | 105 | 80 | 65 | 55 |
| NE150 | 170 | 130 | 105 | 80 | 65 | 55 |
| NE200 | 210 | 170 | 135 | 100 | 85 | 70 |
| NE300 | 320 | 170 | 135 | 100 | 85 | 70 |
| NE400 | 380 | 205 | 165 | 125 | 105 | 90 |
| NE500 | 470 | 240 | 190 | 145 | 120 | 100 |
| NE600 | 600 | 240 | 190 | 145 | 120 | 100 |
| NE800 | 800 | 275 | 220 | 165 | 135 |
110 |
Product features
1.Large capacity
Apply big hopper and small pitch of hopper, the capacity can be up to 800m3/h. Feeding way is that inflow to feed and gravity induce to discharge.
2.Large using scope
It can not only elevate general powder and small granular material but also can elevate clump material.The temperature of material need≤250%°C
3.Nice appearance and sealing well. Lower pollution of environment.
4.The running parts are hopper and sleeve roller chain. NE30 applies single row chain, above NE50 apply double row chain.Drive device are motor+ reducer+chain drive. The reducer apply hard tooth surface ZLY and ZSY. It also can be designed the maintance frame and handrail according customer's needs.
