Heavy Stone Cast Steel Apron Feeder Conveyor Plate Type Running Smoothly
Price:
20000-200000 USD per set
MOQ:
1 Set
Delivery Time:
30 Days
Brand:
Green
Product Description
Heavy Stone Apron Plate Type Feeder Running Smoothly Cast Steel Apron Feeder Conveyor
Product description
The newly redesigned Apron Feeders from Tianyu easily handle high-impact feeds of heavy, coarse and sharp materials from trucks, surge piles, bins, and hoppers – as they provide a controlled flow of the material to the next stage in the process.

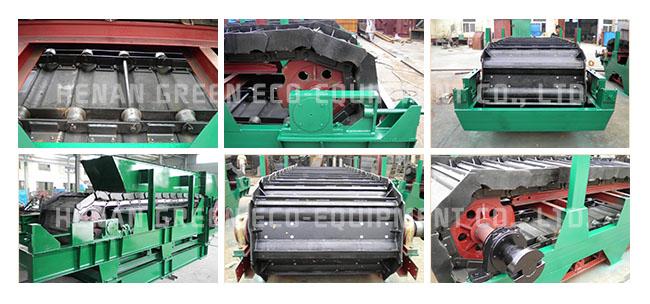

Detailed photos
Advantages
- The apron feeder is widely used in conveying metal ,limestone, gold ore and construction waste,gypsum, etc.
- It can bear big pressure under small silo or loader.
- The speed can be adjusted by frequency conversion control cabinet.
- Adopting the feed trough, to prevent the material leakage.
- The thickness of plate is from 8mm to 20mm.
- Can be customized.
Technical Parameters
| Model | Plate width | Head to tail shaft center distance | Speed | Feed size | Capacity | Power | Reference weight |
| (mm) | (mm) | (m/s) | (mm) | (t/h) | (kw) | (kg) | |
| WBL100-6 | 1000 | 6000 | 0.01-0.15 | ≤500 | ≤150 | 18.5 | 10000 |
| WBL120-6 | 1200 | 6000 | 0.01-0.15 | ≤600 | ≤200 | 22 | 14000 |
| WBL125-6 | 1250 | 6000 | 0.01-0.15 | ≤600 | ≤200 | 22 | 15000 |
| WBL140-8 | 1400 | 8000 | 0.01-0.15 | ≤700 | ≤300 | 30 | 20000 |
| WBL150-10 | 1500 | 10000 | 0.01-0.15 | ≤1200 | ≤300 | 37 | 25000 |
