Product Description
Apron Chain Conveyor is widely used in building material, metallurgy, electric power, coal, chemical industry, foundry industry, etc. Especially suitable for the conveying of high temperature, large blocks, with sharp edges and wear resistance strong solid material In the cement industry, the best choice for shaft kiln clinker conveying.
Advantages
1. The apron feeder is widely used in conveying metal ,limestone, gold ore and construction waste,gypsum, etc.
2. It can bear big pressure under small silo or loader.
3. The speed can be adjusted by frequency conversion control cabinet.
4. Adopting the feed trough, to prevent the material leakage.
5. The thickness of plate is from 8mm to 20mm.
6. It can be matched with ABB, Siemens, Flender and SEW etc if required.
7. Can be customized.
Main Parameters
| Model | Plate width | Head to tail shaft center distance | Speed | Feed size | Capacity | Power | Reference weight |
| (mm) | (mm) | (m/s) | (mm) | (t/h) | (kw) | (kg) | |
| WBL100-6 | 1000 | 6000 | 0.01-0.15 | ≤500 | ≤300 | 18.5 | 15000 |
| WBL120-6 | 1200 | 6000 | 0.01-0.15 | ≤600 | ≤400 | 22 | 16000 |
| WBL125-6 | 1250 | 6000 | 0.01-0.15 | ≤600 | ≤450 | 22 | 18000 |
| WBL140-8 | 1400 | 8000 | 0.01-0.15 | ≤700 | ≤500 | 30 | 29000 |
| WBL150-10 | 1500 | 10000 | 0.01-0.15 | ≤1200 | ≤800 | 37 | 49000 |

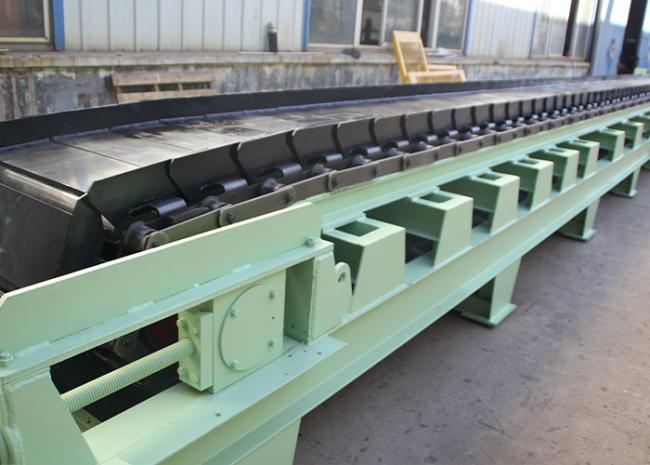

Detailed photo
Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.
