Middle Duty Roller Chain Apron Plate Feeder Cement Clinker Feeding Machine
Heavy Apron Feeder China Supply Plate Feeder Cement Clikner Feeding Machine
Product description
Apron feeder conveyor is driving by cycle running chain, that can transport all kinds of bulk materials along horizontal or inclined (inclination angle is less than 25 °) direction. Since the carrying part and running parts are made by metal, thus compared with other continuous conveying machinery, apron conveyor can transport material with bigger bulk density & size, and material with sharp edges with strong abrasion, especially suitable for conveying high temperature( 600~700 ℃ ) material. Therefore, apron conveyor is wildly used in mining, building materials, metallurgy, coal, chemical and other industries for transporting sharp, burning, corrosive material.

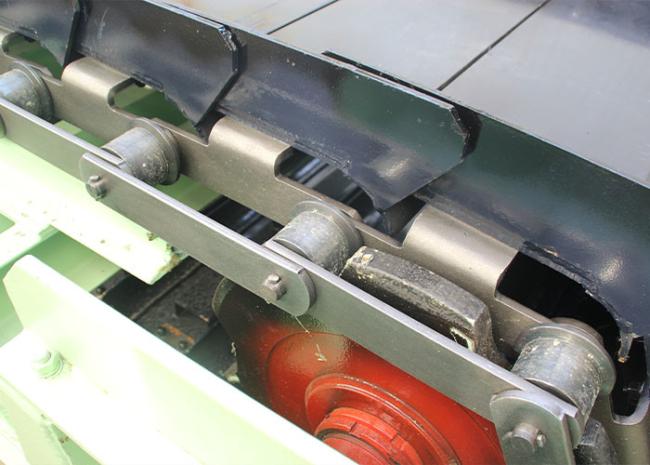

Detailed photos
Advantages
- The apron feeder is widely used in conveying metal ,limestone, gold ore and construction waste,gypsum, etc.
- It can bear big pressure under small silo or loader.
- The speed can be adjusted by frequency conversion control cabinet.
- Adopting the feed trough, to prevent the material leakage.
- The thickness of plate is from 8mm to 20mm.
- Can be customized.
Technical Parameters
| Model | Plate width | Head to tail shaft center distance | Speed | Feed size | Capacity | Power | Reference weight |
| (mm) | (mm) | (m/s) | (mm) | (t/h) | (kw) | (kg) | |
| WBL100-6 | 1000 | 6000 | 0.01-0.15 | ≤500 | ≤150 | 18.5 | 10000 |
| WBL120-6 | 1200 | 6000 | 0.01-0.15 | ≤600 | ≤200 | 22 | 14000 |
| WBL125-6 | 1250 | 6000 | 0.01-0.15 | ≤600 | ≤200 | 22 | 15000 |
| WBL140-8 | 1400 | 8000 | 0.01-0.15 | ≤700 | ≤300 | 30 | 20000 |
| WBL150-10 | 1500 | 10000 | 0.01-0.15 | ≤1200 | ≤300 | 37 | 25000 |
Application
