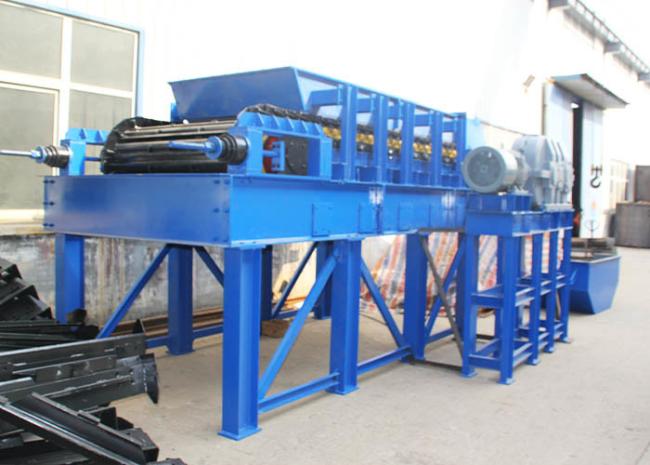

Heavy Duty Apron Plate Chain Conveyor Feeder For Big Stone
Heavy Duty Apron Plate Chain Conveyor Feeder For Big Stone
Product Description
The apron conveyor is a series of conveying equipment that carries a solid moving material to support the bulk solid material by a series of metal chain plates supported on the roller chain. Chain plate conveyors are available in three types: horizontal, inclined and horizontally inclined. The working principle is basically the same. The movement of materials is formed by the phosphor plate.
Main Parameters
| Model | BW | ||||||
| Width of chain plate(mm) | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 |
| Load capacity(m3/h) | 65-210 | 80-225 | 95-300 | 110-345 | 140-390 | 160-430 | 200-500 |
| speed | 1.2-10 | ||||||
| Transmission angle (°) | <25 | ||||||
| Conveying length(m) | <35 | ||||||
| Materials handling | Pulp board, waste paper,wood chip/waste paper in bulk and in bale | ||||||
(1) Plate width series: B=650mm, 800mm, 1000mm, 1200mm; two applications of B=800mm and 1000mm are widely used;
(2) The weight of transporting a single object: generally 75kg, and the Max can be as large as 120-150kg;
(3) The length of the conveyor: generally 60-120m, and the max length can reach 200m;
(4) Conveyor Running speed: v=0.8, 0.96, 1.2, 1.5, 1.8, 2.4, 3.0 m/min;
(5) Lifting height of the conveyor: Max can reach 10m;
(6) For all kinds of materials, the conveyor has a large allowable inclination of 25 degrees.
Project Case
The chain plate conveyor is a kind of slab conveyor, widely used in machinery, casting, metallurgy, chemical, building materials, power, mining and other industrial sectors. It is an indispensable equipment in the process of raw material processing or continuous production. Sharp materials are especially suitable.
