Carbon Steel Trommel Screen Machine Sawdust Cylinder Shaker 16r/Min
Trommel Screen Machine High Yield And Easy Operation Sawdust Shaker
Product Description

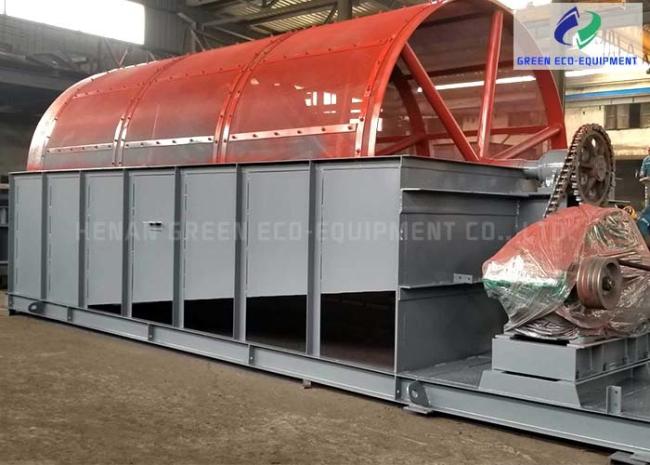

Sawdust shaker is sieving cylinder, which is composed of several circular screen, the whole body is slant on theground. External is sealed by the cowling in order to avoid dust. Through rolling, the materials are separated from top to bottom,and the fine material is discharged from the front and the block is discharged from bottom.
Main Parameters
| Model | Length Range | Segment No. | Aperture Size | Power (Kw) |
Inclined Angle | Max. Material Size | Rotating Speed(rpm) |
| YTS600 | 2-4m | 1-2 | 5-35mm | 2.2-3 | 0-7° | 50mm | 15-18 |
| YTS800 | 2-5m | 1-3 | 5-40mm | 3-5.5 | 0-7° | 60mm | 15-18 |
| YTS1000 | 2-6m | 1-4 | 5-50mm | 4-7.5 | 0-7° | 80mm | 15-18 |
| YTS1200 | 3-8m | 1-4 | 5-60mm | 5.5-11 | 0-7° | 100mm | 15-18 |
| YTS1500 | 3-10m | 1-5 | 5-60mm | 7.5-1 5 | 0-7° | 150mm | 15-18 |
| YTS2000 | 4-12m | 1-5 | 5-75mm | 7.5-l 8.5 | 0-7° | 180mm | 15-18 |
| YTS2500 | 5-12m | 1-6 | 5-90mm | 11-l 8.5 | 0-7° | 200mm | 15-18 |
Applications
It is widely used for mining sieving and construction waste, as well as many other kinds of materials, for example: compost, agriculture waste recycling, river sand, ore, refractory materials, grape pomace, chemical etc. It provides a simple, efficient and economical solution to upgrade a wide range of material. This screening method helps reduce operating and investment costs, improves product quality, and allows for fast and high-volume processing.
Features
| 1. Mixing equably and running steadily; |
| 2. Little shock vibration; |
| 3. Easy installation and maintenance; |
| 4. Conveniently fixed or placed on ground only. |
| 5. Configured for classification, screening and grading |
