ISO9001 Small Screw Conveyor Heat Resistant GX Screw Conveyor
Acceptable Quality Level Small Screw Conveyor New Type GX Screw Conveyor
Product Description
Small screw conveyor are spiral bulk material transportation systems that convey raw
ingredients to and from processing areas that are on different levels of a facility. These
conveyors can horizontal transport materials, also it can slanted at different angles to
economically elevate and convey materials up and down floors. They require ample space
and an increased amount of power to lift the material, depending on the steepness of the angle.
Main Parameters of Small Screw Conveyor
| Model | Item | |||||||
|
Screw diameter (mm) |
Conveying distance(mm) |
Screw speed (r/min) |
largest feed ability (m³/h) |
Motor power (kw) |
Supporting reducer |
Material max size (mm) |
Reference weight (t) |
|
| SID1215 | 120 | 1500 | 20-80 | 1.4 | 1.1 | ZQ250 | 20 | 0.65 |
| SID1225 | 2500 | 0.87 | ||||||
| SID1615 | 160 | 1500 | 15-75 | 4.8 | 1.5 | ZQ250 | 25 | 0.78 |
| SID1625 | 2500 | 1.03 | ||||||
| SID2015 | 200 | 1500 | 15-60 | 7.4 | 2.2 | ZQ250 | 30 | 0.92 |
| SID2025 | 2500 | 1.23 | ||||||
| SID3015 | 300 | 1500 | 10-45 | 21.2 | 3 | ZQ250 | 40 | 1.10 |
| SID3025 | 2500 | 1.38 | ||||||
Applicaiton of Small Screw Conveyor
The screw conveyor is widely used for conveying powder, granule, and small block materials, such as: cement, sand, grain, gravel, chemical, fertilizer, coal, etc.

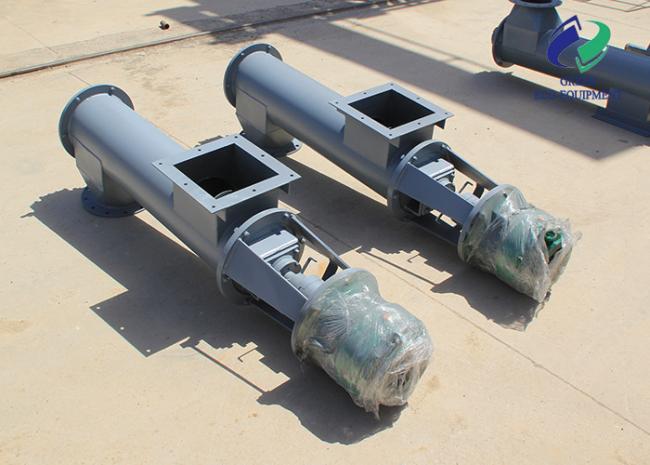

Packing & Shipping of Small Screw Conveyor
Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.
Field Usage of Small Screw Conveyor
