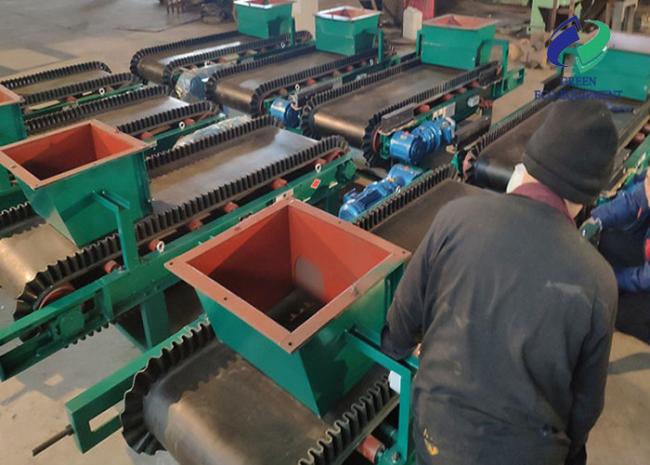

Gold Coal Stone Automatic Belt Scale Weighing Feeder
Product Description
Belt Scale Weighing Feeder is a perfect equipment to continuous weighing ,feeding and dosing of bulk material and powder and can also realize open-loop and closed loop and closed loop flow control. We have two models: WFL/WFM. It can be widely used in building materials chemicals , coal, ports, ceramics, food, fertilizer and other industries.
Working Principle
1.Direct weighing , so as to reduce error in the process of force transmission, as a result to realize accuracy ≤0.5%
2.Anti-deviation device___Auto aligning and alarming, to ensure belt running smoothly.
3.Auto tightening device~~~~~Avoid belt drooping and slipping
4.Inner and outer sweeper~~~~~Ensure no material remined on belt
Main Parameters
| Model No. | Belt width (mm) |
Length (m) |
Accuracy (%) |
Capacity (t/h) |
Allowed angle |
Sensor (unit) |
| 05 | 500 | 1.5-4 | ±0.5 | 15 | ≤6° | 2-4 |
| 06 | 650 | 1.5-4 | ±0.5 | 30 | ≤6° | 2-4 |
| 08 | 800 | 1.5-4 | ±0.5 | 80 | ≤6°° | 2-4 |
| 10 | 1000 | 1.5-4 | ±0.5 | 150 | ≤6° | 2-4 |
| 12 | 1200 | 1.5-4 | ±0.5 | 220 | ≤6° | 2-4 |
| 14 | 1400 | 1.5-4 | ±0.5 | 300 | ≤6° | 2-4 |
| 16 | 1600 | 1.5-4 | ±0.5 | 500 | ≤6° | 2-4 |
| 18 | 1800 | 1.5-4 | ±0.5 | 800 | ≤6° | 2-4 |
| 20 | 2000 | 1.5-4 | ±0.5 | 1000 | ≤6° | 2-4 |
Application
Belt Scale Weighing Feeder is a kind of mechanical equipment that continuously weighs and measures and transports solid bulk materials (blocks, granules, powder, etc.). It mainly used for Cement metallurgy chemical food building materials and other industries.
Limestone quartz iron powder clay coal.
