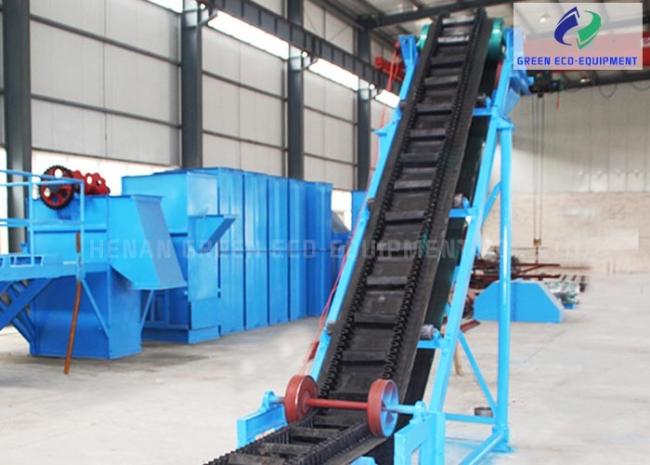

Large Industrial Material Loading Unloading Inclined Belt Conveyor With Baffle
Large Industrial Material Loading Unloading Inclined Belt Conveyor With Baffle
Product Description
The Inclined belt conveyor belt is made of rubber, silica gel, PVC, PU and other materials. In addition to the transportation of ordinary materials, it can also meet the transportation of materials with special requirements such as oil resistance, corrosion resistance, and anti-static. The use of special food-grade conveyor belts can meet the requirements of food, pharmaceutical, daily chemical and other industries.
Main Parameters
| Roller form |
Transmission speed(m/s) |
Belt width(mm) | |||||
| 500 | 650 | 800 | 1000 | 1200 | 1400 | ||
| Capacity(m3/h) | |||||||
| Trough idler | 0.8 | 78 | 130 | -- | -- | -- | -- |
| 1.0 | 97 | 164 | 278 | 435 | 655 | 891 | |
| 1.25 | 122 | 206 | 348 | 544 | 821 | 1115 | |
| 1.6 | 156 | 264 | 445 | 696 | 1048 | 1427 | |
| 2.0 | 191 | 323 | 546 | 853 | 1284 | 1748 | |
| 2.5 | 232 | 391 | 664 | 1033 | 1556 | 2118 | |
| 3.15 | -- | -- | 824 | 1233 | 1858 | 2528 | |
| 4.0 | -- | -- | -- | -- | 2202 | 2996 | |
| Flat idler | 0.8 | 41 | 67 | 118 | -- | -- | -- |
| 1.0 | 52 | 88 | 147 | 230 | 345 | 469 | |
| 1.25 | 66 | 110 | 184 | 288 | 432 | 588 | |
| 1.6 | 84 | 142 | 236 | 368 | 558 | 753 | |
| 2.0 | 103 | 174 | 289 | 451 | 677 | 922 | |
| 2.5 | 125 | 211 | 350 | 546 | 821 | 1117 | |
Remark: The conveying capacity in the form is based on the belt speed 1m/s, and it will vary according to the belt speed.
Inclined Belt Conveyor customized parameter reference:
1. The total length of the fuselage L: There are parallel type, inclined wall type, and climbing type;
2. Body height H/H1: The inclined wall type is divided into high-end H and low-end H1. The height on both sides can be fixed or adjustable. The parallel type has only one fixed height;
3. Bandwidth W: belts of different widths can be customized according to buyer's needs, and belts of different materials can be selected;
4. Fuselage load: The overall load of the fuselage (KG) determines the motor power;
5. Belt speed: calculate the number of meters per minute (m/min), which determines the size of the inverter; 6. Material: aluminum or iron profiles can be used for the body, and plastic cups or casters can be selected for the base.
Customer case
Packing & Shipping
Packaging:Usually wooden case for small size.Container for big size.
Delivery time:5-7 working days for small size.10-15 Working days for big size.
About us
Green Eco-Equipment had earned many certificates about the whole strength and had cooperated with many group companies in the whole world. There is a systematized program in our company, every order will strictly according to the standard system to show our customer the best immediately.
How to confirm model? CONTACT US NOW!!!
Our factory warmly welcome your customized order. You can decide any kind of conveyor belt as you like.
We will be appreciated if you can provide the following specification:
1. Conveyor belt type
2. Top cover thickness
3. Bottom cover thickness
4. No.of plies
5. Width of the conveyor belt
6. Grade
If you are not sure for any of above, we can recommend for you.
Once we get above information we will quote exact price at soonest time.
