350mm Round Diameter Rimmed Stainless Steel Woven Wire Mesh DISCS
350mm Round Diameter Rimmed Stainless Steel Woven Wire Mesh DISCS
Rimmed Stainless Steel Woven Wire Mesh DISCS description:
|
Type:
|
Mesh discs/Leaf disc filters/Filter discs/Formed filters
|
|
Filter media:
|
5-heddle atlas weave, Sintered wire mesh, Plain dutch weave, Reversed dutch twilled weave, Dutch twilled weave, Reversed optimized dutch weave, Optimized dutch weave, Reversed plain dutch weave, Porometric weave, Square Weave, Volumetric weave
|
|
Application:
|
Exhaust gas filtration,Beverage filtration,Coolant filtration ,Vegetable oil filtration ,Process water filtration,Sugar filtration,Stirling technology,Polymer filtration
|
|
Opening/Aperture
|
Filter Finess:＞5um
|
|
Quality
|
High-grade,DIN 9044 Germany
|
|
Filter Diameter
|
2 mm to 5,000 mm
|
Rimmed Stainless Steel Woven Wire Mesh DISCS design in different Mesh count:
|
opening(mm)
|
wire(mm)
|
|
Mesh
|
opening(mm)
|
wire(mm)
|
|
|
500
|
0.025
|
0.025
|
|
36
|
0.50
|
0.20
|
|
400
|
0.0335
|
0.030
|
|
31
|
0.50
|
0.32
|
|
400
|
0.039
|
0.025
|
|
25
|
0.63
|
0.40
|
|
325
|
0.042
|
0.036
|
|
24
|
0.71
|
0.355
|
|
318
|
0.05
|
0.03
|
|
23
|
0.80
|
0.32
|
|
280
|
0.05
|
0.040
|
|
20
|
0.80
|
0.50
|
|
250
|
0.063
|
0.040
|
|
19
|
1.00
|
0.30
|
|
200
|
0.074
|
0.053
|
|
17
|
1.00
|
0.50
|
|
174
|
0.090
|
0.056
|
|
16
|
1.00
|
0.63
|
|
156
|
0.10
|
0.063
|
|
15
|
1.25
|
0.4
|
|
124
|
0.125
|
0.080
|
|
12
|
1.6
|
0.5
|
|
101
|
0.14
|
0.112
|
|
10
|
2
|
0.56
|
|
98
|
0.16
|
0.10
|
|
8
|
2.48
|
0.7
|
|
78
|
0.20
|
0.125
|
|
6
|
3
|
1
|
|
62
|
0.25
|
0.16
|
|
4
|
5
|
1
|
|
49
|
0.315
|
0.20
|
|
3
|
8
|
1.6
|
|
39
|
0.40
|
0.25
|
|
2
|
10
|
2
|
Rimmed Stainless Steel Woven Wire Mesh DISCS good advantages:
1. Design your need shape
2. supply same as your required hole size
3. make your use size(diamension)
4. surface clean and smooth
5. use long time
6. clean very easy
7. packing as your need way
8. easy to store
Rimmed Stainless Steel Woven Wire Mesh DISCS packing way:
1. In carton
2. In strong bag
3. In strong pallet
4. In strong wooden box
5. Your deen way
Rimmed Stainless Steel Woven Wire Mesh DISCS uses:
- Exhaust gas filtration,
- Beverage filtration,
- Coolant filtration ,
- Vegetable oil filtration ,
- Process water filtration,
- Sugar filtration,
- Stirling technology,
- Polymer filtration

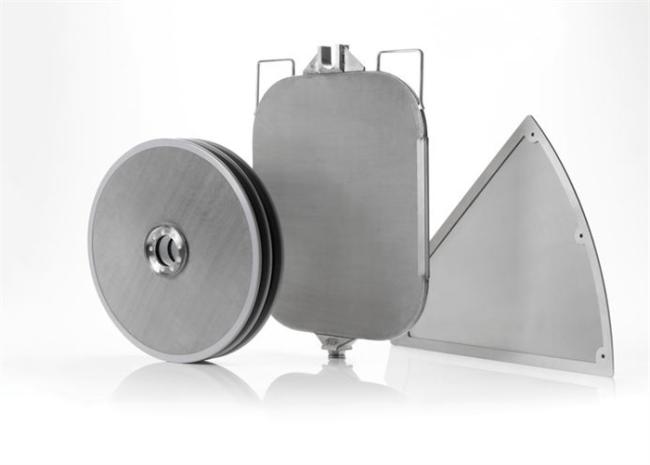

Rimmed Stainless Steel Woven Wire Mesh DISCS different shape:
Type:01 Type:02

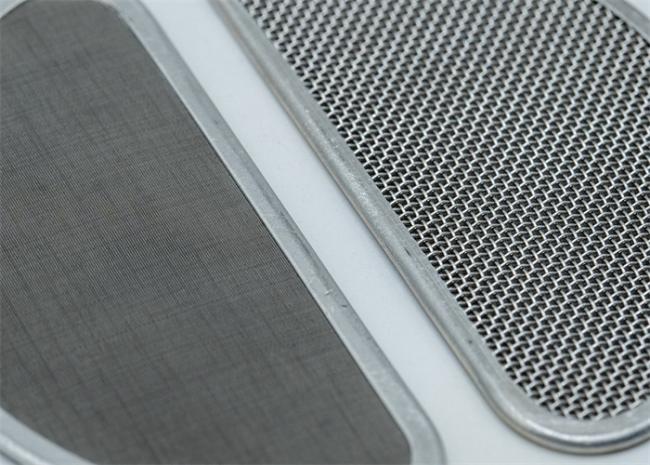

Show our Rimmed Stainless Steel Woven Wire Mesh DISCS product pictures for reference:
