High Strength Offshore Oil Gas Pipeline Reinforcement Wire Mesh Roll 700mm-1100mm
High Strength Offshore Oil And Gas Pipeline Reinforcement Wire Mesh
Product Description
Oil and gas pipeline reinforcement wire mesh is manufactured by welding a series of parallel longitudinal
wires to transverse wire to from rectangular openings. The longitudinal wires shall be crimped or not crimped.
Typical wire diameters from 1.8mm to 3.0mm are used in this application depending upon the thickness of the
concrete coating and the diameter of the pipe. The longitudinal wires are corrugated specially during the process
of mesh production in order to accelerate the holding capacity of the concrete during the coating process.
| Name | High Strength Offshore Oil And Gas Pipeline Reinforcement Wire Mesh |
| Material | Galvanized wire |
| Wire diameter | 2.0-2.7mm |
| Width | 190.5mm |
| Technique | Welded |
| Mesh Hole Size | 25.4/50.8mm x 67mm |
| Length per roll | 140m, 280m |
| Hardness | 485-650N/mm2 |
| Roll Diameter | 700mm-1100mm |
Product Applications
It's normally used for the reinforcement on concrete weight coating of offshore oil and gas pipeline, popular
in theworld marine construction industry. It is applicable for the compression and impingement coating process.
The line wires are deeply crimped to facilitate the concrete applications.
Product Features
1. High tensile strength
2. Anti-corrosion, anti-rust
3. Exceptional continuity and uniformity
4. High degree of flexibility
5. Durable and long service life.
Product Specifications
| Wire Dia. | Mesh | Width | Length |
| 2.0mm/2.0mm | 25.4/50.8mm x 67mm | 190.5mm | 140m, 280m |
| 2.0mm/2.2mm | 25.4/50.8mm x 67mm | 190.5mm | 140m, 280m |
| 2.0mm/2.4mm | 25.4/50.8mm x 67mm | 190.5mm | 140m, 280m |
| 2.0mm/2.7mm | 25.4/50.8mm x 67mm | 190.5mm | 140m, 280m |
| Products can be customized according to customers' requirements. | |||

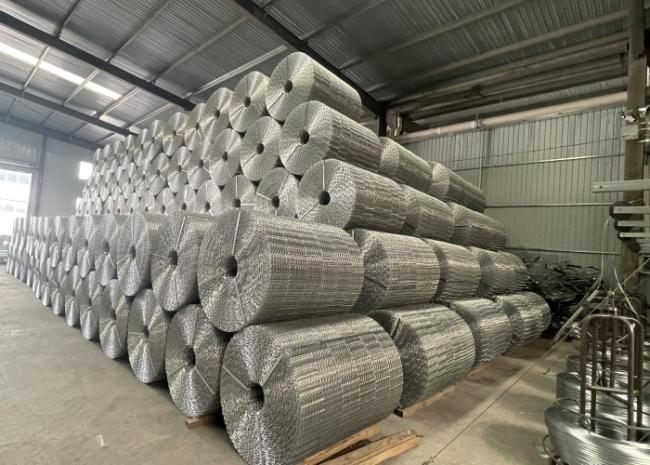

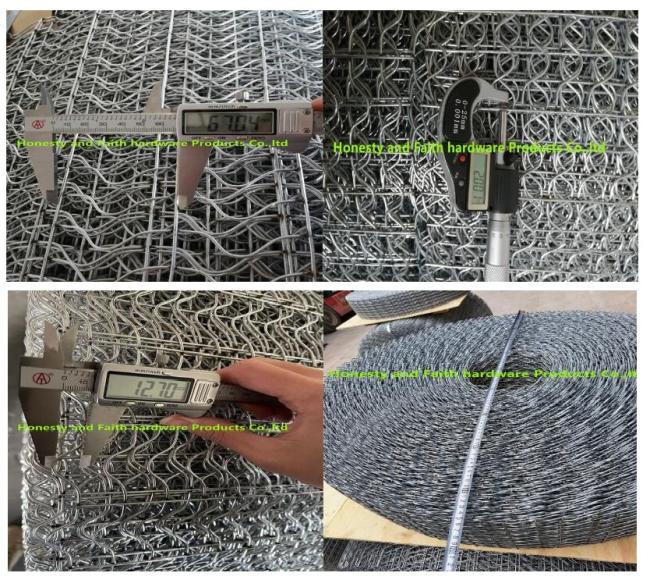

Product show
