1m 1.2m Width Galvanized Walkway Floor Gratings High Load Capacity
Price:
USD15.55~USD21.66
MOQ:
120 Square Meters
Delivery Time:
According to order quantity
Brand:
H&F
Product Description

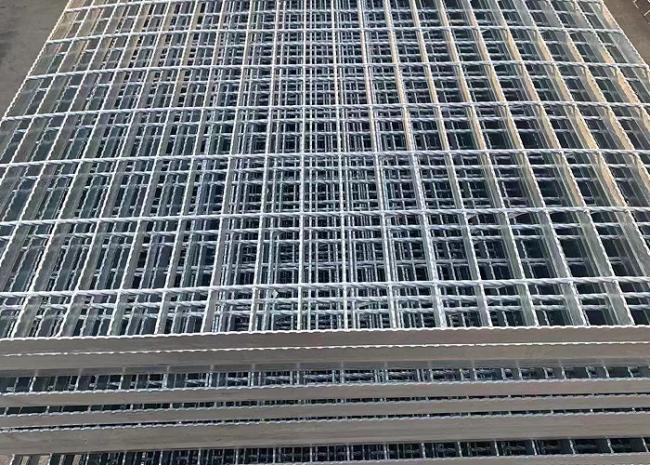

High Load Capacity 1m 1.2m Width Galvanized Walkway Floor Gratings
Product Description

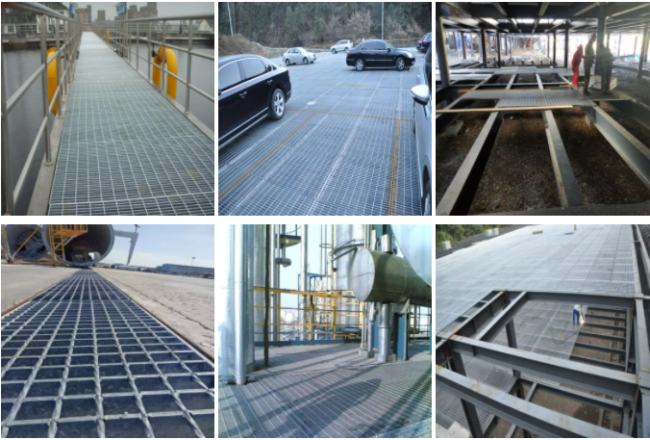

Walkway floor gratings are widely used in the oil and gas industry, petro-chemical industry, mining industry and in
power stations. When there's platform flooring has to be changed frequently, press welded grating is a good choice.
|
|
|
| Material | Q195 |
| Technique | Press Welded, Manual Welded |
| Bearing Bar Pitch | 25, 30, 34, 40mm, etc |
| Cross Bar Pitch | 30, 50, 76, 100mm, etc |
| Bearing Bar Thickness | 3-80mm |
| Bearing Bar Width | 25-150mm |
| Surface Treatment | Galvanized |
| Colour | Silver |

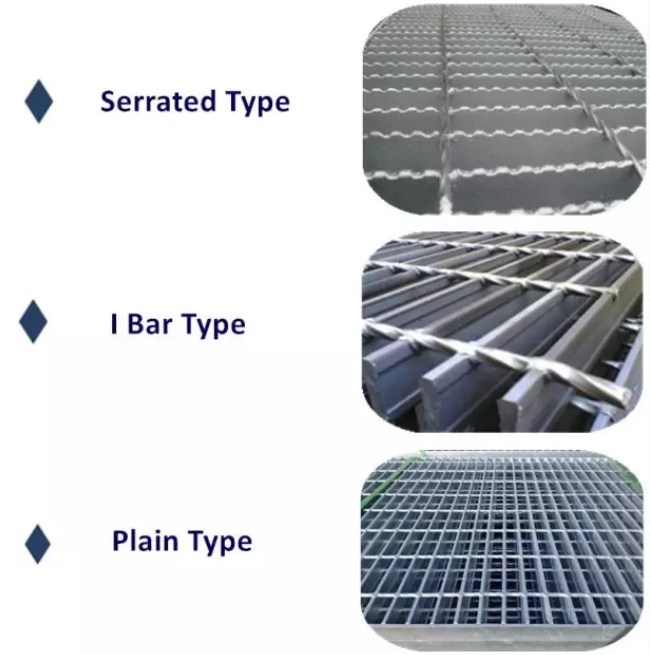

| Style | Serrated, Flat |
Common Product Specifications(In mm)
| Bearing bar pitch | Cross-bar Pitch | Specification of bearing bar (width×thickness) | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
| 60 | 50 | G203/60/50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
| Bearing bar pitch | Cross-bar Pitch | Specification of bearing bar (width×thickness) | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
Product Advantages
1. Durable
2. High Load-Bearing Capacity
3. Improved Safety
4. Maintenance Free
5. Long Lifespan
6. Aesthetics
7.Easy Installation
Product show

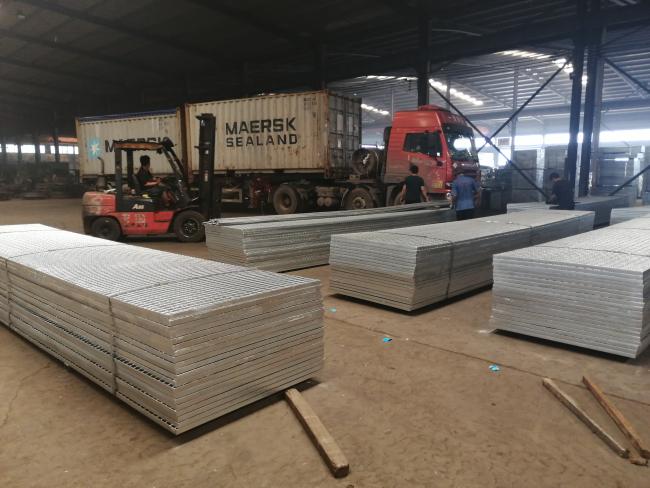

Packing
