2mm Diameter Stainless Steel Wire Rope Mesh For Stairs Protection Fence
2mm Rope diameter Stainless Steel Wire Rope Mesh for stairs protection fence
Stainless Steel Wire Rope Mesh Description:
Stainless Steel Wire Rope Mesh is choose good quality stainless steel wire rope.
Made in standard hole size can be in small hole,middle hole and big hole.
Width range and length range can desgin and make same as client's project need.
Anti-rust and anti-resistance,high tensile strength,which can for stair safety protect use.
Stainless Steel Wire Rope Mesh Specification list:
|
Product Name
|
Stainless Steel Wire Rope Mesh
|
|||
|
Type
|
wire rope mesh
|
|||
|
Kind
|
Ferruled kind and Knotted Kind
|
|||
|
Material
|
SS304,SS304L,SS316,SS316L etc
|
|||
| Rope diameter | 1.0mm~5.0mm or custom | |||
| Hole size | 20mm-150mm | |||
| Mesh shape | Diamond shape | |||
| Features | Anti-rust and tightly woven | |||
| Surface | bright and smooth | |||
| Width range | 0.5m~20m | |||
| Length range | 5m~80m | |||
| Sample | Free sample can test | |||
| Use time | 35years | |||
Stainless Steel Wire Rope Mesh normal make specification:
|
Rope Diameter
(mm) |
Mesh Diamond Size
(mm, MW x MH) |
Normal Break Strength (lbs.)
|
|
|
Rope φ3.0mm, and 4.0mm, etc
|
3.0mm
|
120 x 208
|
1600
|
|
3.0mm
|
102 x 177
|
1600
|
|
|
3.0mm
|
90 x 156
|
1600
|
|
|
3.0mm
|
76 x 132
|
1600
|
|
|
3.0mm
|
51 x 88
|
1600
|
|
|
Rope φ1.2mm, 1.5mm, 2.0mm and 2.5mm
|
2.5mm
|
102 x 177
|
920
|
|
2.5mm
|
90 x 156
|
920
|
|
|
2.5mm
|
76 x 132
|
920
|
|
|
2.5mm
|
60 x 104
|
920
|
|
|
2.5mm
|
51 x 88
|
920
|
|
|
2.0mm
|
76 x 132
|
676
|
|
|
2.0mm
|
60 x 104
|
676
|
|
|
2.0mm
|
51 x 88
|
676
|
|
|
2.0mm
|
38 x 66
|
676
|
|
|
1.5mm
|
76 x 132
|
480
|
|
|
1.5mm
|
51 x 88
|
480
|
|
|
1.5mm
|
38 x 66
|
480
|
|
|
1.5mm
|
30 x 52
|
480
|
|
|
1.5mm
|
25 x 44
|
480
|
|
|
1.2mm
|
38 x 66
|
270
|
|
|
1.2mm
|
30 x 52
|
270
|
|
|
1.2mm
|
25 x 44
|
270
|
|
|
1.2mm
|
20 x 35
|
270
|
Stainless Steel Wire Rope Mesh can choose different material:

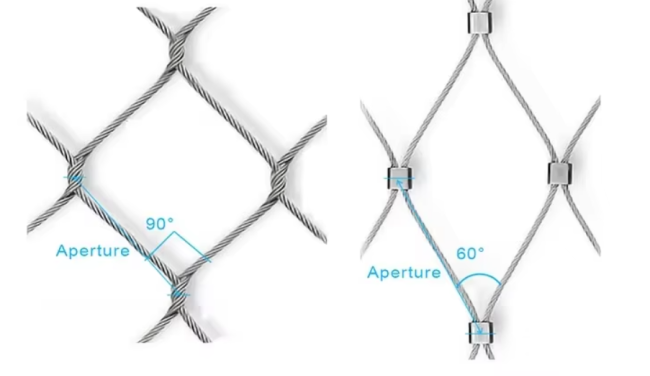

Stainless Steel Wire Rope Mesh normal export 2kinds for choice:
Knotted Kind Ferruled kind
Stainless Steel Wire Rope Mesh Good features:
1.High Safety
2.Transparency
3.Anti-corrosion and Anti-rust
4.Lightweight and good flexibility
5.Environment protection
6.Strong and durable structure
7.Easy to clean and disinfect
8.Good perspective
Stainless Steel Wire Rope Mesh packing way:
- Wrapped with protect film
- Load in Carton/in pallet/in wooden box
- As client need same way
Stainless Steel Wire Rope Mesh widely uses:

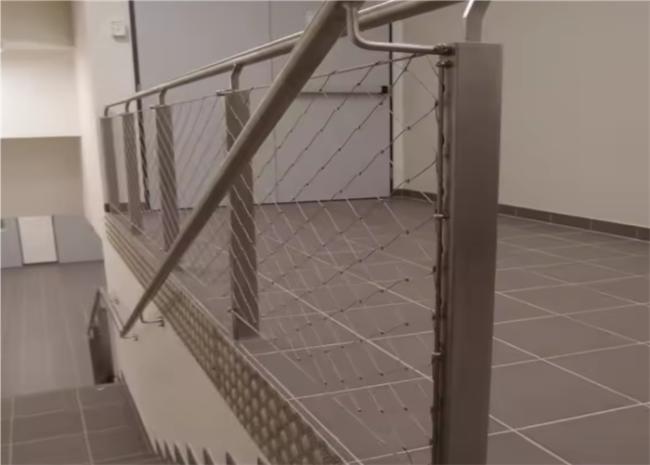

- stair protection
- zoo,bird net
- greenhouse
- airport
- park
- garden
- plant protect
- farm fencing
- decoration in hall
- green wall series

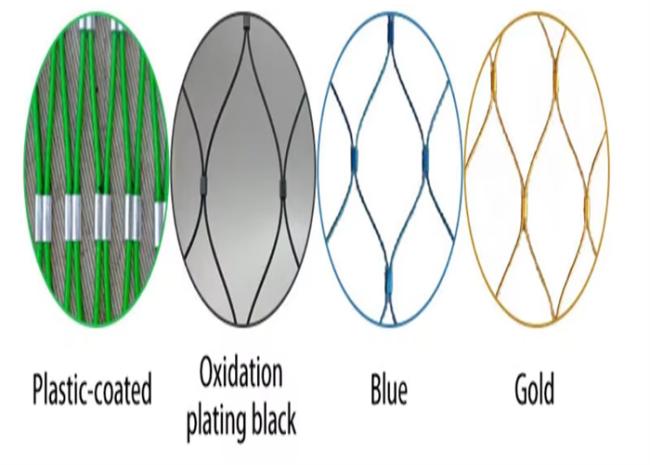

Show our Stainless Steel Wire Rope Mesh different colors pictures for reference:
