AISI316 50mm*50mm Hole Stainless Steel Wire Rope Mesh For Helipad Protection
AISI316 50mm*50mm hole Stainless Steel Wire Rope Mesh For helipad protection
Stainless Steel Wire Rope Mesh Description:
Stainless Steel Wire Rope Mesh is made of stainless steel rope.Choose material in AISI 316.
The rope structure have 7 x 7 or 7 x 19 accord to clients' required.
Stainless Steel Wire Rope Mesh make Ferrule Type,which is strong contact and woven.The hole shape in
diamond shape can beautiful surface.High grade quality and easy install widely for helipad protection.
Stainless Steel Wire Rope Mesh Specification list:
|
Product Name
|
Stainless Steel Wire Rope Mesh
|
|||
|
Type
|
Rope mesh type
|
|||
|
Kind
|
Ferruled kind
|
|||
|
Material
|
AISI316,SS316L
|
|||
| Rope diameter | 2.5mm-4.5mm etc | |||
| Hole size | 50mm*50mm or custom | |||
| Hole shape | Diamond | |||
| Advantages | High grade quality,strong tensile,Easy install | |||
| Width | 1m,1.2m,1.5m,1.8m,2m etc | |||
| Structure | 7*7 rope or 7*19 rope | |||
| Length | 1m,1.2m,1.5m,2m,2.5m or custom | |||
| Sample | Sample can supply | |||
| Packing way | In wooden case | |||
Stainless Steel Wire Rope Mesh use the wire rope diameter kinds:
Stainless Steel Wire Rope Mesh can choose different material for use:

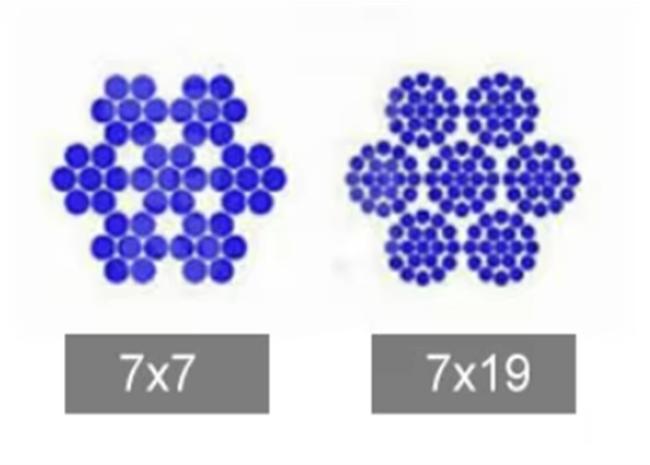

Stainless Steel Wire Rope Mesh normal use wire rope structure:
Normal our wire ropestructure7*7 and 7*19

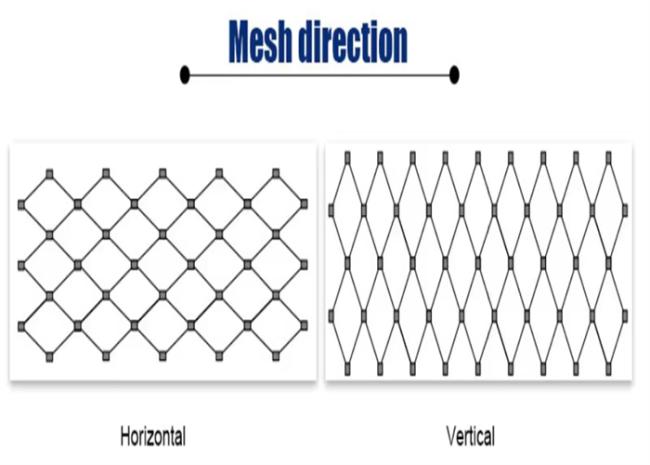

Stainless Steel Wire Rope Mesh Normal export mesh direction:

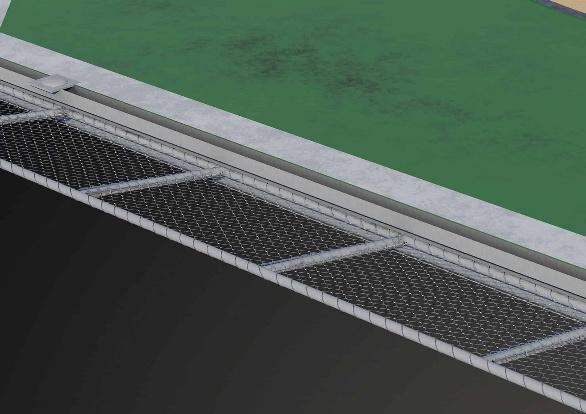

Stainless Steel Wire Rope Mesh install details:
Stainless Steel Wire Rope Mesh Good Features:
- New and high grade material
- Rope diameter standard
- Hole size same and Uniform
- Strong woven and tightly
- Design samewidth and length use
- Easy install
- Fast install
- Long time use
Stainless Steel Wire Rope Mesh widely uses:
*Helipad protection
*Helideck safety net
*Zoo
*Plant
*Stairs
*Walkway
*Hotel
*Library
*Museum
*Bridge
*Garden
*Airport
*Bag protect

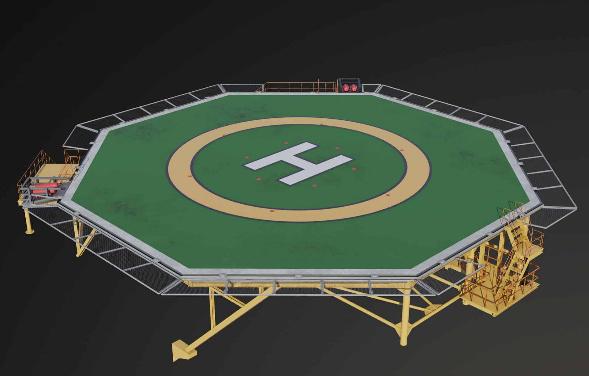

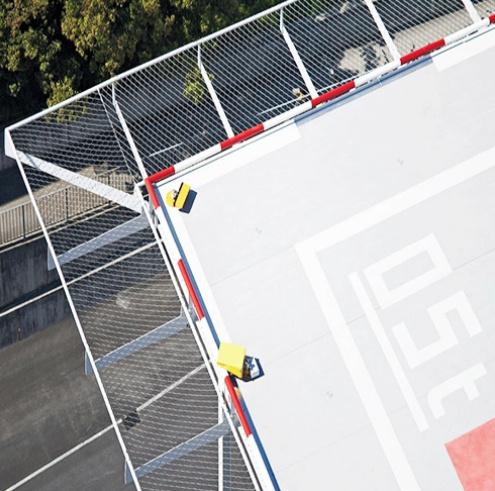

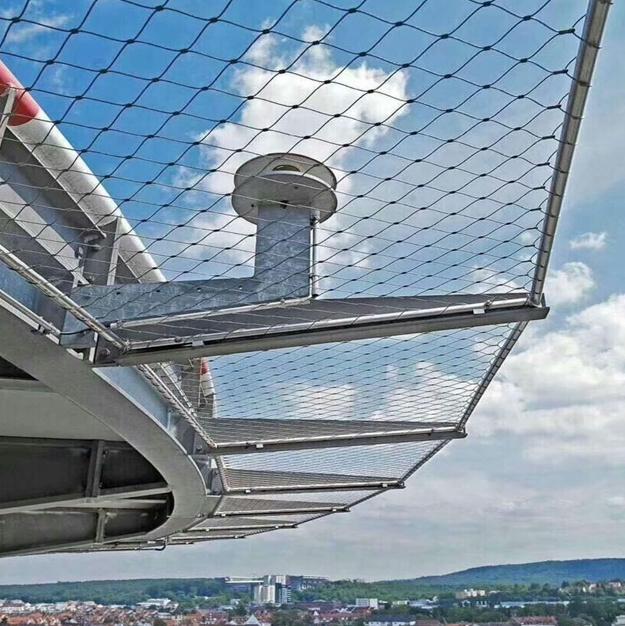

Show our Stainless Steel Wire Rope Mesh pictures for reference:
