8Lines Wire Hot Dipped Galvanized Steel Pipe Winding Mesh For Oil Pipeline
8Lines wire hot dipped galvanized steel pipe winding mesh For oil Pipeline
Hot dipped galvanized steel pipe winding mesh Description:
Hot dipped galvanized steel pipe winding mesh also called Reinforced Wire Mesh.
It use good hot dipped galvanized wire.Surface in uniform and heavy zinc coated,which can make
the mesh anti-rust during shipping and use.
It is welded in standard hole size:25.4mm*67mm.Our hole size in strong welded point design,so it
can use the mesh long time and high tensile strength.So widely use for oil and gas pipeline projects.
Hot dipped galvanized steel pipe winding mesh specification list:
| Product Name | Hot dipped galvanized steel pipe winding mesh |
| Material | Hot dipped galvanized wire |
| Wire diameter | 2.0mm-2.7mm or custom |
| Hole size | 25.4mm x 67mm |
| Surface treatment | hot dipped galvanized |
| Zinc coated | 70gm²~300g / m² or custom |
| Middle line wire pitch | 25.4 mm |
| Cross wire pitch | 67 mm or 92.4 mm |
|
Both sides |
25.4 mm or 50.8 mm |
| Line wire quantity | 6lines, 8lines or 10lines |
| Exposed Wire Edge | ≤ 2.5 mm |
| Hardness range | 485N/mm2~650N/mm2 |
| Roll Diameter | 700mm-1150mm |
| Width dimensions | 190.5mm |
| Length dimensions | 140m,280m or custom |
| Sample | Supply free sample to test |
Hot dipped galvanized steel pipe winding mesh export specification details:
| Wire Dia. | Mesh | Width | Length |
| 2.0mm/2.0mm | 25.4mm x 67mm | 190.5mm | 140m, 280m |
| 2.0mm/2.2mm | 25.4mm x 67mm | 190.5mm | 140m, 280m |
| 2.0mm/2.4mm | 25.4mm x 67mm | 190.5mm | 140m, 280m |
| 2.0mm/2.7mm | 25.4mm x 67mm | 190.5mm | 140m, 280m |

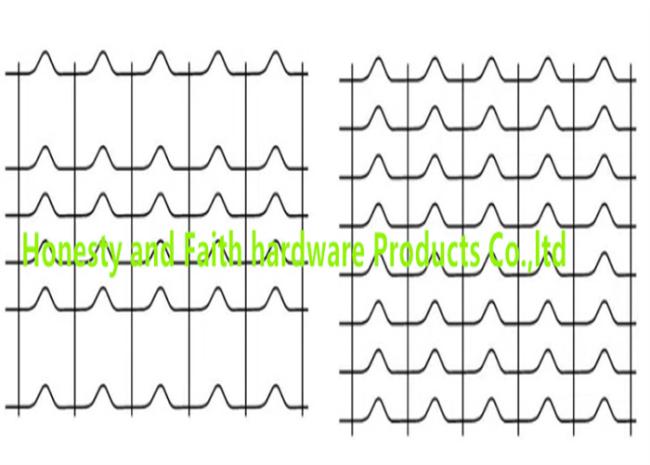

Hot dipped galvanized steel pipe winding mesh export 8lines wire and 6lines wire:
6lines wire 8lines wire
Hot dipped galvanized steel pipe winding mesh Good Advantages:
- High grade quality
- Standard and uniform hole size
- Strong welded
- Standard width
- Different length can design and custom
- Surface bright and smooth
- Strong tensile strength
- Anti-rust
- Anti-corrosion
- Anti-water
- Long time use
- Install easy and fast
- Strong packing way
Hot dipped galvanized steel pipe winding mesh install and use details:
Hot dipped galvanized steel pipe winding mesh widely uses:
- River Bottom Gas & Oil Pipeline
- Everglades Gas Pipeline
- Subsea Gas & Oil Pipeline
- Water and Wastewater Pipeline
- Chemical Processing Pipeline

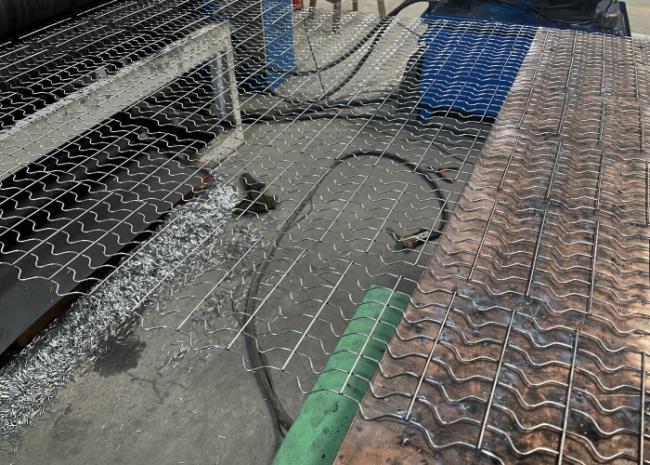

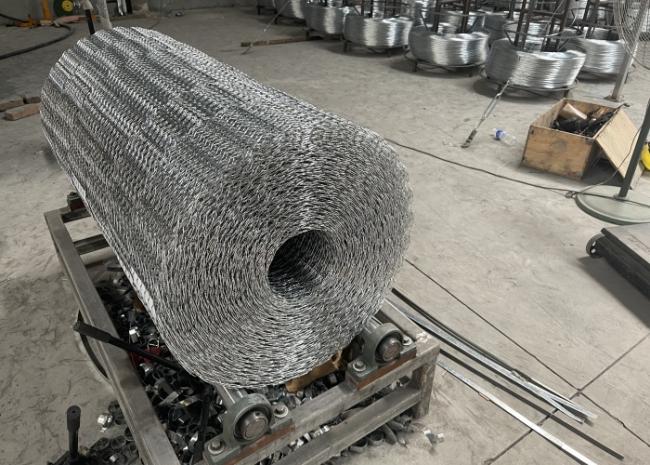

Show our Hot dipped galvanized steel pipe winding mesh product pictures:
