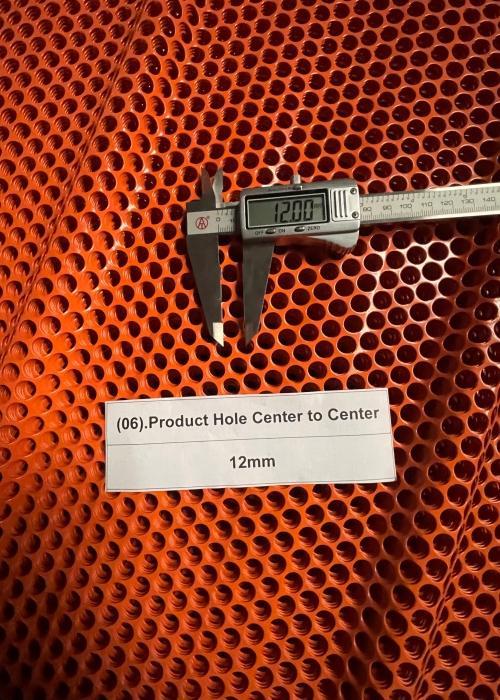

12mm Center to Center Round Hole Orange Color RAL2017 Safety Screen for highway
12mm Center to Center Round Hole Orange Color RAL2017 Safety Screen for highway
Safety Screen Description:
Safety Screen also called safety panel.
It is choose export standard high grade quality Galvanized steel sheet,through perforated and cut in different
width size and length size.Form in 5peaks effect can achieve the outer strong wind, the inner weak wind,
the outer small wind, and the inner sidewithout the wind, thereby preventing the dust from flying.
Strong quality and beautiful,Widely use for safety production area.
Safety Screen Specification list:
|
Material
|
Galvanized steel sheet
|
|
Color
|
Orange Color RAL2017,Green Color,White color,Blue color,
Yellow color,Blue color etc |
| Type | perforated metal |
| Peak of Height | 25mm-70mm or custom |
| Plate Thickness | 0.8mm-1.5mm etc |
| Width | 940mm or custom |
|
Length
|
Max 11m or custom
|
|
Surface Treatment
|
Powder Coating
|
| Features | Smooth surface,beautiful color,Long time use |
| Advantage | strong Anti-rust,anti-corrosion |
| Sample | Free Sample Can Supply to you |
Safety Screen have 4 types of Peak Details List:
| Type | Forming width | Peak height | Length | Sheet thickness |
| Single-peak(monomer) | 250-500mm | 50-100mm | 0.5-5.8m | 0.5-1.5mm |
| Bimodal (two-body) | 400-600mm | 50-100mm | 0.5-11m | 0.5-1.5mm |
| Three-peak(triplets) | 810-910mm | 50-80mm | 0.5-11m | 0.5-1.5mm |
| Five-Peak | 940mm | 25-40mm | 0.5-11m | 0.5-1.5mm |
| Material | Stainless steel | Aluminum | Galavanized steel | Carbon steel |
Safety Screen Production process details:
1. Shear bending
2. Punching
3. Molding
4. Cleaning
5. Electrostatic spraying
6. Package
Safety Screen Advantages:
- New material sheet
- Standard thickness
- Standard width and length
- Uniform Hole size
- Surface smooth
- Beautiful colors can choose
- Strong Anti-UV
- Anti-Rust
- Anti-corrosion
- High tensile strength
- Long use time
- Strong export package way
- Suitable for shipping
Safety Screen have other many kinds of colors for choose:
Safety Screen Packing way:
- In strong Pallet:50-100pcs per pallet;
- In strong wooden box:100-150pcs per wooden case.
- Or as client's required
Safety Screen widely Application:
*coal mine, coking factory and wash coal factory.
* Port, dock storing field and kinds of material field.
* Railway, highway and Garden,sport etc.
*coal carbon transshipment station storing field.
*Storing coal field in the industry of power station.
* Steel iron, building material and cement industry other outdoor material field.

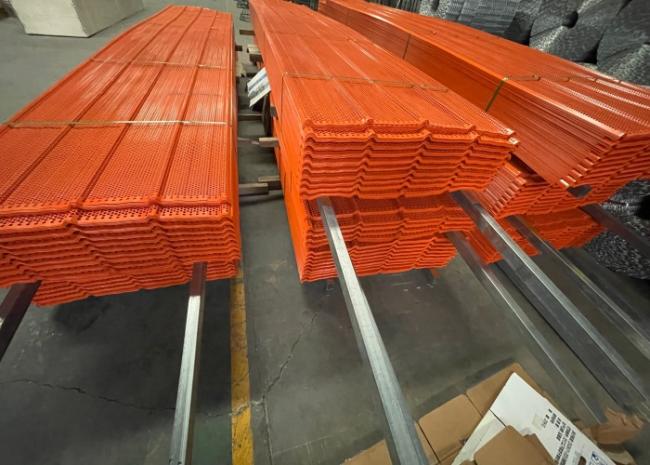

Show our product details picture for reference:
