2mm thick Flattened type decoration Expanded Metal Wire Mesh
2mm thick Flattened decoration Expanded Metal Wire Mesh
Flattened expanded metal mesh information:
Flattened expanded metal mesh is belong to expanded metal mesh.It is through the flat treatment,then
make the expanded metal mesh surface is very flat,smotth.Easy install,use and ship.So the flattened
expanded metal mesh are widely use in diffetent industries,like protect fence,decorative,construction,
filter,support etc.
Flattened expanded metal mesh specification list:
|
Sheet thickness (mm)
|
Opening in with (mm)
|
Opening in length (mm)
|
Weight (kg/sqm)
|
|
0.5
|
2.5
|
4.5
|
1.8
|
|
0.5
|
10
|
25
|
0.73
|
|
0.6
|
10
|
25
|
1
|
|
0.8
|
10
|
25
|
1.25
|
|
1
|
15
|
40
|
1.85
|
|
1.2
|
10
|
25
|
2.21
|
|
1.5
|
15
|
40
|
2.77
|
|
2
|
18
|
50
|
3.69
|
|
3
|
40
|
80
|
5
|
Flattened expanded metal mesh punching:
We have more than 20 sets of the Machine for the Mesh in my workshop,and the opening sizes we can do
from 1mm-100mm,and the Thickness of the material can be 0.2-10mm,we have different mould for your
choose.
Flattened expanded metal mesh term:
- SWD (Short Way of the Diamond) is the distance from the middle of the bond on one side to the middle
of the bond on the opposite side. - LWD (Long Way of the Diamond) is the distance across the largest dimension of the diamond measured
halfway between the diamonds. - SWO (Short Way of the Opening) is the width of the opening of the shortest side of the diamond. SWO
does not include the strand width, where SWD (Short Way of the Diamond) does. - LWO (Long Way of the Opening) is the length of the opening of the longest side of the diamond. LWO
does not include the strand width, where LWD (Long Way of the Diamond) does. - Strand and Bond Expanded metal is composed of strands and bonds. Strands form the sides of the
expanded metal openings. Bonds are where the strands intersect. In other words, the bond is where
each diamond shaped opening is connected with the next opening. - Thickness is the measurement from the top surface to bottom surface of the expanded metal piece.
- Expanded metal Roll: that the specific length and width of the wound into the roll of steel mesh.
- Expanded metal sheet: The expanded metal that show specific length and width.
Flattened expanded metal mesh characteristic:
| 1 |
High Quality Material; |
| 2 |
Smooth,Clean,Bright Surface; |
| 3 | Anti-Rust,Anti-Corrosion; |
| 4 | Beautiful Appearance. |
| 5 | Uniform Hole Size. |
| 6 | Easy Install and use. |
| 7 | Strong and Durable |
| 8 | Long use life. |
Flattened expanded metal mesh how to ship to you:
| Ways of shipment |
Shipping time |
Destination | Costs | Pick up or not |
| By Sea | 20-35days | Nearest Sea Port | The lowest costs | Pick up at seaport warehouse |
| By Air | 7-15days | Nearest Air Port | Higher costs than by sea | Pick up at Airport warehouse |
|
By Express |
3-10days | Door to Door | The highest costs |
No need to pick up (Directly send to your hand) |
Our Service for you:
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the screen, training how to maximize the use time.
* Engineers available to service machinery overseas.

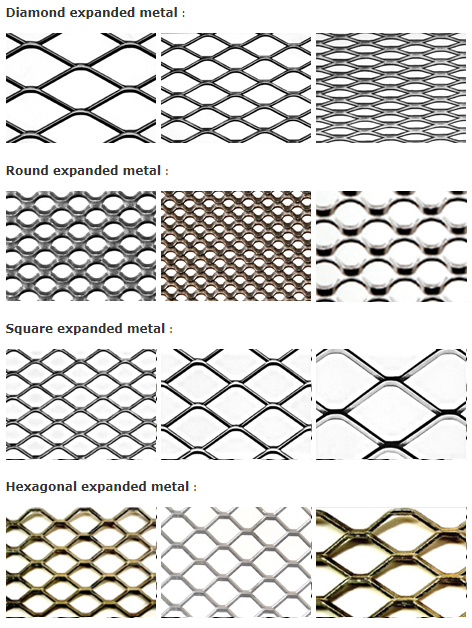

Show our Flattened Expanded metal mesh Product pictures as follows:
