SS316l standard hole Reverse Dutch stainless steel Weave Wire Mesh
SS316l standard hole Reverse Dutch stainless steel Weave Wire Mesh
Stainless steel Weave Wire Mesh Specification list:
| Mesh Count Warp x Weft |
Wire Dia mm Warp x Weft |
Wire Dia inch Warp x Weft |
Open Area % |
Micron Rating |
| 63 x 18 | 0.4000 x 0.6000 | 0.0157 x 0.0236 | 60 | 220 |
| 107 x 20 | 0.2400 x 0.6000 | 0.0094 x 0.0236 | 58 | 210 |
| 170 x 40 | 0.2000 x 0.4500 | 0.0079 x 0.0177 | 58 | 130 |
| 132 x 32 | 0.2000 x 0.4000 | 0.0079 x 0.0157 | 55 | 105 |
| 171 x 46 | 0.1500 x 0.3000 | 0.0059 x 0.0118 | 54 | 85 |
| 290 x 75 | 0.0900 x 0.2000 | 0.0035 x 0.0079 | 53 | 55 |
| 615 x 102 | 0.0400 x 0.1600 | 0.0157 x 0.0063 | 41 | 42 |
| 615 x 130 | 0.0400 x 0.1300 | 0.0157 x 0.0051 | 49 | 22 |
| 720 x 150 | 0.0360 x 0.1000 | 0.0014 x 0.0039 | 54 | 17 |
Stainless steel Weave Wire Mesh Weaving Method
This type of woven wire mesh/cloth/fabric is a kind of twilled woven wire product combined with the
Hollander Weave or Dutch weave. This pattern enables a strong wire cloth with super fine filtration.
Compared with common Twill Weave, the Dutch twill allows a thick structure and a fine filter material.
The weft wires and the warp wires intercross two above and two below, inverting the intersections of
the warp wire at an established distance, obtaining a rigid, stable and robust type of wire mesh fabric.
Stainless steel Weave Wire Mesh features:
- mesh surface is smooth
- the hardness is high
- the net is continuous
- the deformation is not high
- the high temperature resistance
- the corrosion resistance
- the flexible mesh
- excellent filtering performance.
Stainless steel Weave Wire Mesh applications:
- plastic woven bags, plastic film, etc.
- aerospace, petroleum, chemical, chemical,fiber, machinery, plastic products, scientific research
and transportation industries. - Automatic belt filter for plastic extruder, plastic melt filter, plastic belt filter
Stainless steel Weave Wire Mesh Advantages:
1. Continuous work, no need stop for work, save time, save labor
2. Applicable in a variety of extruders as filter screen
3. Constant melt pressure to ensure the best quality products
4. Applicable to a variety of materials, such as PP, HDPE, LDPE, PS, etc.
5. Very long service life.
6. Easy to operate.

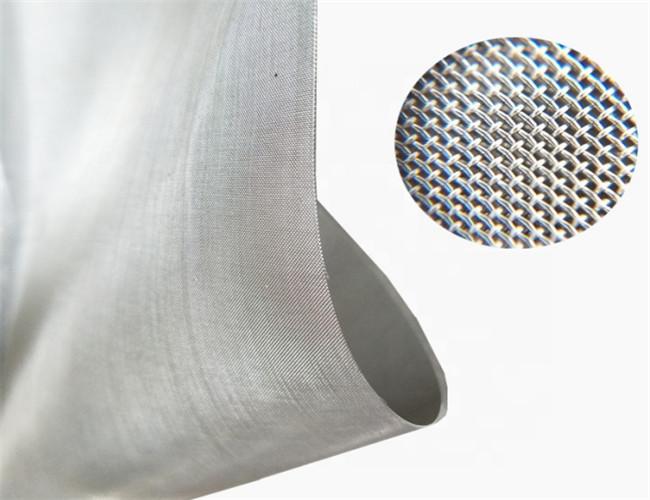

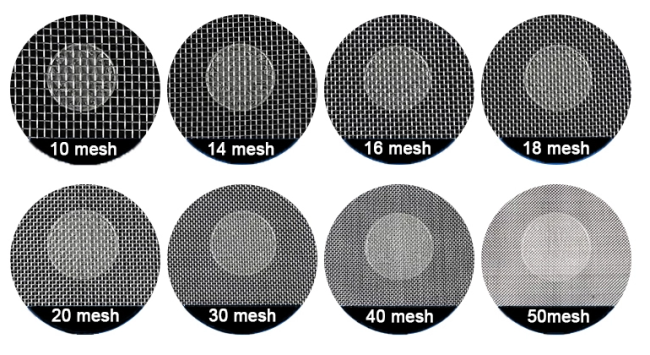

Show our Stainless steel Weave Wire Mesh product pictures for reference:
