Food Grade Sieve use Stainless Steel woven Wire Mesh Screen
Food Grade Sieve use Stainless Steel woven Wire Mesh Screen details list:
| Material | SS302,304,304L,316,316L |
| Type Weaving Patterns | Plain weave,twill weave,dutch weave |
| Wire diameter | 0.005mm-3mm |
| Hole shape | Square hole |
| Surface Color | Bright silver or your need color |
| Application | Special for Food industry |
| Width |
0.5m-3m or custom |
| Length |
1M 1.2M 1.22M 1.4M 1.5M 2M 2.4M 2.5M 2.8M ETC |
| Surface | Flat smooth,clean and bright |
| Sample | free supply the same sample for you |
| Stainless Steel woven Wire Mesh Screen | ||||||
| Mesh/inch | Wire Diameter (mm) |
Aperture (mm) |
Mesh/inch | Wire diameter (mm) |
Aperture (mm) |
|
| 2mesh | 1.80 | 10.90 | 60mesh | 0.15 | 0.273 | |
| 3mesh | 1.60 | 6.866 | 70mesh | 0.14 | 0.223 | |
| 4mesh | 1.20 | 5.15 | 80mesh | 0.12 | 0.198 | |
| 5mesh | 0.91 | 4.17 | 90mesh | 0.11 | 0.172 | |
| 6mesh | 0.80 | 3.433 | 100mesh | 0.10 | 0.154 | |
| 8mesh | 0.60 | 2.575 | 120mesh | 0.08 | 0.132 | |
| 10mesh | 0.55 | 1.990 | 140mesh | 0.07 | 0.111 | |
| 12mesh | 0.50 | 1.616 | 150mesh | 0.065 | 0.104 | |
| 14mesh | 0.45 | 1.362 | 160mesh | 0.065 | 0.094 | |
| 16mesh | 0.40 | 1.188 | 180mesh | 0.053 | 0.088 | |
| 18mesh | 0.35 | 1.060 | 200mesh | 0.053 | 0.074 | |
| 20mesh | 0.30 | 0.970 | 250mesh | 0.04 | 0.061 | |
| 26mesh | 0.28 | 0.696 | 300mesh | 0.035 | 0.049 | |
| 30mesh | 0.25 | 0.596 | 325mesh | 0.03 | 0.048 | |
| 40mesh | 0.21 | 0.425 | 350mesh | 0.03 | 0.042 | |
| 50mesh | 0.19 | 0.318 | 400mesh | 0.025 | 0.0385 | |
| Width of Stainless Steel Wire Mesh: 0.6m-8m | ||||||
Food Grade Sieve use Stainless Steel woven Wire Mesh Screen features:
- Pure stainless steel wire material
- Uniform aperture
- Standard wire diameter and size
- Smooth,clean and bright surface
- Easy cut and use
- Square aperture type
Food Grade Sieve use Stainless Steel woven Wire Mesh Screen usage:
widely used in chemical, petrochemical and oil exploration, transportation, nuclear industry, energy, textile,
aerospace, electronics, food, phamaceutical, paper and other industrial sectors, in certain areas or may not
become an indispensable substituted metal material. In addition, the sub-mesh stainless steel and decorative
and easy to clean and antibacterial properties, in the consumer sector it has been widely used, such as
construction and decoration, kitchen utensils, cutlery, metal and other civil.

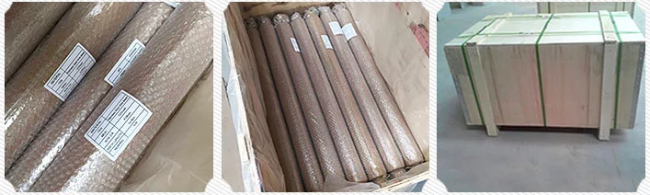

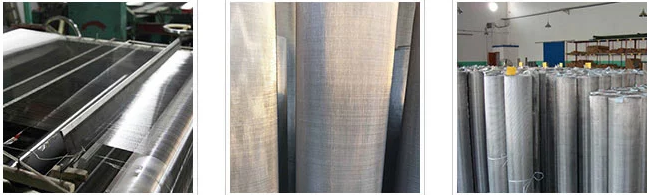

Show our Food Grade Sieve use Stainless Steel woven Wire Mesh Screen product pictures as follows:
