1.22m Square SUS302 Stainless Steel Woven Wire Mesh Cloth
1. Plain weave can be woven up to 400 mesh.
2.Twill weave can be woven from 400 to 635mesh.
3. Dutch weave can be woven up to 3500mesh
Stainless steel wire mesh cloth specification data list:
| Hole shape | square hole |
| Wire diameter | 0.018-2.03mm |
|
Stock size |
1*30m/roll, 1.22*30m/roll, 1.5*30m/roll or customized. |
| Customzied | Other sizes can be customzied as per your requiremnts |
| Sample | free supply |
| Quality Reports | PMI testing video & reports will be provided, to accurance 100% good quality. |
| Mesh/inch | Wire Diameter (mm) |
Aperture (mm) |
Mesh/inch | Wire diameter (mm) |
Aperture (mm) |
|
| 2mesh | 1.80 | 10.90 | 60mesh | 0.15 | 0.273 | |
| 3mesh | 1.60 | 6.866 | 70mesh | 0.14 | 0.223 | |
| 4mesh | 1.20 | 5.15 | 80mesh | 0.12 | 0.198 | |
| 5mesh | 0.91 | 4.17 | 90mesh | 0.11 | 0.172 | |
| 6mesh | 0.80 | 3.433 | 100mesh | 0.10 | 0.154 | |
| 8mesh | 0.60 | 2.575 | 120mesh | 0.08 | 0.132 | |
| 10mesh | 0.55 | 1.990 | 140mesh | 0.07 | 0.111 | |
| 12mesh | 0.50 | 1.616 | 150mesh | 0.065 | 0.104 | |
| 14mesh | 0.45 | 1.362 | 160mesh | 0.065 | 0.094 | |
| 16mesh | 0.40 | 1.188 | 180mesh | 0.053 | 0.088 | |
| 18mesh | 0.35 | 1.060 | 200mesh | 0.053 | 0.074 | |
| 20mesh | 0.30 | 0.970 | 250mesh | 0.04 | 0.061 | |
| 26mesh | 0.28 | 0.696 | 300mesh | 0.035 | 0.049 | |
| 30mesh | 0.25 | 0.596 | 325mesh | 0.03 | 0.048 | |
| 40mesh | 0.21 | 0.425 | 350mesh | 0.03 | 0.042 | |
| 50mesh | 0.19 | 0.318 | 400mesh | 0.025 | 0.0385 |
Stainless steel wire mesh cloth characteristic:
- Pure stainless steel wire material
- Standard wire diameter and size
- Lowest tolerance
- Smooth,clean and bright surface
- Square or Rectangle aperture
- Less rigid than plain weave, especially suitable for deforming
- Strong wire cloth due to ratio of wire diameter and aperture
- It is mostly used for filtration less than 63 μm
- Easy Cut and store
- Long use life
- Strong packing way
- Fast delivery time and ship
Stainless steel wire mesh cloth application:
It applies in the accurate analysis of granularity structures of particle and power materials, and the testing
analysis of solid content in liquid for laboratories, quality control rooms and scientific research departments.
The test sieve is widely used in testing analysis of chemical, pharmaceutical, food, building materials, powder
metallurgy, and material in the processing process of the sewage and waste water from environmental protection.
Stainless steel wire mesh cloth how to ship our product to you:
| Ways of shipment |
Shipping time |
Destination | Costs | Pick up or not |
| By Sea | 20-35days | Nearest Sea Port | The lowest costs | Pick up at seaport warehouse |
| By Air | 7-15days | Nearest Air Port | Higher costs than by sea | Pick up at Airport warehouse |
| By Express | 3-10days | Door to Door | The highest costs |
No need to pick up (Directly send to your hand) |
Each order goods are received our buyers,our after-sales workers will contact buyer in first time.Check
the goods all details and use details.Any meet question,we will do our best help every
buyer solve it,make sure the goods use well.
Trust our good service can make each buyer satisfied.And honest service and high quality service give
buyers bring more business opportunity and service time.

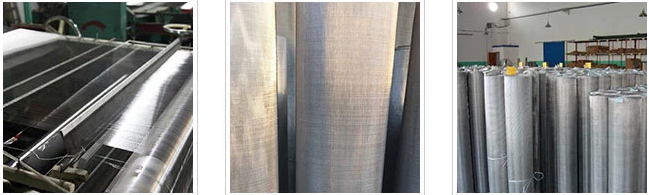

Show our Stainless steel wire mesh cloth product pictures for reference as follows:
