Stainless Steel Wire Rope Mesh Diamond Shaped Hole For Bridge Fencing Use
Safety on bridge wire rope mesh net stainless steel 316grade big diamond hole for fencing use
decorative Wire rope mesh net:
wire rope mesh net made form high quality stainless steel wire rope, with the features of extremely
anti-corrosion and resistant to UV rays, has a long lifespan in the harsh environments. And its largest benefit
is particular resilience and flexibility.Our rope mesh may in knotted,ferrule type, woven square,or square mesh
with cruciate/cross clamps. They are all favored by fashion architects.
Wire rope mesh net application:
1. railing,
2. safety net,
3. green wall,
4. zoo enclosure
5. bridge fence
6. sports ground
7. decorative etc
Wire rope mesh net specification list:
| Cable diameter | Mesh opening size | Nominal break | ||
| inch | mm | inch | mm | lbs. |
| 1/8 | 3.2 | 4x4 | 102x102 | 1600 |
| 1/8 | 3.2 | 3x3 | 76x76 | 1600 |
| 1/8 | 3.2 | 2x2 | 51x51 | 1600 |
| 3/32 | 2.4 | 4x4 | 102x102 | 920 |
| 3/32 | 2.4 | 3x3 | 76x76 | 920 |
| 3/32 | 2.4 | 2x2 | 51x51 | 920 |
| 5/64 | 2.0 | 3x3 | 76x76 | 676 |
| 5/64 | 2.0 | 2x2 | 51x51 | 676 |
| 5/64 | 2.0 | 1-1/2x 1-1/2 | 38x38 | 676 |
| 1/16 | 1.6 | 3x3 | 76x76 | 480 |
| 1/16 | 1.6 | 2x2 | 51x51 | 480 |
| 1/16 | 1.6 | 1-1/2x 1-1/2 | 38x38 | 480 |
| 1/16 | 1.6 | 1x1 | 25.4x25.4 | 480 |
| 3/64 | 1.2 | 1-1/2x 1-1/2 | 38x38 | 270 |
| 3/64 | 1.2 | 1x1 | 25.4x25.4 | 270 |
| 3/64 | 1.2 | 4/5x4/5 | 20x20 | 270 |

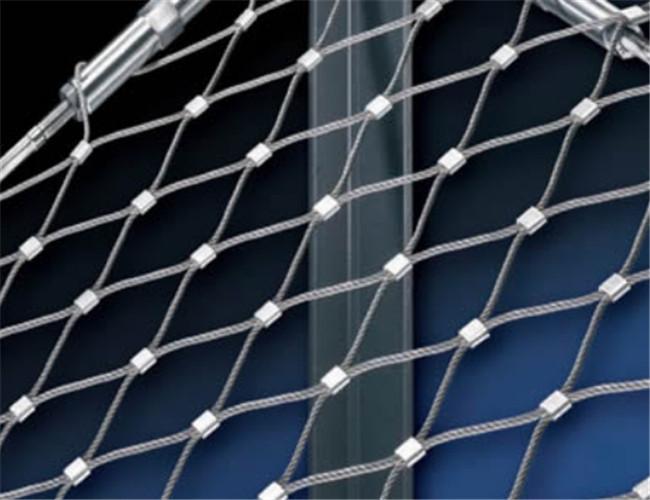

Show our wire rope mesh net product pictures for reference:
