300mm diemater 0.8m length High Pressure Water Filter Stainless Steel Woven Wire Mesh Pipe
300mm diemater 0.8m length High Pressure Water Filter Stainless Steel Woven Wire Mesh Pipe
Stainless steel woven wire mesh pipe description:
Stainless steel woven wire mesh pipe normal made of stainless steel filter mesh.It is made of stainless steel
302, 304, 316, 316L and other materials with high temperature resistant and corrosion resistant.
Stainless steel woven wire mesh pipe design outer dimensions and filtration accuracy can be customized according
to any buyer needs.So It can widely use ifor filtering work in different industries.
Stainless steel woven wire mesh pipe structure:
- single-layer network,
- combined filter film.
- Multi-layer film filter.
Stainless steel woven wire mesh pipe Process Technique:
- Spot welded,
- edge covering
- sintered.
Stainless steel woven wire mesh pipe specification list:
| Mesh | Wire Dia. (MM) | Opening (MM) | Material (AISI) |
| 18meshx18mesh | 0.35 | 1.06 | 304 or316 |
| 20meshx20mesh | 0.40 | 0.87 | 304 or316 |
| 24meshx24mesh | 0.26 | 0.80 | 304 or316 |
| 30meshx30mesh | 0.30 | 0.55 | 304 or316 |
| 35meshx35mesh | 0.17 | 0.56 | 304 or316 |
| 40meshx40mesh | 0.23 | 0.40 | 304 or316 |
| 50meshx50mesh | 0.20 | 0.31 | 304 or316 |
| 60meshx60mesh | 0.15 | 0.27 | 304 or316 |
Stainless steel woven wire mesh pipe material chemical comp.(%)
| SS304 | (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035 |
| SS316 | (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5 |
| SS316L |
(%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0 |
Stainless steelwoven wire mesh pipe outside diameter rabge:
- normal round shape from 2MM to 600MM
- rectangle shape from 20MM to 1400MM
- the special size can make as your required
Stainless steel woven wire mesh pipe high quality feature:
1. wear-resisting
2. heat-resisting
3. acid-resisting
4. corrosion resisting
5. anti-rust
6. easy install and use
7. strong packing
Stainless steel woven wire mesh pipe useages:
1). Catalyst filtration and separation;
2). Filtration of other high temperature gases and liquids.
3). purification of high temperature flue gas in the metallurgical industry;
4) . Filtration of high temperature gas in petrochemical industry, filtration of tail gas in boiling bed of petrochemical plant,
filtration of catalytic cracking slurry;
Our Service:
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the screen, training how to maximize the use time.
* Engineers available to service machinery overseas.

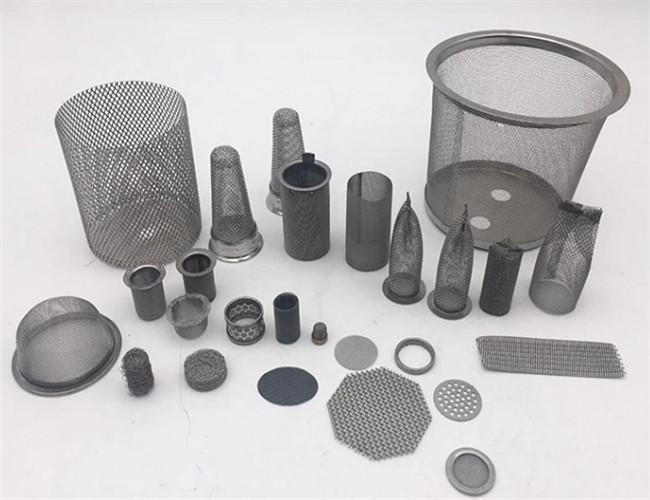

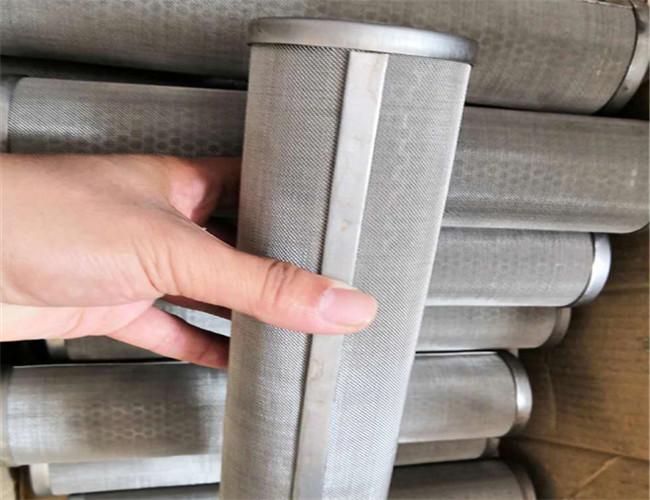

Show our Stainless steel wven wire mesh pipe product pictures for reference as follows:
