Aluminum expanded metal grating description:
Aluminum expanded metal grating is belong to one kind of our export metal mesh
series product.Aluminum expanded metal grating main use high quality aluminum
sheet though cut and stretched treatment,and make different pattern(normal are
diamond,hexagonal and so on.)Aluminum expanded metal grating are widely use
in room,kitchen,office etc.
Aluminum expanded metal grating different types:
- Small expanded type
- Medium expanded type
- Heavy expanded type
- Special custom for you.
Aluminum expanded metal grating details:
| Hole pattern |
Hexagonal,diamond or others |
| Color |
Black,white,silver, bule,green,gray etc. |
| Width | 100mm-2000mm |
| SWM | Max 20mm |
| LWM | Max 50mm |
| Length | 2000mm-4000mm |
| Type | In Sheet Or In Roll |
|
Thickness |
0.5mm,0.8mm,1.0mm, 1.2mm,1.5mm,1.8mm, 2mm,2.5mm,3mm,3.5mm,4mm etc |
| Sheet Thickness (mm) |
SWG (mm) |
LWG (mm) |
Strand Width (mm) |
Width (m) |
Length (m) |
Weight (kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
Aluminum expanded metal grating details:
1. Material: aluminum plate
2. Hole shape: diamond, square, round, triangle and scale -shaped opening.
3. Weaving: punched and stretched, sturdy and durable with elegant appearance.
4. Metal Surface:PVC coated, sprayed, plastic coated, hot dipped galvanized, electro galvanized
Aluminum expanded metal grating good advantages:
1. good material;
2. uniform mesh;
3. durable,easy use;
4. anti-rust;
5. anti-corrosion;
6. Long use life;
Aluminum expanded metal grating surface treatment:
1. Without treatment is ok
2. Anodized (colour can be customized)
3. PVDF
4. Custom for you.
Aluminum expanded metal grating widely useages:
- the civil construction machinery
- handicraft manufacturing
- equipment for cement
- shelves,heavy machinery
- highway guardrail,sports venues fence road green belt protection net
- widely used n including theprotection of machinery equipment
- the grant of protection,craft,high-end loudspeaker enclosures
Our Good and professional service for you:
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the screen, training how to maximize the use time.
* Engineers available to service machinery overseas.

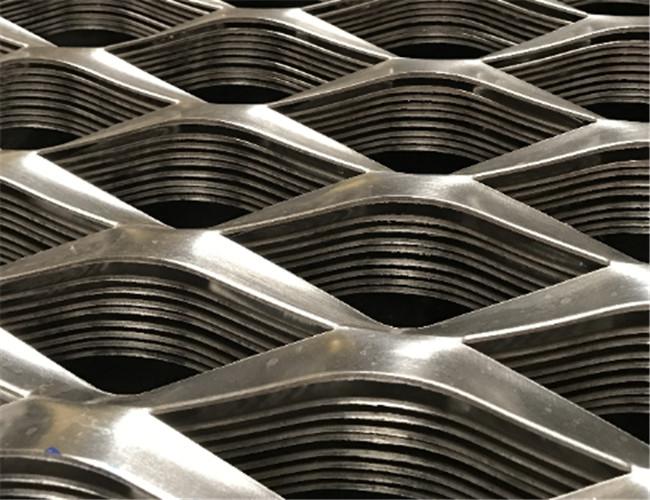

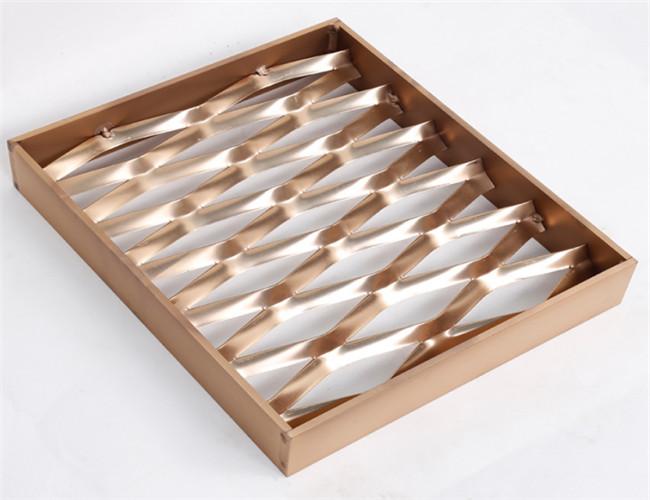

Show our Aluminum expanded metal grating Product pictures as follows:
