Pure 316 Stainless Steel Material Wire Rope Mesh 50m Length As Safety Net
Pure 316 stainless steel material wire rope mesh wire mesh 50m length as Safety Net
Wire rope mesh description:
Wire rope mesh are supplied in two main series:Inter-woven and Ferrule.
It is made from s.s.wire rope in various material type like SUS304,SUS316,SUS316L etc
Normal we make two main strand structures have7 * 7 and 7 * 19 also can custom.
It has provided the mordern architectural decoration and horticulture engineering with a new and stylish
element, which are getting more and more appreciated by designeers and clients all over the world.
Wire rope mesh specification details list:
| Material | SUS304,SUS316,SUS316L etc |
| structures | 7 * 7 and 7 * 19 or custom |
| Rope diameter | 1mm-4mm |
| Mesh Size | 20mm-160mm |
| hole type | diamond |
| width | 1m 1.5m 2m2.5m 3m etc |
| length | 50m or custom |
Wire rope mesh different type can choose:
| Code | Rope Construction | Rope Diameter | Opening Size | Breaking Force | ||
| Inch | mm | Inch | mm | KN | ||
| BR-01 | 7 × 19 | 1/8 | 3.2 | 4.7" × 4.7" | 120 × 120 | 7.38 |
| BR-02 | 7 × 19 | 1/8 | 3.2 | 4" × 4" | 102 × 102 | 7.38 |
| BR-03 | 7 × 19 | 1/8 | 3.2 | 3.6" × 3.6" | 90 × 90 | 7.38 |
| BR-04 | 7 × 19 | 1/8 | 3.2 | 3" × 3" | 76 × 76 | 7.38 |
| BR-05 | 7 × 19 | 1/8 | 3.2 | 2" × 2" | 51 × 51 | 7.38 |
| BR-06 | 7 × 7 | 3/32 | 2.4 | 4" × 4" | 102 × 102 | 4.18 |
| BR-07 | 7 × 7 | 3/32 | 2.4 | 3.6" × 3.6" | 90 × 90 | 4.18 |
| BR-08 | 7 × 7 | 3/32 | 2.4 | 3" × 3" | 76 × 76 | 4.18 |
| BR-09 | 7 × 7 | 3/32 | 2.4 | 2.4" × 2.4" | 60 × 60 | 4.18 |
| BR-10 | 7 × 7 | 3/32 | 2.4 | 2" × 2" | 51 × 51 | 4.18 |
| BR-11 | 7 × 7 | 5/64 | 2 | 3" × 3" | 76 × 76 | 3.17 |
| BR-12 | 7 × 7 | 5/64 | 2 | 2.4" × 2.4" | 60 × 60 | 3.17 |
| BR-13 | 7 × 7 | 5/64 | 2 | 2" × 2" | 51 × 51 | 3.17 |
| BR-14 | 7 × 7 | 5/64 | 2 | 1.5" × 1.5" | 38 × 38 | 3.17 |
| BR-15 | 7 × 7 | 1/16 | 1.6 | 3" × 3" | 76 × 76 | 2.17 |
| BR-16 | 7 × 7 | 1/16 | 1.6 | 2" × 2" | 51 × 51 | 2.17 |
| BR-17 | 7 × 7 | 1/16 | 1.6 | 1.5" × 1.5" | 38 × 38 | 2.17 |
| BR-18 | 7 × 7 | 1/16 | 1.6 | 1.2" × 1.2" | 30 × 30 | 2.17 |
| BR-19 | 7 × 7 | 1/16 | 1.6 | 1" × 1" | 25 × 25 | 2.17 |
| BR-20 | 7 × 7 | 3/64 | 1.2 | 2" × 2" | 51 × 51 | 1.22 |
| BR-21 | 7 × 7 | 3/64 | 1.2 | 1.5" × 1.5" | 38 × 38 | 1.22 |
| BR-22 | 7 × 7 | 3/64 | 1.2 | 1.2" × 1.2" | 30 × 30 | 1.22 |
| BR-23 | 7 × 7 | 3/64 | 1.2 | 1" × 1" | 25 × 25 | 1.22 |
| BR-24 | 7 × 7 | 3/64 | 1.2 | 0.8" × 0.8" | 20 × 20 | 1.22 |

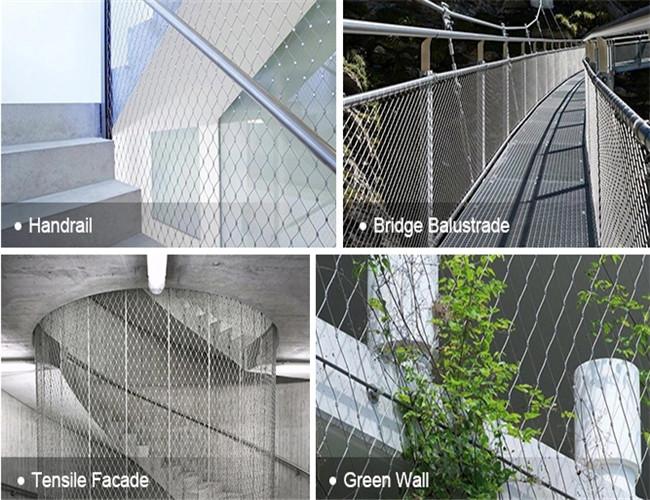

Wire rope mesh application in different areas:
1. Cable Mesh - Excellent Solution to Safety
2. Safety Net - Structural Measure to Prevent Suicide
3. Steel Mesh Balustrade - bridge, stair, balcony, path
4. Helipad Safety Net - Modular Heliport Webbing
5. Aviary Netting - Lightweight, Durable and Long Lasting
6. Cable Zoo Mesh - Solution to Enclosing Most Animals
7. Green Facade - Cable System for Most Climbing Plants

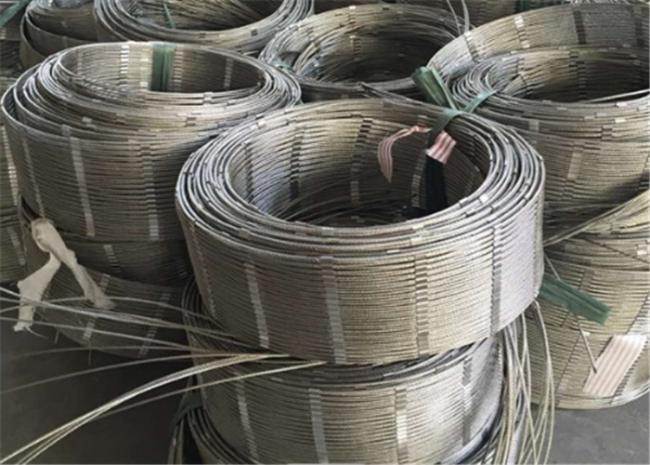

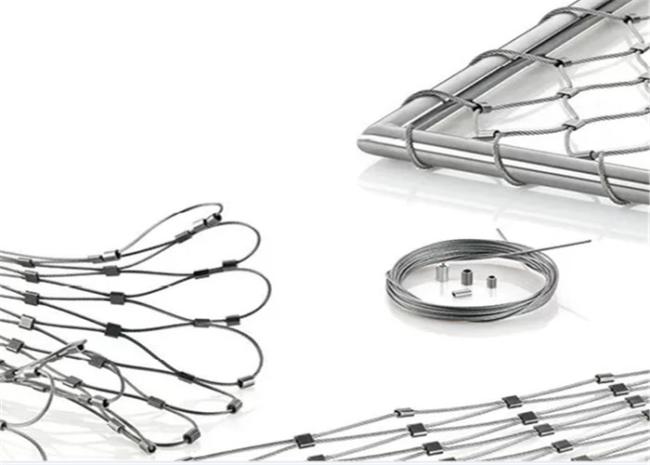

Show our wire rope mesh for reference:
