Superior 316l Aviary Stainless Steel Zoo Mesh 15 Years Long Use Easy Install
Superior 316l stainless steel rope aviary zoo mesh 15years long use easy install
Stainless steel rope aviary zoo mesh:
Stainless steel rope aviary zoo mesh, inter-woven type in particular, is usually used in animal or bird cages,
which is also called zoo mesh. The mesh has strong tensile strength and high flexibility, high transparence
and wide span. stainless steel rope aviary zoo mesh has unreplacable advantages compared with other mesh
products in many aspects like practicability, security, aesthetic property and durability etc.
Flexible Stainless Steel Wire Rope Mesh Net
Stainless steel rope aviary zoo mesh specification details:
Material of the aviary mesh :stainless steel ,304,316 grade
Rope:stainless steel 7 x 7 ,7 x 19,1x19,1x7....
Rope wire diameter :1.5mm,2.0mm,3.0mm,4.0mm etc
Stainless steel rope aviary zoo mesh two kinds:
1. Ferrule cable mesh
Connection: Seamless ferrule
Hole Type:60 degree diamond hole
Cable diametet: 1 ~ 5 mm
Cable structure: 7 × 7 (1.5 mm, 2 mm or 2.5 mm), 7 × 19 (3 mm, 4 mm)
Diamond size: 20 ~ 300 mm
2. Kontted cable Mesh
Connection: Inter-woven
Hole Type: 90 degree diamond hole
Cable diametet: 1 ~ 5 mm
Cable structure: 7 × 7 (1.5 mm, 2 mm or 2.5 mm), 7 × 19 (3 mm, 4 mm)
Diamond size: 20 ~ 300 mm
Stainless steel rope aviary zoo mesh good advatages:
Stainless steel rope aviary zoo mesh offers new ideas for global decoration and protection.
Lightweight, high strength, corrosion resistance, good softness, fatigue resistance, impact resistance,
breaking force, the overall structure of durable, life in more than 30 years.
The stainless steel wire rope net is close to the nature, green and protects the birds feather and the
animal skin, effectively prevents the rodents and other animals from biting, giving the animal a safe
and comfortable living environment.
Stainless steel rope aviary zoo mesh good features:
- never rust, softness
- economical and environment friendly.
- easy for transportation and Installment
- abrasion and corrosion resistance.
- high strength strong toughness
- excellent tensile strength and flexibility.
- lightweight, high-strength
simple and beautiful structure.

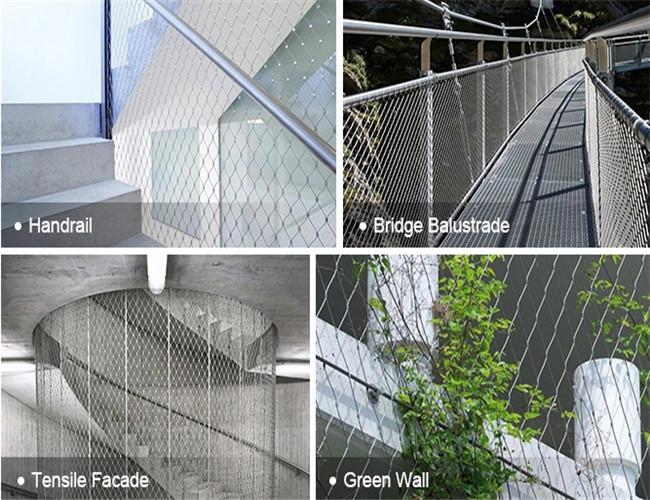

Stainless steel rope aviary zoo mesh aplication in different industries:
- zoo
- feed animal
- hotels,
- shopping
- malls,
- aquaculture
- supermarkets,
- office,
- mechanical protective cover,
- indoor decoration,
- .ctrical ventilation,
- and so on
Stainless steel rope aviary zoo mesh Details for export quality:
1).50X50mm |
2).50X50mm |
3).60X60mm |
| Material | Cable Dia (Inch) | Cable Dia (mm) | Hole Size (mm) | Weight/sqm |
304,304L 316,316L | 1/8" | 3.18 | 51mm x 51mm | 2.10 Kg |
304,304L 316,316L | 1/16" | 1.6 | 60mm x 60mm | 0.45kg |
304,304L 316,316L
| 3/32" | 2.4 | 60mm x 60mm | 0.87kg |
304,304L 316,316L | 3/32" | 2.4 | 51mm x 51mm | 1.02kg |
| Rope Construction | Rope Diameter | Opening Size | Breaking Force | ||
| Inch | mm | Inch | mm | KN | |
| 7 × 19 | 1/8 | 3.2 | 4.7" × 4.7" | 120 × 120 | 7.38 |
| 7 × 19 | 1/8 | 3.2 | 3.6" × 3.6" | 90 × 90 | 7.38 |
| 7 × 19 | 1/8 | 3.2 | 3" × 3" | 76 × 76 | 7.38 |
| 7 × 7 | 3/32 | 2.4 | 4" × 4" | 102 × 102 | 4.18 |
| 7 × 7 | 3/32 | 2.4 | 3.6" × 3.6" | 90 × 90 | 4.18 |
| 7 × 7 | 3/32 | 2.4 | 2.4" × 2.4" | 60 × 60 | 4.18 |
| 7 × 7 | 5/64 | 2 | 3" × 3" | 76 × 76 | 3.17 |
Stainless steel rope aviary zoo mesh:
Stainless steel rope aviary zoo mesh also called stainless steel cable zoo mesh,stainless steel woven rope net,
stainless steel steel rope mesh,stainless steel rope cable mesh etc
Show our Stainless steel rope aviary zoo mesh for reference:
