AISI SUS 304 100Mesh 3mm sieving Stainless Steel Filter Screen
AISI SUS 304 100Mesh 3mm sieving Stainless Steel Filter Screen
Stainless Steel Filter Wire Mesh description:
Stainless Steel Filter Wire Mesh is made by stainless steel wire and then woven together to form
a square opening or oblong opening.Due to its own characteristics of stainless steel, the stainless
steel mesh processed has high wear resistance, long service life,accurate mesh, uniform structure,
no curl, easy to use, uniform screen thickness, anti static, anti-acid and alkali resistance Corrosion.
|
Main Material
|
SS 304, 304L, 316, 316L, 904L, 430, etc.
|
|
Weave Styles
|
Plain Weave, Twill Weave, Plain Dutch Weave,
Twill Dutch Weave, Reverse Dutch Weave
|
|
Wire Diameter
|
0.02-6.30 mm
|
|
Mesh Size
|
1-3500 mesh
|
|
Width
|
Standard less than 2000 mm.
|
|
Length
|
30 m rolls or cut to length, minimum 2 m.
|
|
Sample
|
supply as your need
|
|
Export Experience
|
USA,Australia,Southeast Asia, etc.
|
| Mesh/Inch | Wire Diameter | Aperture | Open Area | Weight(LB)/100 Square Foot | ||
| Inch | MM | Inch | MM | |||
| 20X20 | .016 | .406 | .0340 | .86 | 46.2 | 34.4 |
| 24X24 | .014 | .356 | .0277 | .70 | 44.2 | 31.8 |
| 30X30 | .012 | .305 | .0213 | .54 | 40.8 | 29.4 |
| 35X35 | .011 | .279 | .0176 | .45 | 37.9 | 29.0 |
| 40X40 | .010 | .254 | .0150 | .38 | 36.0 | 27.6 |
| 50X50 | .009 | .229 | .0110 | .28 | 30.3 | 28.4 |
| 60X60 | .007 | .178 | .0097 | .25 | 33.9 | 20.4 |
| 70X70 | .0065 | .165 | .0078 | .20 | 29.8 | 20.8 |
| 80X80 | .0055 | .140 | .0070 | .18 | 31.4 | 16.9 |
| 90X90 | .005 | .127 | .0061 | .16 | 30.1 | 15.8 |
| 100X100 | .0035 | .089 | .0065 | .17 | 42.3 | 8.3 |
| 120X120 | .0037 | .0940 | .0064 | .1168 | 30.7 | 11.6 |
| 150X150 | .0026 | .0660 | .0041 | .1041 | 37.4 | 7.1 |
| 160X160 | .0025 | .0635 | .0038 | .0965 | 36.4 | 5.94 |
| 180X180 | .0023 | .0584 | .0033 | .0838 | 34.7 | 6.7 |
| 200X200 | .0021 | .0533 | .0029 | .0737 | 33.6 | 6.2 |
| 250X250 | .0016 | .0406 | .0024 | .0610 | 36.0 | 4.4 |
| 270X270 | .0016 | .0406 | .0021 | .0533 | 32.2 | 4.7 |
| 300X300 | .0051 | .0381 | .0018 | .0457 | 29.7 | 3.04 |
| 325X325 | .0014 | .0356 | .0017 | .0432 | 30.0 | 4.40 |
| 400X400 | .0010 | .0254 | .0015 | .370 | 36.0 | 3.3 |
| 500X500 | .0010 | .0254 | .0010 | .0254 | 25.0 | 3.8 |
| 635X635 | .0008 | .0203 | .0008 | .0203 | 25.0 | 2.63 |
Stainless Steel Filter Wire Mesh different waeves:
can provide many different weaves to meet different application needs, the weave styles mainly depend on
the mesh and wire diameter specifications of the woven mesh.
Stainless Steel Filter Wire Mesh application:
Stainless steel wire mesh has been widely used in chemical, petrochemical and oil exploration, transportation,
nuclear industry, energy, textile, aerospace, electronics, food, phamaceutical, paper and other industrial sectors,
in certain areas or may not become an indispensable substituted metal material. In addition, the sub-mesh stainless
steel and decorative and easy to clean and antibacterial properties, in the consumer sector it has been widely used,
such as construction and decoration, kitchen utensils, cutlery, metal and other civil.

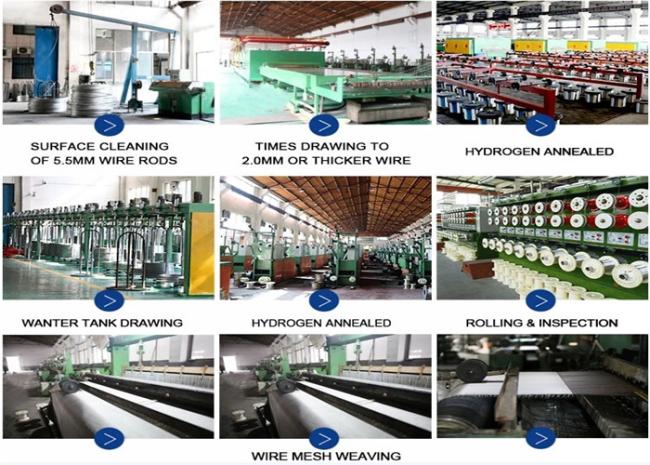

Stainless Steel Filter Wire Mesh products pictures for reference:
