Checkered Plate Serrated 25x5 Bar Grating Stair Tread
Checkered Plate Serrated 25x5 Bar Grating Stair Tread

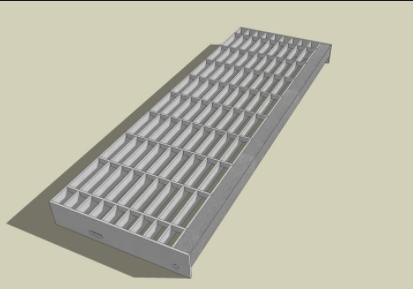

Stair tread is made of steel grating and is widely used for different types of steel stairway. It's easy installed, featuring strong structure and aesthetic appearance and good water permeability. We usually fabricate according to customers' requirement.
Stair Tread Specification(In mm)
|
Bearing bar ( widthx thickness)
|
25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10 etc
I Bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
|
|
Bearing bar pitch
|
12.5, 15, 20, 22, 25, 30, 32.5, 34, 35, 38, 40, 50, 60 ,80mm, etc
|
|
Twisted cross bar pitch
|
30, 50, 60, 76, 80, 100, 101.6, 120mm, etc
|
|
Surface treatment
|
untreated, hot dipped galvanized, powder coated, painting etc
|
|
Grating style
|
Plain, Smooth, Serrated( teeth), I bar
|
|
Remarks: other size also can be customized according to customer's request
|
|
Stair Tread Applications
A. Flooring Stairs, stair treads and crossover platforms
B. Racks and shelving Fire escapes, light guards and loading ramps
C. Bridge sidewalks and bridge decking
D. Residential and commercial buildings

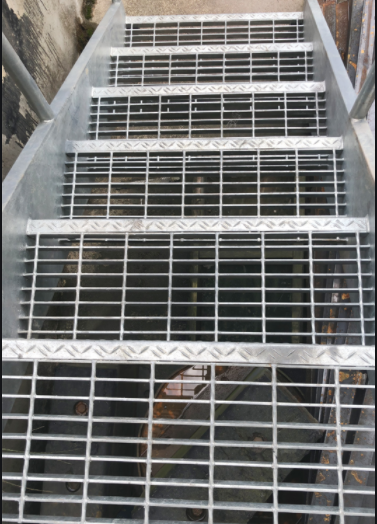

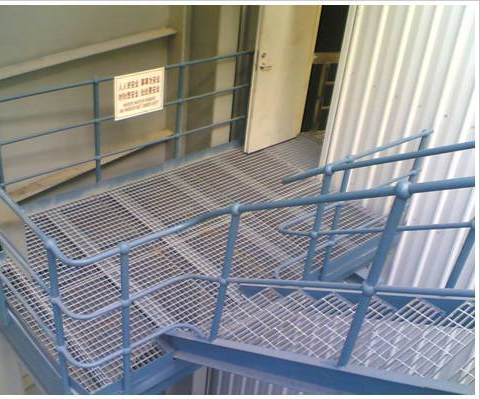

Checkered Plate Serrated 25x5 Bar Grating Stair Tread Show

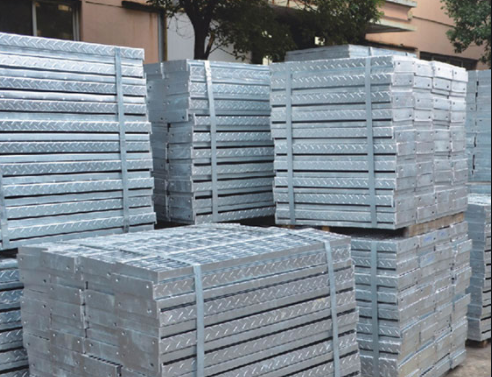

Packing and Delivery
