Roof Safety 25x5 30mm Pitch Aluminium Walkway Grating
Roof Safety Walkway Lightweight Aluminium Welded Grating
Roof Safety Walkway Lightweight Aluminium Welded Grating Description
Aluminium gratings are lightweight, stable gratings that are used in environments where specific requirements are stipulated.
They are available in a range of cross bar and load bar combinations.
Aluminium Grating allows the building or project designer to incorporate a functional element, which also has an aesthetic appeal.

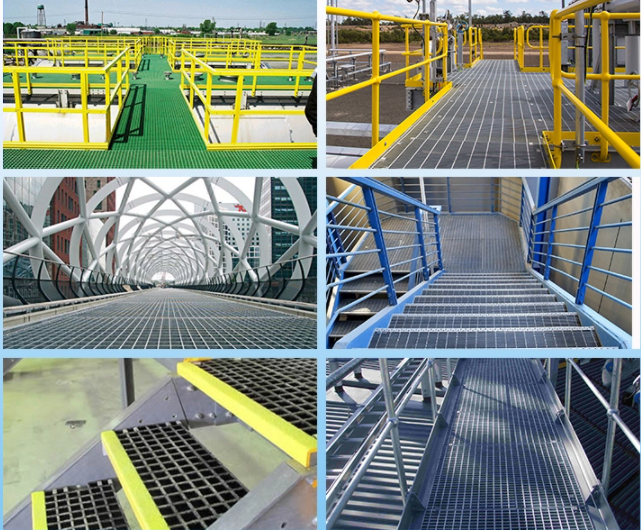

Roof Safety Walkway Lightweight Aluminium Welded Grating Applications
1. Used in moisture environments where rust is a potential issue.
2. Used in architectural applications as ceiling or as a facade or landscape feature.
3. Used as flooring and vertical screening,suitable for public, industrial, domestic and vehicular applications.
| Bearing bar size | Bearing bar pitch | Cross bar pitch | Weight kg/sqm |
| 25x3 | 30 | 50 | 10.26 |
| 25 x 5 | 30 | 50 | 14.74 |
| 32 x 3 | 30 | 50 | 11.84 |
| 32 x 5 | 30 | 50 | 17.90 |
| 40 x 3 | 30 | 50 | 14.37 |
| 40 x 5 | 30 | 50 | 21.50 |
| 45 x 5 | 30 | 50 | 27.34 |
| 50 x 5 | 30 | 50 | 26.03 |
| 55 x 5 | 30 | 50 | 29.15 |
| 65x5 | 30 | 50 | 33.80 |
Roof Safety Walkway Lightweight Aluminium Welded Grating Advantage
-Light weight, high strength
-Easy to install and dismantled
-Ventilation and light can pass through
-Material saving, economical
-Slip-resistant and safe
-Long life and durable

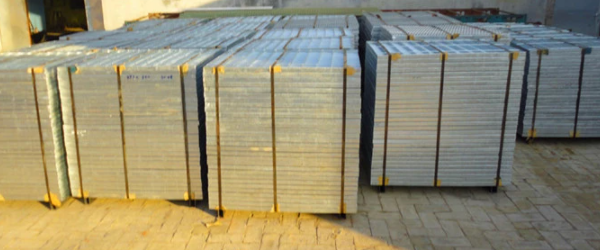

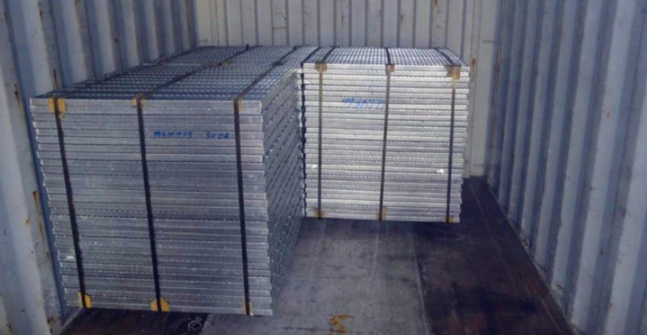

Packing
About Us
FAQ
Q1: What about your sample policy?
Simple sample,charge express fee only. Complicated sample, will refund after placing mass order.
Q2: What's your payment term?
Sample: 100% before produce. Batch: 30% deposit, 70% before shipping.
Q3: What kind of payment does your factory accept?
T/T, Paypal, Western Union, L/C,etc.
Q4: What about the delivery time?
15-25 working days. Depends on the order quantity.
Q5: Is there quality control on all production lines?
Yes, all production lines have adequate quality control.
