Multifunctional 25x3mm Stainless Steel 304 Welded Steel Grating
Multifunctional 25x3mm Stainless Steel 304 Welded Steel Grating
Product Description
|
Product name
|
Multifunctional 25x3mm Stainless Steel 304 Welded Steel Grating
|
|||
|
Grating Style
|
Plain type
|
|||
|
Surface Treatment
|
Polishing | |||
| Technique | Welded | |||
|
Usage
|
industry of Power plant, Oil Refineries,Petrochemistry, Chemical Plant, Water and Waste treatment plant, Ship-building, offshore
projects, etc. |
|||
|
Bearing bar (width * thickness)
|
25*3mm,25*4mm,25*5mm,30*3mm,30*4mm,30*5mm,32*3mm,32*5mm,40*3mm,
40*4mm,40*5mm,50*3mm,50*4mm,50*5mm, etc.
|
|||
|
Bearing bar pitch (mm)
|
12.5, 15, 20, 25, 30, 34.3, 35.3, 40,41.25, 50, 60...(30, 40,50 mm are recommended ),also can do the size as customer's request
|
|||
|
Cross bar pitch (mm)
|
38.1, 50, 76.2, 100, 101.6 . Etc.(30, 50, 100 ,150 mm are recommended ),also can do the size as customer's request
|
|||
|
Material:
|
Stainless steel 304
|
|||
Multifunctional 25x3mm Stainless Steel 304 Welded Steel Grating Fetures
1. Light weight, high strength.
2. Large bearing capacity.
3. Ventilation and light can pass through.
4. Anti-skid safety, easy to clean.
5. Simple installation and durable.
6. Maintenance free.
Multifunctional 25x3mm Stainless Steel 304 Welded Steel Grating Specifications(In mm)
| Bearing bar pitch | Cross-bar Pitch | Specification of bearing bar (width×thickness) | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
| 60 | 50 | G203/60/50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
| Bearing bar pitch | Cross-bar Pitch | Specification of bearing bar (width×thickness) | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |

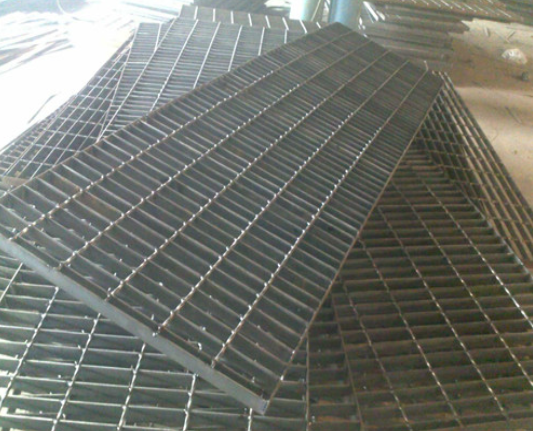

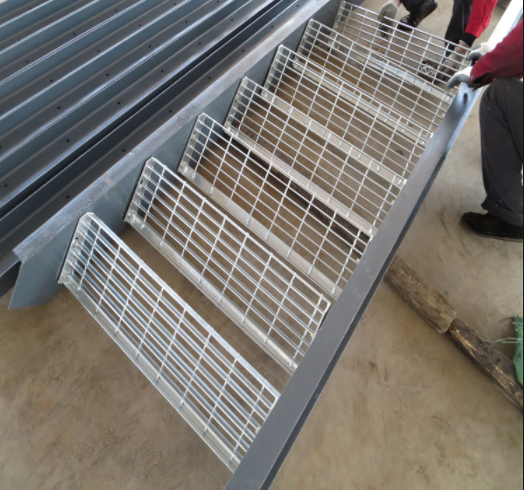

Product show
Packing
About Us
FAQ
Q1: What about your sample policy?
Simple sample,charge express fee only. Complicated sample, will refund after placing mass order.
Q2: What's your payment term?
Sample: 100% before produce. Batch: 30% deposit, 70% before shipping.
Q3: What kind of payment does your factory accept?
T/T, Paypal, Western Union, L/C,etc.
Q4: What about the delivery time?
15-25 working days. Depends on the order quantity.
Q5: Is there quality control on all production lines?
Yes, all production lines have adequate quality control.
