D Section Green Powder Coated Steel Palisade Wire Mesh Fence
D section green powder coated Steel Palisade Fence
Steel Palisade Fence description:
Steel Palisade Fence is made of good steel plate,It is have many kinds section for choice,like "D" section,
also have other type.
Steel Palisade Fence have different length and height,which can as your use design the suitable size.
Steel Palisade Fence specification list:
| Fence panel height | 1m-6m |
| Fence panel width | 1m-3m |
| Pale height | 0.5m-6m |
| Pale width | W pale 65-75mm d pale 65-70mm |
| Pale thickness | 1.5-3.0mm |
| Angle rail | 40mmx40mm 50mmx50mm 63mmx63mm |
| Angle rail thickness | 3mm-6mm |
| RSJ post | 100mmx55mm 100mmx68mm 150mmx75mm |
| Square post | 50mmx50mm 60mmx60mm 75mmx75mm 80mmx80mm |
| Square post thickness | 1.5mm-4.0mm |
| Straight fishplates or post clamps | 30mmx150mmx7mm 40mmx180mmx7mm |
| Bolts and nuts | M8XNo.34 for pale fixing M12xNo.4 for rail fixing |
| If you have any other questions, please click here to '' send an inquiry '' | |

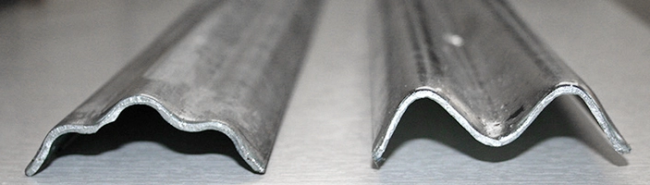

Steel Palisade Fence have section types:
"D" section "W" section

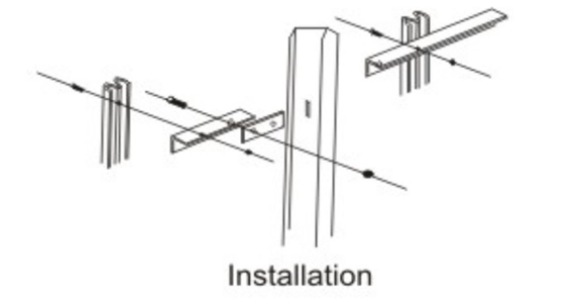

Steel Palisade Fence install way pictures:

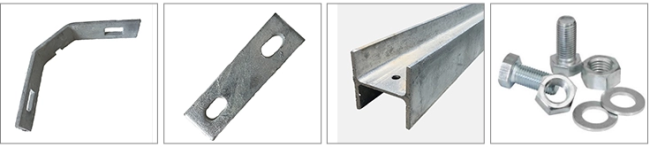

Steel Palisade Fence install use the accessories:
Steel Palisade Fence packing way:
1. There is metal plate under the plastic bandage to reduce the apressure of fence panels
2. There is 4 metal corners to keep the pallet more strong.
3. There is wooden plate at the top of fence panel which can prote
Mainly packaged according to customer requirements
4. There is rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels

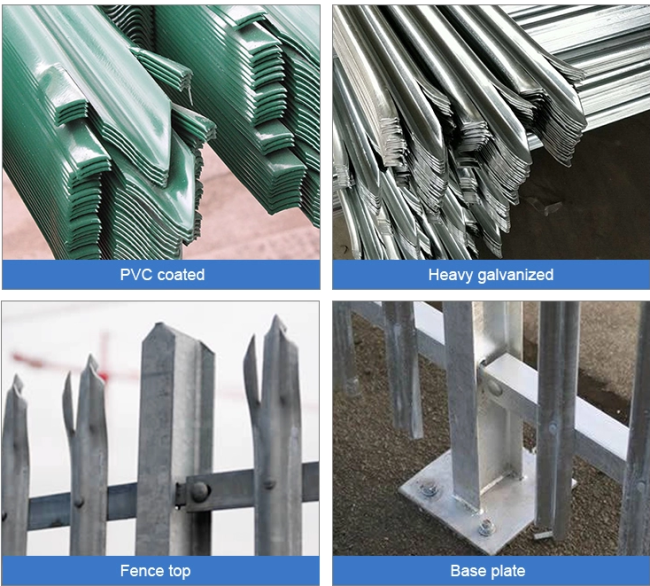

Steel Palisade Fence product pictures:
