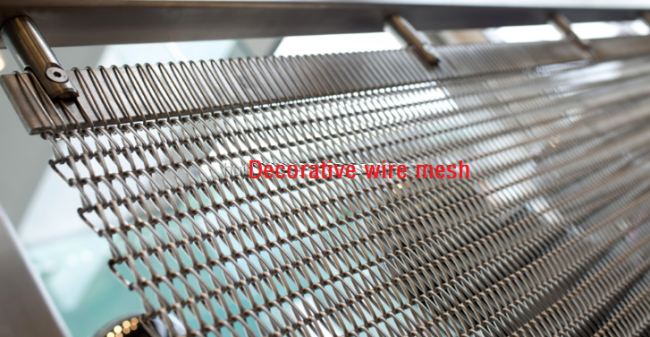

1.2m Flexible Spiral Woven Stainless Steel Mesh Curtain Drapery
1.2m Stainless Steel Flexible Spiral Woven Mesh Drapery
Flexible Spiral Woven Mesh Drapery description:
Flexible Spiral Woven Mesh Drapery can be manufactured in stainless steel, brass or aluminium for a
variety of looks. huihao Group have a considerable architectural portfolio of wire profiles, mesh
thicknesses and weave options, all customisable to client specifications. Wire mesh curtains,
designed your way, make a space truly striking and unique, as satisfied users nationwide have
found in their own architectural projects.
Flexible Spiral Woven Mesh Drapery specification list:
|
Specification Coding
|
Nominal Belt Thickness
(mm) |
Lateral
Pitch of Coil wire(mm) |
Coil Wire Dia. (mm)
|
Crimped Cross Wire Pitch down length (mm)
|
Crimped Cross Wire Dia (mm)
|
|
18-16-16-16
|
7.7
|
16.94
|
1.63
|
19.05
|
1.63
|
|
18-14-16-14
|
8.9
|
16.94
|
2.03
|
19.05
|
2.03
|
|
30-17-24-17
|
7.3
|
10.16
|
1.42
|
12.7
|
1.42
|
|
30-16-24-16
|
6.7
|
10.16
|
1.63
|
12.7
|
1.63
|
|
42-18-36-18
|
6.0
|
7.26
|
1.22
|
8.47
|
1.22
|
|
42-17-36-17
|
6.0
|
7.26
|
1.42
|
8.47
|
1.42
|
|
42-16-36-16
|
6.4
|
7.26
|
1.63
|
8.47
|
1.63
|
|
48-17-48-17
|
6.1
|
6.35
|
1.42
|
6.35
|
1.42
|
|
48-16-48-16
|
6.4
|
6.35
|
1.63
|
6.35
|
1.63
|
|
60-20-48-18
|
4.0
|
5.08
|
0.91
|
6.35
|
1.22
|
|
60-18-48-18
|
5.2
|
5.08
|
1.22
|
6.35
|
1.22
|
|
60-18-60-18
|
5.6
|
5.08
|
1.22
|
5.08
|
1.22
|

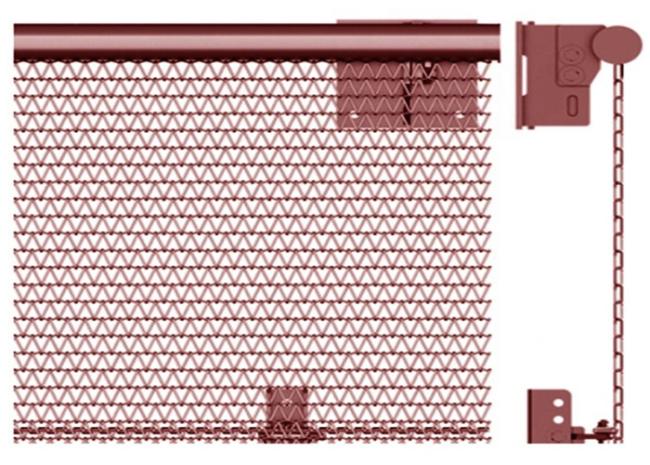

Flexible Spiral Woven Mesh Drapery install way and pictures:
steel sheet frame with bolt
Custom Design Stainless Steel Flexible Spiral Woven Mesh Drapery Installation System
edge with anchor for fixing
Custom Design Stainless Steel Flexible Spiral Woven Mesh Drapery Installation System
square tube frame with bolt
Custom Design Stainless Steel Flexible Spiral Woven Mesh Drapery Installation System
Flexible Spiral Woven Mesh Drapery features:
1. high quality material
2. uniform hole size
4. surface good and beautiful
5. fast install and easy
6. long use life
Flexible Spiral Woven Mesh Drapery application:
Show our Flexible Spiral Woven Mesh Drapery product pictures for reference as follows:
