Balconies Slot Hole Perforated Aluminum Panels Liquids And Solids Filtration
High Open Area Square Hole Perforated Metal Sheet For Ventilation
Product Description
Slot hole perforated sheet is a versatile sheet or coil punched for elongated holes with round or square ends.
Compared to similar perforated sheet with other hole pattern, this one proves to be the best solution to filtrate
and sieve liquids and solids, such as water, wine, grain and seeds, etc.
Optional material:
The materials most frequently used of the slot hole perforated sheet include mild steel, carbon steel, stainless steel,
aluminum, brass and any other material suitable for perforation.
Aesthetic hole patterns:
According to the desired application, there are many arrangements of slot holes including straight or staggered type.
The slot hole should be punched with a width that at least the same size as the sheet thickness. When the slot width
Product Specifications
| Hole diameter | Staggered Centers | Sheet Thickness | Open Area | ||
| 0.045” | 1.14mm | 0.066 | 0.033-0.039” | 0.84-0.99mm | 37% |
| 1/16” | 1.59mm | 3/32” | 0.027-0.033” | 0.68-0.84mm | 41% |
| 5/64” | 1.98mm | 1/8” | 0.027-0.053” | 0.68-1.35mm | 35% |
| 0.081” | 2.06mm | 1/8” | 0.053-0.066” | 1.35-1.68mm | 38% |
| 3/32” | 2.38mm | 5/32” | 0.053-0.066” | 1.35-1.68mm | 33% |
| 1/8” | 3.17mm | 3/16” | 0.027-0.127” | 0.68-3.23mm | 40% |
| 5/32” | 3.97mm | 3/16” | 0.027-0.066” | 0.68-1.68mm | 63% |
| 3/16” | 4.76mm | 1/4” | 0.027-0.127” | 0.68-3.23mm | 50% |
| 1/4” | 6.35mm | 3/8” | 0.033-0.111”,0.25” | 0.84-2.82mm.6.35mm | 40% |
| 3/8” | 9.52mm | 1/2” | 0.053”-0.082”,3/16” | 1.35-2.08mm,4.76mm | 51% |
| 3/8” | 9.52mm | 9/16” | 0.059’,0.119” | 1.50mm,3.02mm | 40% |
| 1/2” | 12.70mm | 11/16” | 0.033-0.127” | 0.84-3.23mm,4.76mm | 48% |
| 1/4”Hex | 6.35mmHex | 0.285 | 0.027-0.033’ | 0.68-0.84mm | 76% |
| 3/8”Sq. | 9.52mmSq. | 0.053-0.066” | 1.35-1.68mm | 51% | |
Product Fetures
1). Various kind of hole patterns.
2). Accurate holes, bending resistance, corrosion resistance.
3). Easy to process and install, good sound absorption
4). Durable and long service life.
5). Attractive appearance and wide range of thickness available.
Product Applications
- Act as sieves for grain & seeds cleaning and drying machine.
- Mill of flour and rice.

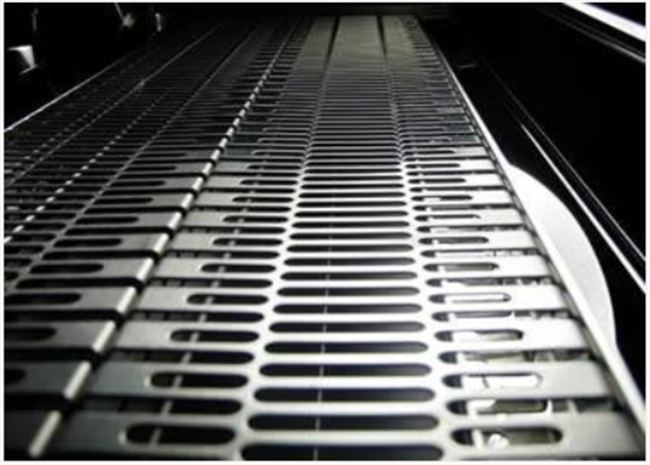

- Rope belt conveyors.

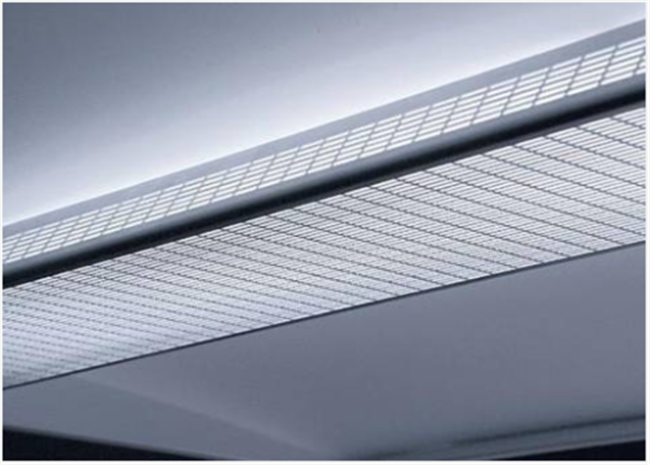

- Wall & ceiling panels.
- Cladding and sunshade.
- Fences and protective panels.
- Decorative applications, etc.
