60# Steel Crimped Wire Mesh High Bearing Capacity For Industrial Filters
High Bearing Capacity 60# Steel Crimped Wire Mesh for Industrial Filters
Product Description
Crimped Wire Mesh is made of steel wires that are pre-crimped or bent before weaving. The pre-crimp action
enables the warp and shute wires to nest safely within each other avoiding any movement among them and
assuring accurate and consistent hole size. Crimped Wire Mesh is more durable and rigid than other mesh types.
|
Specification List of Crimped Wire Mesh(Partly)
|
||||
| Wire Diameter mm | Mesh | Wire Diameter mm | Mesh | |
| 2.0 — 1.6 | 3 | 1.0–0.6 | 10 | |
| 1.8 — 1.2 | 3.5 | 0.8–0.5 | 12 | |
| 1.6 — 0.7 | 4 | 0.7–0.5 | 14 | |
| 1.6 — 0.6 | 5 | 0.60–0.4 | 16 | |
| 1.5–0.8 | 6 | 0.6–0.4 | 18 | |
| 1.2–0.7 | 8 | 0.5–0.35 | 20 | |
| 1.5 | 10 | 1.9 | 20 | |
| 1.6 | 10 | 2.0 | 20 | |
| 1.5 | 12 | 1.9 | 25 | |
| 1.6 | 12 | 2.0 | 25 | |
| 1.5 | 15 | 2.5 | 20 | |
| 1.6 | 15 | 2.6 | 20 | |
| 1.9 | 10 | 2.5 | 25 | |
| 2.0 | 10 | 2.6 | 25 | |
| 1.9 | 12 | 2.5 | 30 | |
| 2.0 | 12 | 2.6 | 30 | |
| 1.9 | 15 | 3.0 | 25 | |
| 2.0 | 15 | 3.2 | 25 | |
| 1.9 | 18 | 3.0 | 30 | |
| 2.0 | 18 | 3.2 | 30 | |
| 4.0 | 19×9 | 1.2 | 5.5×1.5 | |
| 3.5 | 18×8 | 1.0 | 4.5×1.2 | |
| 3.2 | 16×7 | 0.8 | 4.0×1.0 | |
| 2.9 | 15×6 | 0.7 | 3.5×0.9 | |
| 2.6 | 13.5×5 | 0.7 | 3.3×0.8 | |
| 2.3 | 11.5×4 | 0.6 | 3.0×0.7 | |
| 2.0 | 10×3.5 | 0.5 | 2.7×0.6 | |
| 1.8 | 9×3 | 0.5 | 2.3×0.5 | |
| 1.6 | 8×2.5 | 0.4 | 1.9×0.4 | |
| 1.4 | 7×2 | 0.3 | 1.5×0.3 | |
Product Features
- High strength, high bearing capacity.
- Corrosion resistance, acid and alkali resistance.
- Good adaptability, high temperature and low temperature resistant.
- No blinding and plugging.
- Easy to install and maintain.
- Various types of vibrating screen mesh.
Product Applications
It is used in mining, coal factories, building and construction sites, for industrial filters, petrochemical industry,
construction machinery security etc. It is used in industries where sieving is imperative. It can be installed in series
to produce and separate the finest set of particles of chemicals, fertilizers, cement and medicines. Crimped wire mesh
is constructed using good quality materials to provide prolong service.

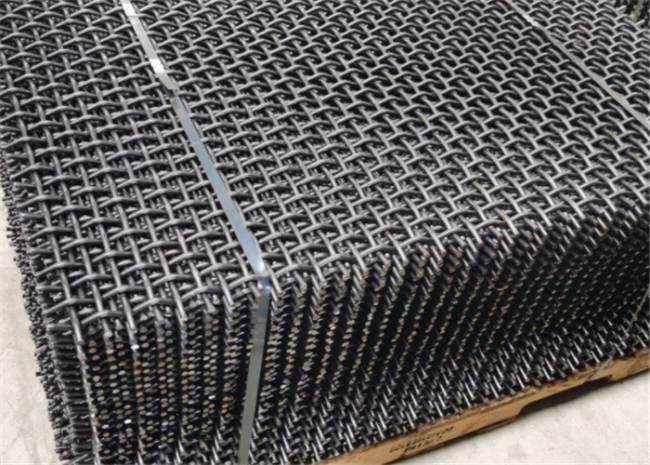

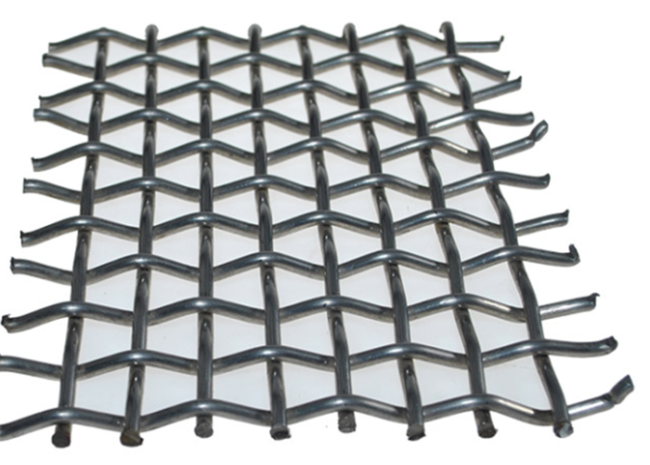

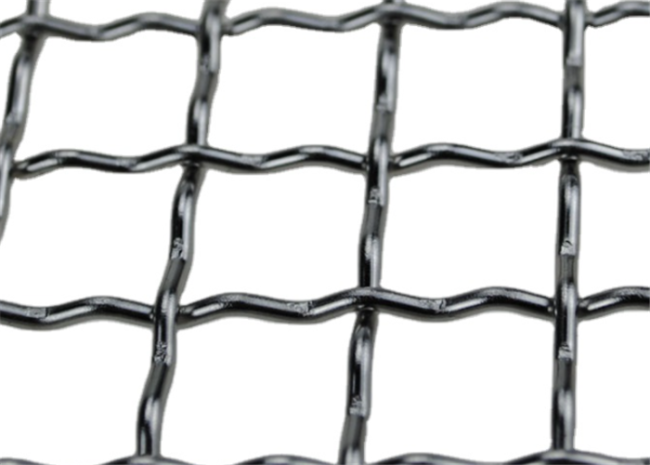

Product Show
