Corrosion Resistant K30 Tungsten Carbide Plates 465 GPa For Chemical Industry
Corrosion Resistant Parts K30 Tungsten Carbide Plates For Chemical Industry
Tungsten carbide plate is mainly made of WC tungsten carbide and cobalt powder through metallurgical mixing, crushing, ball milling, pressing and sintering. The main components are WC and Co. The content of WC and CO in tungsten carbide plates for different purposes is different, and the application range is wide. Tungsten carbide plate is one of many materials of tungsten carbide.
Technological Process of Tungsten Carbide Plates
Pulverization → formulation according to application requirements → wet grinding → mixing → crushing → drying → screening → adding molding agent → re-drying → preparing mixture after screening → granulation → pressing → forming → sintering → forming (blank) → flaw detection → packaging → warehousing
Tungsten Carbide Plates Garde & Technical Parameters
| Grade | Co% | Hardness HAR |
Density g/cm |
Flexural strength MPa |
Elastic modulus GPa |
Thermal expansion coefficient 10/C |
Application |
| JX10 | 10 | 91.7 | 14.4 | 4300 | 490 | 5.4 | Copper, aluminum and other thin sheets with thickness less than 0.2mm |
| JX15 | 12 | 92.5 | 14.1 | 4500 | 460 | 5.8 | Copper, aluminum, stainless steel, etc |
| JX20 | 13 | 90.6 | 14.1 | 4100 | 460 | 5.8 | Strong applicability, copper, aluminum and other thin sheets |
| JX35A | 12 | 89.8 | 14.2 | 3400 | 470 | 5.7 | Q195, SPCC and other cold rolled sheets |
| JX36 | 15 | 89.4 | 13.8 | 3900 | 430 | 6.3 | EI, SPCC and other cold rolled sheets |
| JX40A | 12 | 88.9 | 14.2 | 3300 | 470 | 5.7 | Q195, SPCC and other cold rolled plates, high-speed stamping dies and multi station progressive dies |
| JX45A | 15 | 87.9 | 13.9 | 3200 | 440 | 6.1 | Die for silicon steel sheet, cold rolled sheet, hardware and standard parts |
| JX55 | 20 | 86.4 | 13.5 | 3100 | 390 | 6.8 | Silicon steel sheet, upper and lower punches |

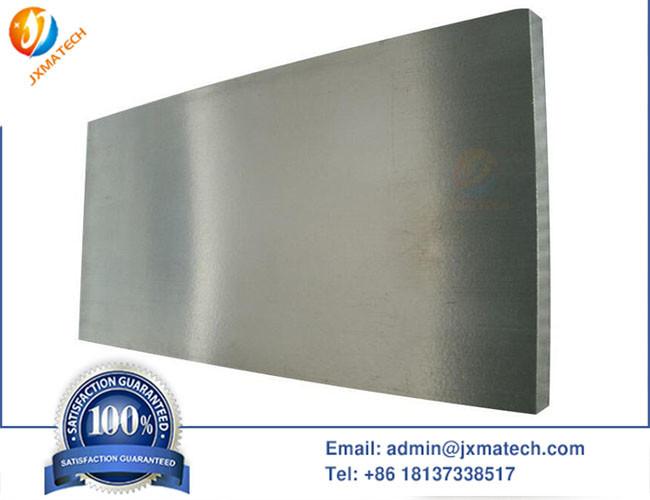

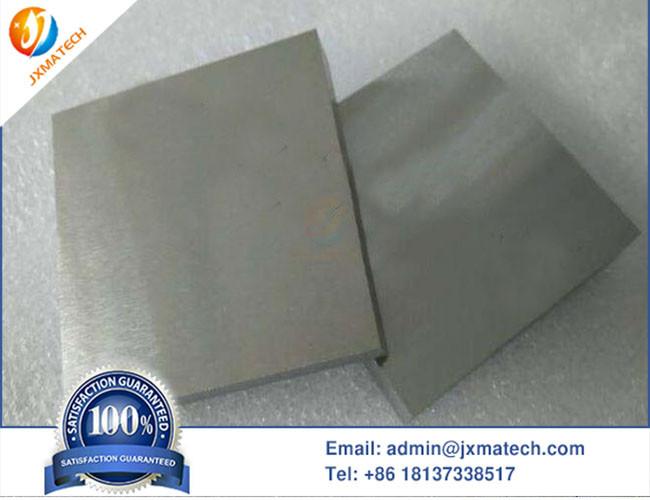

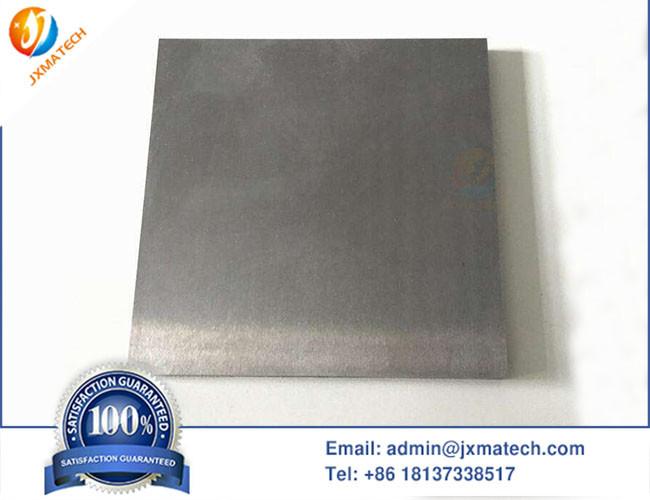

Tungsten Carbide Plates Picture:
Performance characteristics of Tungsten Carbide Plates
Cemented carbide sheet has excellent hardness, high hardness, good wear resistance, high elastic modulus, high compressive strength, good chemical stability (acid and alkali resistance and high temperature oxidation), low impact toughness, low expansion coefficient, heat resistance. Good and other advantages.
Scope of application
Tungsten carbide plate is mainly used for manufacturing high-speed mold and multi-station progressive mold, used for stamping copper, aluminum, stainless steel, cold rolled plate, EI plate, Q195, SPCC, silicon steel plate, hardware, standard parts, upper and lower punching, etc. Table. It is also an excellent material for manufacturing high-temperature parts, wear-resistant parts, anti-shielding parts and corrosion-resistant parts. Tungsten carbide plate with suitable material should be selected according to the specific application situation.
