W90cu10 Tungsten Copper Alloy Products Copper Tungsten Parts
W90cu10 Tungsten Copper Alloy Products Copper Tungsten Parts
Basic Info.
Product Description
Tungsten copper alloy is the composite of Tungsten and Copper, which own the excellent performances of Tungsten and Copper, such as heat-resistant, ablate-resistant, high-intensity, excellent thermal and electrical conductivity. Tungsten copper alloy is easy to be machined. Tungsten copper alloy is used widely in such industries as engine, electrical power, electron, metallurgy, spaceflight and aviation. Using CIP formation, sintered tungsten skeleton and infiltrating copper (silver) technology, large size and special shape products of WCu composites with 6-90 percent of copper are produced, such as electric contacts, electrode, refractory parts, heat sinks and parts of rocket, We can also produce Tungsten copper alloy sheet material, tubing, plate and other small products by mould pressing, extrusion pressing and MIM.
| Specifications of WCu Alloy: | ||||||||
| Code No. | Chemical Composition % | Mechanical properties | ||||||
| CU | Impurity | W | Density(g/cm 3 ) |
Hardness HB |
RES( cm) | Conductivity IACS/ % |
TRS/ Mpa |
|
| CuW(50) | 50 + 2.0 | 0.5 | Balance | 11.85 | 115 | 3.2 | 54 | |
| CuW(55) | 45 + | 0.5 | Balance | 12.3 | 125 | 3.5 | 49 | |
| 2 | ||||||||
| CuW(60) | 40 + 2.0 | 0.5 | Balance | 12.75 | 140 | 3.7 | 47 | |
| CuW(65) | 35 + 2.0 | 0.5 | Balance | 13.3 | 155 | 3.9 | 44 | |
| CuW(70) | 30 + 2.0 | 0.5 | Balance | 13.8 | 175 | 4.1 | 42 | 790 |
| CuW(75) | 25 + 2.0 | 0.5 | Balance | 14.5 | 195 | 4.5 | 38 | 885 |
| CuW(80) | 20 + 2.0 | 0.5 | Balance | 15.15 | 220 | 5 | 34 | 980 |
| CuW(85) | 15 + 2.0 | 0.5 | Balance | 15.9 | 240 | 5.7 | 30 | 1080 |
| CuW(90) | 10 + 2.0 | 0.5 | Balance | 16.75 | 260 | 6.5 | 27 | 1160 |

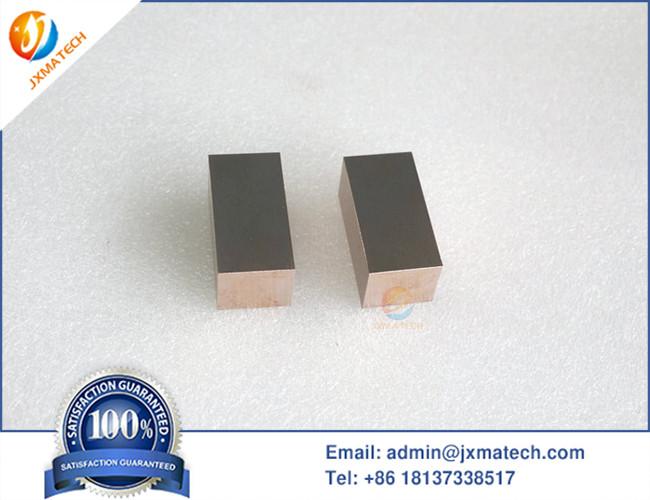

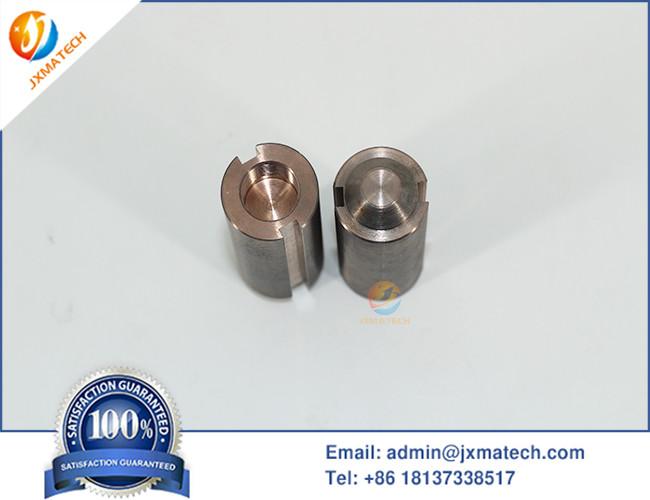

Tungsten Copper Alloy Parts Pictures:
