ASTM B658 705 Zr Tube In Water - Cooled And Biological Reactors Application
ASTM B658 Zirconium Zr705 Tube In Water-Cooled And Biological Reactors Application
Zirconium Zr705 Tube is a rare metal with amazing corrosion resistance, high melting point, super hardness and strength. Zirconium Zr705 tube is widely used in aerospace, military, nuclear reaction, atomic energy and other fields. General industrial zirconium is mainly used in chemical industry and electronic industry, mainly for the corrosion resistance and conductivity of zirconium tube.
CHEMICAL COMPOSITIONS (NOMINAL)
| Type | Zr+Hf | Hf | Fe+Cr | H | N | C | O | Nb |
|---|---|---|---|---|---|---|---|---|
| Zr702 | >99.2 | <4.5 | <0.2 | <0.005 | <0.025 | <0.05 | <0.16 | / |
| Zr705 | 95.5 | <4.5 | <0.2 | <0.005 | <0.025 | <0.05 | <0.18 | 2.0-3.0 |
Zirconium Zr705 Tube PHYSICAL PROPERTIES
Density: 6.51g/cm3
Melting Point: 1852°C
Thermal Conductivity: 22W/(m °C)
Elastic bend modulus: 99.3 GPa
Thermal Expansions: 5.4x10 /°C
PARAMETERS
-
Specification: seamless pipe OD(8-152) * t (0.5-15) * L (≤ 9000) mm, welded pipe (outer diameter ≥ 10mm)
-
Executive Standards: ASTM B523 / B523M-18, ASME SB-523, ASTM B658 / B658M-11, ASME SB-658 / SB-658M, GB/T 26283-2010
Application
Zirconium alloys are corrosion resistant and biocompatible, and therefore can be used for body implants. In one particular application, a Zr-2.5Nb alloy is formed into a knee or hip implant and then oxidized to produce a hard ceramic surface for use in bearing against a polyethylene component. This oxidized zirconium alloy material provides the beneficial surface properties of a ceramic (reduced friction and increased abrasion resistance), while retaining the beneficial bulk properties of the underlying metal (manufacturability, fracture toughness, and ductility), providing a good solution for these medical implant applications.

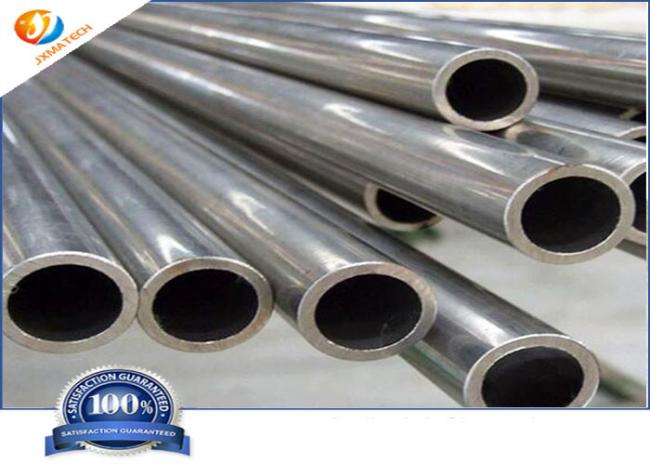

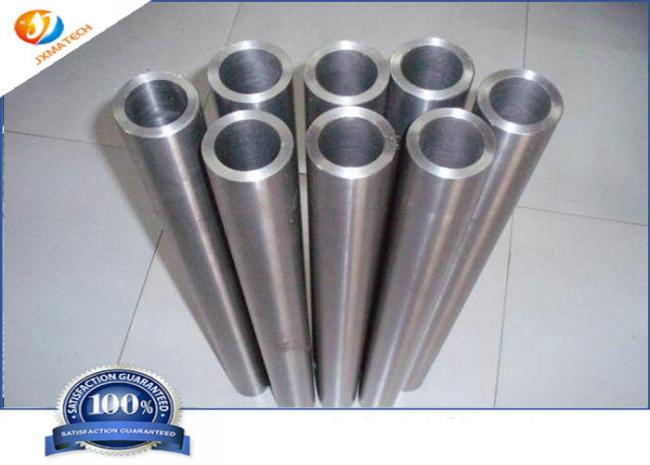

Zirconium Zr705 Tube Picture:
