UNS R60702 Seamless Zirconium Tubing Zr702 Heat Exchanger Applications
UNS R60702 Zirconium Seamless Tubing Zr702 For Heat Exchanger Applications
Zirconium Seamless Tubing is a type of metal with strong corrosion resistance, which is suitable for equipment with chemical corrosion resistance. Its acid resistance is better than that of titanium and other steels, and similar to that of tantalum. Zirconium is also stable in alkaline solution. It is widely used in tube heat exchanger, coil-heat exchanger, serpentine tube heat exchanger, condenser, evaporator, pipe and other heat exchange equipment.
CHEMICAL COMPOSITIONS (NOMINAL)
| Type | Zr+Hf | Hf | Fe+Cr | H | N | C | O | Nb |
|---|---|---|---|---|---|---|---|---|
| Zr702 | >99.2 | <4.5 | <0.2 | <0.005 | <0.025 | <0.05 | <0.16 | / |
| Zr705 | 95.5 | <4.5 | <0.2 | <0.005 | <0.025 | <0.05 | <0.18 | 2.0-3.0 |
PHYSICAL PROPERTIES
Density: 6.51 g/cc
Melting point: 1852°C
Thermal conductivity: 22 W/(m °C)
Elastic bending modulus: 99.6 GPa
Thermal expansions: 5.4x10 /°C
Standard Specification
- Executive standard: GB / T 26283-2010 ASTM b658-07
- Outer diameter 6.0-114mm
- Wall thickness 0.3-8.0 mm
- Length ≤ 18000mm
Zirconium Seamless Tubing APPLICATIONS
The processing specification has a sensitive influence on the performance of the product. In particular, the cold processing and heat treatment process before the finished product should be controlled to meet the requirements of use.

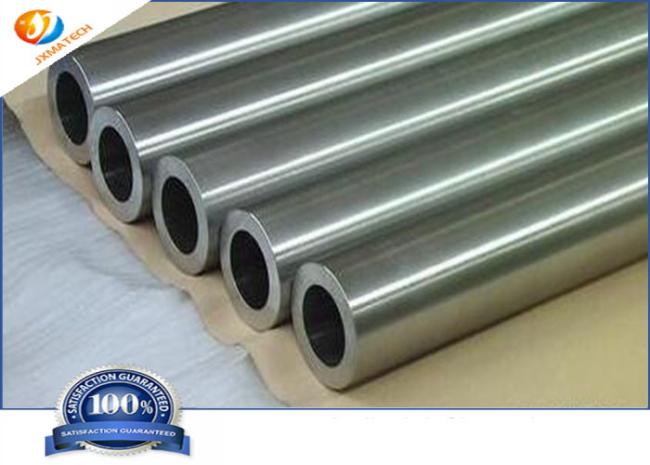

Zirconium Seamless Tubing Picture:
PACKAGING
The dimensional accuracy and surface quality of the pipe are required to be high. Therefore, the process equipment should have good precision, and the design and manufacture of the die should be advanced and reasonable.
