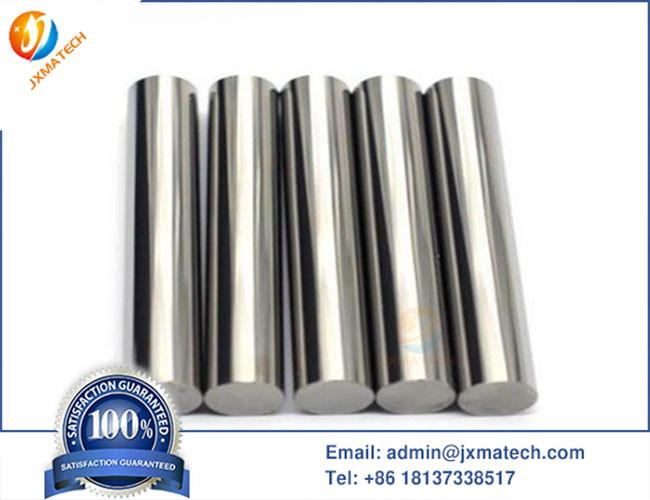

YG8 Tungsten Alloy Products Rod For Milling Cutters Engraving Knives
YG8 Cemented Tungsten Steel Rod For Milling Cutters Engraving Knives
Tungsten Steel Rod is in the cemented carbide sintering process, due to powder sintering, compared with ordinary die steel, its performance has no directionality. In the process of processing, different shapes can be divided according to specifications, and the fracture toughness of superhard materials is small. In a wide range, cemented carbide has good hardness and toughness, has become the most widely used cemented carbide material, and is widely used in engineering and tool products.
Specifications Table of Tungsten Steel Rod
| WC bar / rod | Diameter | Length | ||
| Type | Size (mm) | Tolerance (mm) | Size (mm) | Tolerance (mm) |
| JX040-50 | 4 | +0.2～0.4 | 50 | 1 |
| JX050-50 | 5 | +0.2～0.4 | 50 | 1 |
| JX060-50 | 6 | +0.2～0.4 | 50 | 1 |
| JX060-60 | 6 | +0.2～0.4 | 60 | 1 |
| JX080-60 | 8 | +0.2～0.4 | 60 | 1 |
| JX100-75 | 10 | +0.2～0.4 | 75 | 1.5 |
| JX100-100 | 10 | +0.2～0.4 | 100 | 2 |
| JX120-75 | 12 | +0.2～0.4 | 75 | 1.5 |
| JX120-100 | 12 | +0.2～0.4 | 100 | 2 |
| JX140-100 | 14 | +0.3～0.5 | 100 | 2 |
| JX160-100 | 16 | +0.3～0.5 | 100 | 2 |
| JX200-100 | 20 | +0.3～0.5 | 100 | 2 |
Application of tungsten steel rod
1. Tungsten carbide hard metal round rods is suitable for micro-drilling.
2. Tungsten steel rod has good wear resistance and bending resistance. Mainly used in the production of extruded bars, suitable for wear-resistant parts such as ordinary drills and knives.
3. Cemented Tungsten Carbide Round Rod has good wear resistance and bending resistance. Mainly used in the production of extruded bars, small-diameter micro-drills, watch processing tools, integral reamers and other tools and wear-resistant parts.
4. Tungsten steel rod is a kind of ultra-fine grained tungsten steel material. This tungsten steel rod has the characteristics of high hardness, good bending strength, wear resistance, not easy to collapse, and not easy to break. It is a special material for micro-drills, which is widely used in tungsten steel milling cutters, engraving knives and wear-resistant parts.
