W50-90 Cu10-50 Tungsten Copper Bar Rod Copper Tungsten Electrodes

Price Negotiable

Price: according to actual products

MOQ: 10kgs

Delivery Time: 25days

Brand: JX

Product Description

Tungsten Copper Bar Copper Tungsten Electrodes Tungsten Copper Rod

Copper Tungsten Electrodes is Mainly used for EDM machining of carbide molds, high-speed steel and switches and contacts in high and low voltage electrical devices.

Top grade W50-W90% wolfram tungsten copper alloy plate supplier
Material: W50-90Cu10-50
Density: 11.85g/cm3-16.75g/cm3
Product standard: GB8320-87
WCu alloy foil size: Thickness(0.08-0.7mm)*Width<120mm*Length<300mm
WCu alloy sheet size: the main sizes see attachment

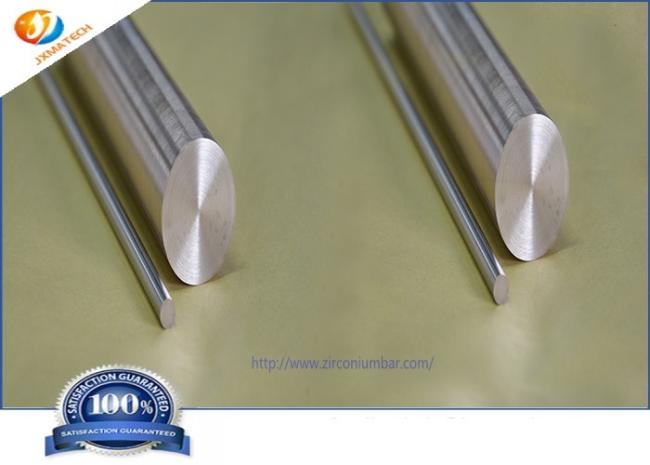

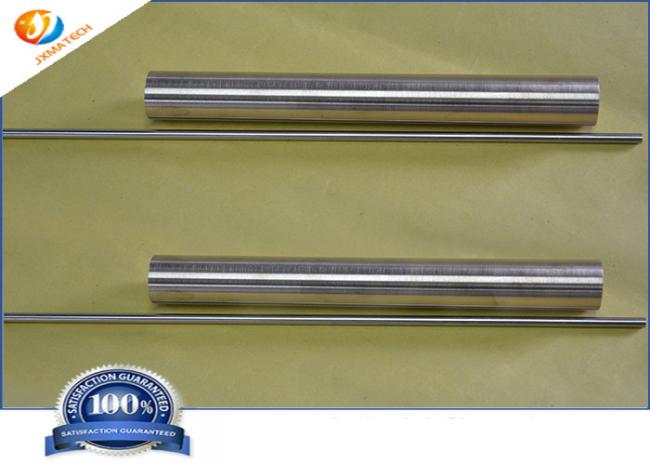

Copper Tungsten Electrodes Picture:

Specification

Name:		Copper Tungsten Electrodes
W content:		Cu-W75,Cu-W80,Cu-W85,Cu-W90,Cu-W95
Item:		plate, bars, tubes and other you required

Brand	Chemical content (%)				Density (g/cm3)	Resistance (uΩ/cm)	IACS (%)	Hardness
	Cu		Impurity	W
Cu-W75	25±2		0.5	Other	16.7	4.5	38	1912
Cu-W80	20±2		0.5	Other	17.19	5.0	34	2158
Cu-W85	15±2		0.5	Other	17.74	5.7	30	2354
Cu-W90	10±2		0.5	Other	18.26	6.5	27	2550
We can produce various specifications according to your requirement.

Application Tungsten copper Alloy (W-Cu alloy) is the composite of tungsten and copper which own it excellent performance of tungsten and copper. It is used widely in such industries as engine, electric power, electron, metallurgy, spaceflight and aviation.
