Wnicu Wnife Tungsten Alloy Balancing Weight Tungsten Heavy Alloy

Tungsten Alloy Balancing Weight are superior products for car balancing and weighing. Tungsten alloys are 3.2 times heavier than lead-free weighting materials commonly used in automobiles, allowing great flexibility in automotive design.

Compared to square tungsten rods, tungsten alloy cylinders are more popular because of easier machining and production. It is easier to remove from the die after stamping, with less damage. more suitable for further processing.

Application of Tungsten Heavy Alloy

Balance weights, such as tungsten sinker bars, heavy metal boring bars, logging brackets, competition weights, vibration reduction, ship crank camshafts, dynamic balance weights, etc.

Nuclear radiation protection screens, such as PET syringe screens, vial screens, isotope containers, FDG containers, multi-leaf collimators, etc., resistance welding electrodes

High voltage electrical contacts

Alternative materials for uranium

·Electric heating upsetting anvil

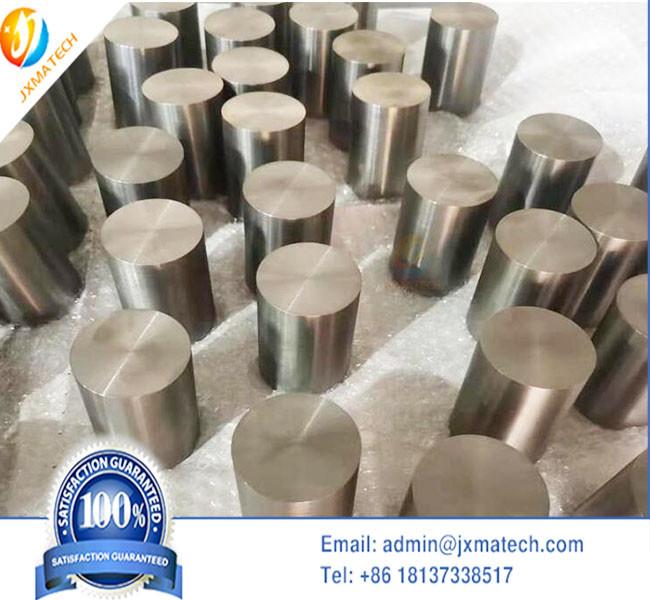

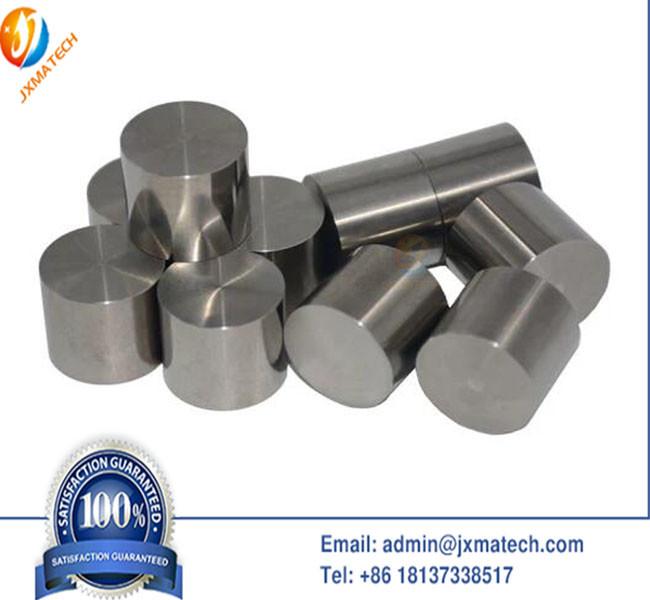

Tungsten Alloy Balancing Weight Picture:

1.Material: W90-97NiFe(Magnetic) & W90-97NiCu(Nonmagnetic)
2.Density:16.8-18.8g/cm3
3.Size:
rod dia(1.5 -200) x Length300mm Plate: 0.1min Thickness*W*L

4.Property of tungsten alloy

AMST 21014 class 1
90%WNiFe, 90%WNiCu
Density : 17.0
Hardness: 32HRC max
Elongation: 5-20%

AMST 21014 class 2
92.5%WNiFe, 92.5%WNiCu
Density : 17.2
Hardness: 33HRC max
Elongation: 5-15%

AMST 21014 class 3
95%WNiFe, W95NiCu
Density : 18.0
Hardness: 34HRC max
Elongation: 3-10%

AMST 21014 class 4
97.5%WNiFe, W97.5NiCu
Density : 18.85
Hardness: 35HRC max
Elongation: 1-8%

Technical datasheet for Tungsten Alloy Balancing Weight
