90% WNiFe WNiCu Machined Tungsten Alloy Bolts Nuts

Price Negotiable

Price: Negotiable

MOQ: 10 kg

Delivery Time: 15-20 days

Brand: JINXING

Product Description

90% WNiFe WNiCu Machined Tungsten Heavy Alloy Nuts

Tungsten Heavy Alloy Nuts are made of tungsten base (tungsten content is generally 80%~98%) and a small amount of nickel, iron, copper, cobalt, molybdenum, chromium and other elements. The density of gravity tungsten alloy is as high as 15.20~18.70g/cm3, also known as gravity tungsten alloy or high-density alloy material. Because tungsten alloy weighs more than twice as much as steel.

Tungsten Heavy Alloy Nuts SPECIFICATION & CHEMICAL COMPOSITIONS

Chemical Composition	90%W			93%W			95%W		97%W
State	Sinter	Vacuum	Forge	Sinter	Vacuum	Forge	Sinter	Vacuum	Sinter	Vacuum
Density (g/cc)	16.85-17.25			17.15-17.85			17.75-18.35		18.25- 18.85
Hardness (HRC)	32 Max	30 Max	40 Min	33 Max	31 Max	40 Min	34 Max	32 Max	35 Max	33 Max
Tensile Strength (Max)	770 Min	900 Min	1400 Max	770 Min	910 Min	1440 Max	735 Min	920 Min	700 Min	850 Min
Yield Strength (Mpa)	620 Min	620 Min	1280 Max	650 Min	650 Min	1340 Max	650 Min	650 Min	-	-
Elongation (%)	5 Min	15 Min	5 Min	5 Min	12 Min	3 Min	3 Min	12 Min	2 Min	6 Min

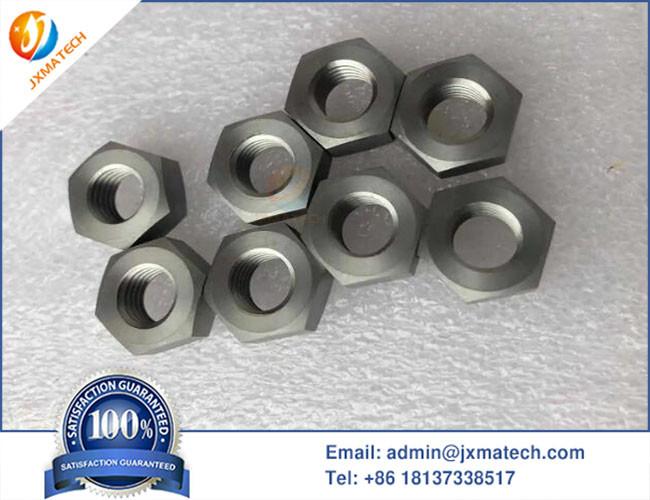

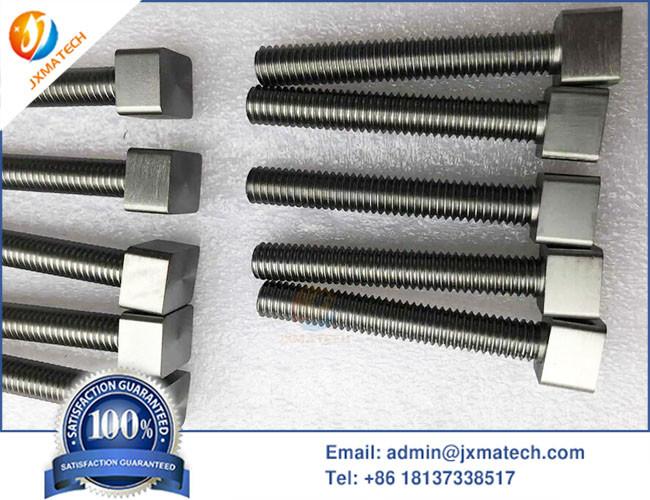

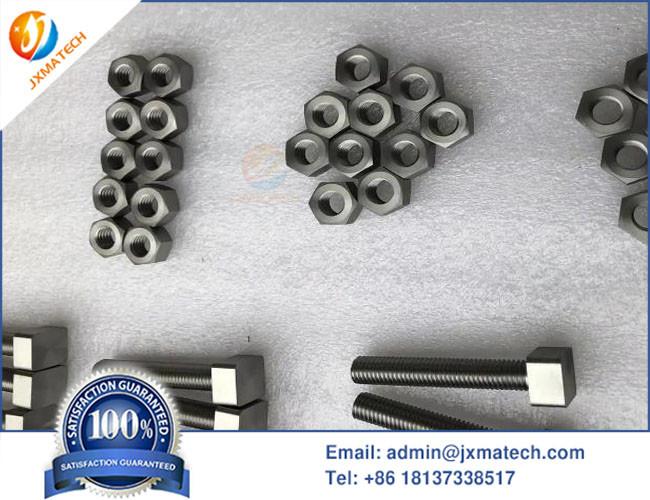

Tungsten Heavy Alloy Nuts Picture:

Introduction and Feature of Tungsten Heavy Alloy Nuts

Tungsten alloy has a series of excellent properties, high specific gravity: general gravity lead 16.5-18.75g/cm3, high strength: tensile strength 700-1000mpa, strong light absorption capacity: 30-40% higher than general gravity lead, thermal conductivity: 5 times that of modulus steel; low thermal expansion coefficient: only 1/2-1/3 of carbon steel, good electrical conductivity, good welding and processing skills.

A common process for making heavy tungsten alloys involves mixing the desired amount of tungsten, iron, nickel or copper powder, followed by cold pressing and liquid phase sintering to near full density. During the liquid phase treatment, the matrix tungsten alloy melts and some tungsten enters the solution to form a microstructure, so that larger tungsten particles (20-60m) are dispersed in the matrix alloy.

Application of Tungsten Heavy Alloy Nuts

The dual source range densitometer uses tungsten alloy as a shielding element to measure the oil content of oil layers several kilometers below the surface. The instrument has been widely used because of its small volume, high precision and long service life.
