0.3MM -4MM Tzm Sheet Plate In High Temperature Furnace
Tzm Sheet, Tzm Plate in High Temperature Furnace
introduction:
Tzm Sheet is a special alloy based on Mo. Fine dispersed Ti-carbides are the reason of excellent strength properties at temperatures up to 1400°C.
The average nominal chemical composition in weight%:
0.40-0.55 Ti
0.06-0.12 Zr
0.01-0.04 C
remainder Mo.Compared with pure Mo,Tzm Sheet has the following advantages:
1) better creep resistance
2) higher recrystallization temperature
3) better high-temperature strength
4) better welding properities
5) higher tensile strength
Tzm Sheet Specification
| Molybdenum sheets/plates | ||||||
| Thickness(mm) | tolerances(mm) | width(mm) | tolerances(mm) | length(mm) | tolerances(mm) | flatness(%) |
| 0.3mm | ±0.02 | 600mm | ±1mm | 2000mm | ±5mm | < 2% |
| 0.4mm | ±0.03 | 600mm | ±1mm | 2000mm | ±5mm | < 2% |
| 0.5mm | ±0.03 | 600mm | ±1mm | 2000mm | ±5mm | < 2% |
| 0.8mm | ±0.05 | 600mm | ±1mm | 2000mm | ±5mm | < 2% |
| 1mm | ±0.06 | 600mm | ±1mm | 2000mm | ±5mm | < 2% |
| 1.5mm | ±0.06 | 600mm | ±1mm | 2000mm | ±5mm | < 2% |
| 2mm | ±0.06 | 600mm | ±1mm | 2000mm | ±5mm | < 2% |
| 3mm | ±0.2 | 500 | ±1mm | 500 | ±2mm | < 2% |
| 4mm | ±0.2 | 500 | ±1mm | 500 | ±2mm | < 2% |

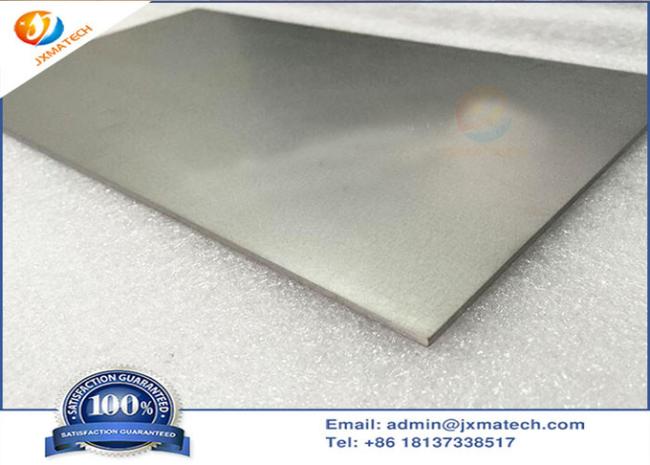

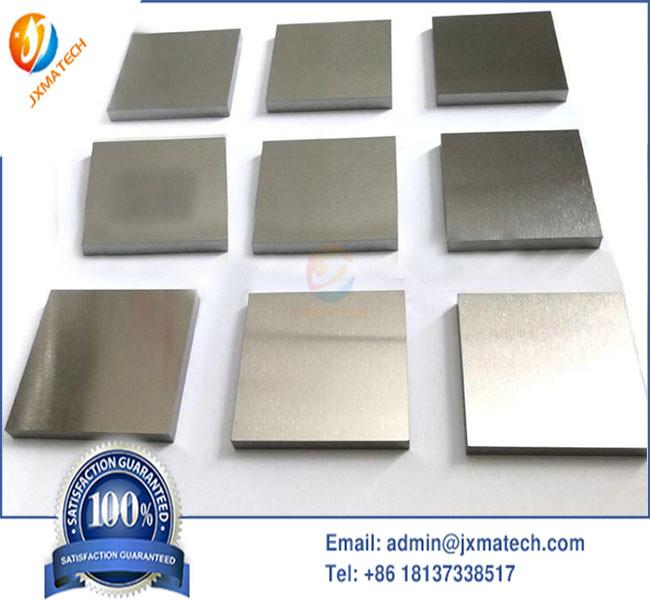

Tzm Sheet Picture:
![]()
Use area
1) Sintering and heat treatment furnaces.
2) Boats for annealing and sintering process
3) Used in high-temperature furnace construction and metal working.
