Purity 99.95% Molybdenum Alloy Tzm Tube 10.2 G / Cm3
Molybdenum TubeMolybdenum Tube Molybdenum Tube purity 99.95% Molybdenum alloy Tzm Tube
Molybdenum tubes specification:
1) Purity≥99.95%
2) Density:10.2g/cm3
3) Size:As your need, OD140-180mm, ID125-135mm, Length<300mm
4) Flatness tolerance:<4um
5) Roughness:Ra1.6-Ra0.8
6) Surface: polished, ground.
1. Purity: Mo>= 99.95%
2. Standard: GB/T 4182 or ASTM
3. Property specification
1) high melting point, high strength, 2) smooth and clean surface, 3) good conductions, small linear expansion coefficient and good heat-resistance.
Molybdenum Tube Chemical composition
| Content of molybdenum | Content of all other elements | Content of each element |
| ≥99.95% | ≤0.05% | ≤0.01% |

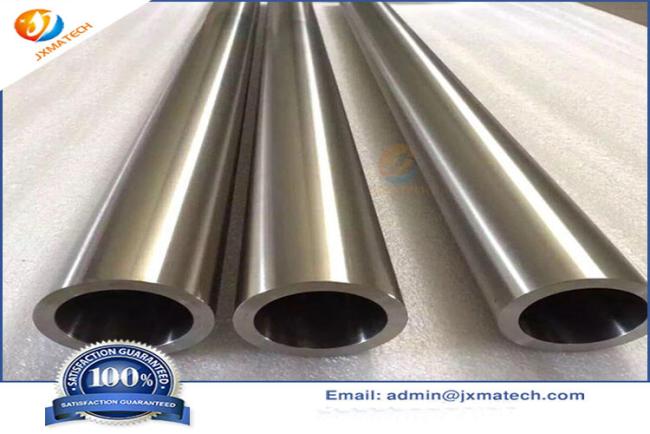

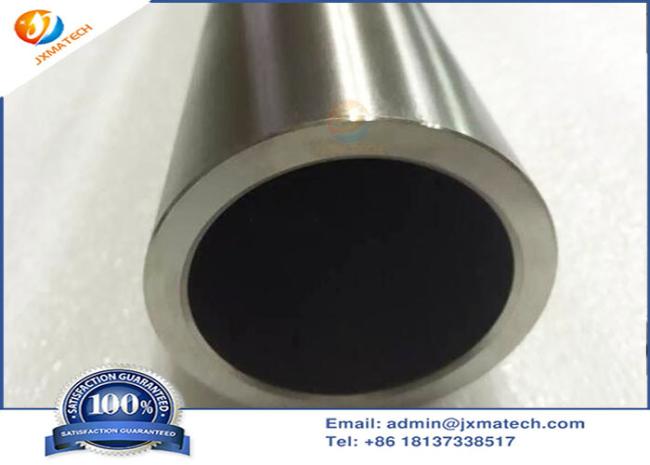

Molybdenum Tube Picture:
5. Molybdenum tube diameter:
| Diameter | Wall thickness | Length |
| 30-50 | 2~10 | <1300 |
| 50-100 | 3~15 | |
| 100-150 | 3~15 | |
| 150-200 | 5~20 | |
| 200-300 | 8~20 | |
| 300-400 | 8~30 | |
| 400-450 | 8~30 | |
| 450-500 | 8~30 |
6. Application of Molybdenum tube
It is mainly used in high temperature instruments, thermocouple protection tube, heat pipe, sintering pipe, protection tube, etc. and used in vacuum high temperature industry, electronic industry, sapphire thermal field and industrial production
