Logo Emblem Rear View Camera Retrofit For Volkswagen 700TV Line Resolution
Price:
Negotiable
MOQ:
20PCS
Delivery Time:
7~14 WORKING DAYS
Brand:
LEADSIGN
Product Description

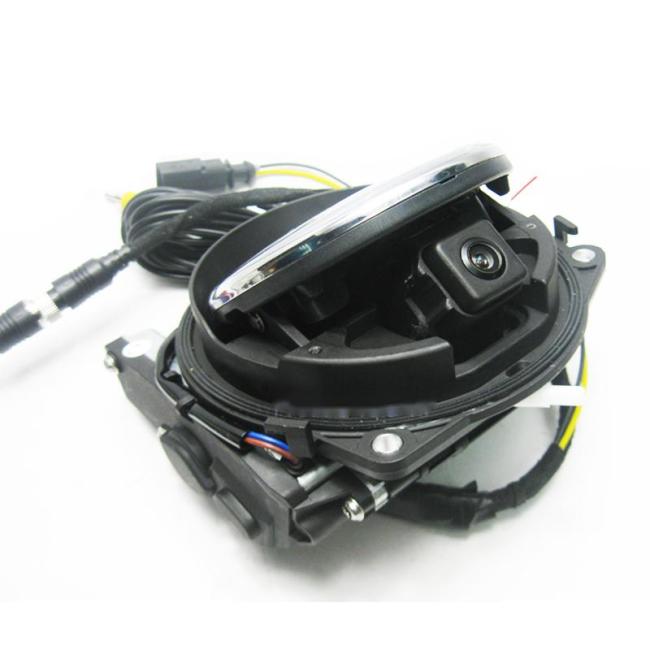

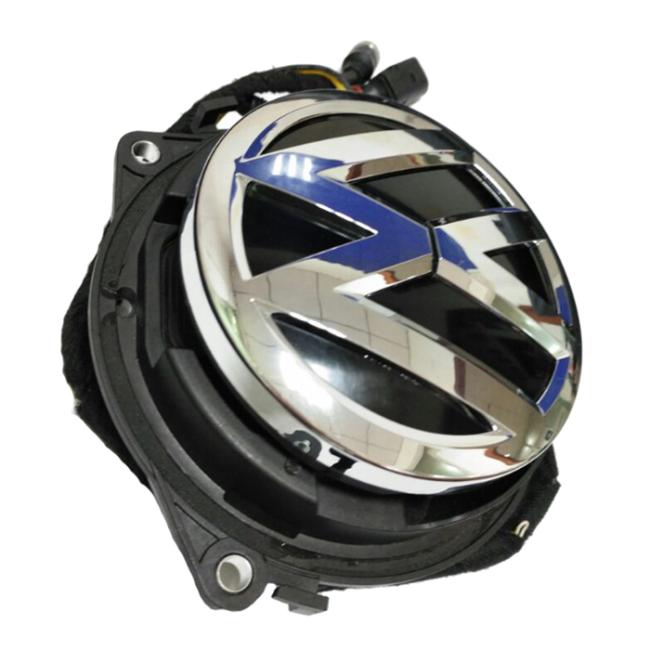

Flip Logo VW Badge Rear View Camera For Volkswagen Passat B6 B7 B8 CC GOLF 6 7 POLO Beetle Auto emblem camera Flipping logo CCD
This camera has High quality and we sell at a competitive price
1. Please check your car rear logo have a flipping function. and this camera diameter is:110mm
2. if your car DVD player is aftermarket, your stereo have Camera Input, it can plug and play.
3. If your car has the RGB port (such as RCD510, RNS510, RNS315, it need to add the RGB box)
4. The TV system default is :NTSC ,if need PAL,please leave message.

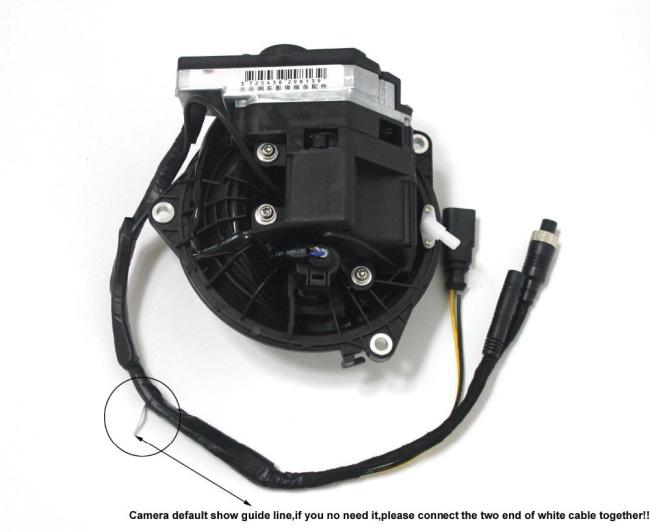

5. Cut the small white cable, it will show the parking line, please noted
6. Keep your car open trunk function via VW logo
7. Polo and GOLF5 MK5 need modify, Polo need a bracket
Specification:
|
Image sensors: |
1/3" color CCD |
|
TV System: |
NTSC default & PAL request |
|
Minimum illumination: |
0.1Lux |
|
White Balance: |
Auto |
|
Video Color: |
Colorful |
|
Waterproof Class: |
ip68 |
|
Effective Pixels: |
728(H)*582(V)(NTSC) |
|
Resolution: |
600TV lines |
|
Video Output: |
1.0Vp-p,75 |
|
Electronic Shutter: |
1/60(NTSC)-1/10000S |
|
S/N ratio: |
Better Than 48db |
|
Lens Angle: |
170deg |
|
Operation Temperature: |
mdash20degC~+80degC RH95% |
|
Storage Temperature: |
mdash40degC~+100degC RH95% |
|
Working Power (DCV): |
12V |
|
Current consumption: |
90mA Max |
|
Power: |
DC 12V |
|
Video cable is RCA connector |
RCA |
Package including:
-- Special Rearview Camera
-- Power av cable
-- Extension cable (6 meters)
-- Water Tube
Product details:
