NOTE：If you place an order without telling the model, quantity and tooth, we will send SF-5 by default
Customized High Quality Power Tools Parts Gold Coated Electric Hardware Grinding Tool Yellow Coating Tungsten Carbide Burrs
Price:
$2.99-5.99
MOQ:
10
Delivery Time:
Negotiable
Brand:
KINGTOOLS
Product Description
Products Description
We Are Factory | We have 20 years of experience in the production and development of cemented carbide | ||||||
Name | Factory wholesale sales Carving Grinder Bit Engraving Rotary File Tungsten Carbide Burr | ||||||
Brand | KINGTOOLS | ||||||
Shank | HRA 89-92.5 hardness | ||||||
Material | 100% new raw materials | ||||||
Speed | 15000-45000Turn/min | ||||||
Grade | YG6, YG7 | ||||||
Certificate | ISO9001:2008 | ||||||
Customized | OEM & ODM | ||||||
Advantage of our carbide burrsChina cemented carbide production and wholesaler, factory source supply, large inventory, instant delivery, follow the store to enjoy discounts
1、100% quality and brand new.
2、Can Process a variety of metal and non-metal, processing hardness would up to HRC70.
3、In a great part of the work, it can replace the petiole small wheel, and no dust pollution. High production efficiency, the processing efficiency is several times higher than file, nearly 10 times higher than small wheel stalk.
3、In a great part of the work, it can replace the petiole small wheel, and no dust pollution. High production efficiency, the processing efficiency is several times higher than file, nearly 10 times higher than small wheel stalk.
4、High product processing quality, high finish, can process out a various of high-precision mold cavity.
5、Long life, the durability is 10 times higher than high-speed steel cutting tool, 200 times higher than small grinding wheel.
6、Easy to use, safe and reliable, can reduce labor intensity, improve the working environment.
6、Easy to use, safe and reliable, can reduce labor intensity, improve the working environment.
7、Suitable for processing these metal and non-metal, such as cast iron, cast steel, bearing steel, high carbon steel,
chrome-nickel alloy, bronze, brass, and ceramic tile, marble, jade, bone, etc.
chrome-nickel alloy, bronze, brass, and ceramic tile, marble, jade, bone, etc.
8、Tungsten carbide burr is used widely in the shipping construction, auto engine porting and foundry fabrication. With its high rotating speed and hardness
Sample testing contact us for free samples （Customed）
Miniature & Regular Sizes Single cut & Double cut & Aluminum Cut & Diamond Cut & Coarse Cut etc
Speed /RPM
1.6mm or 1/16" 25,000 - 35,000
2.35mm or 3/32" 25,000 - 35,000
3mm or 1/8" 25,000 - 35,000
6mm or 1/4"25,000 - 35,000
12mmor 1/2" 25,000 - 35,000
16mm or 5/8"25,000 - 35,000
Rotating Speed
The speed at which you use your carbide bur in your rotary tool will depend on the material you're using it on and the contour being produced but it's safe to say you do not need to exceed speeds of 35,000 RPM. The table below shows some approximate speeds.
1.100% Solid High Quality Flat Bottom Silver Welding，Disposable material tungsten carbide rejects old material
2. Support head diameter and head toothing, shank length and diameter customization
3. Support Support product model, size customization of boxes, Logos, labels, coatings, etc.
4. We are the largest cemented carbide manufacturer in China, and our products are exported to 50 countries and are well received
5. We have 4 factories, each factory covers an area of 20,000 square meters, and the factory price is sold
6. We only produce high quality carbide burr with the same quality as ATA PFERD to support product testing
Metric Size & Inch Size

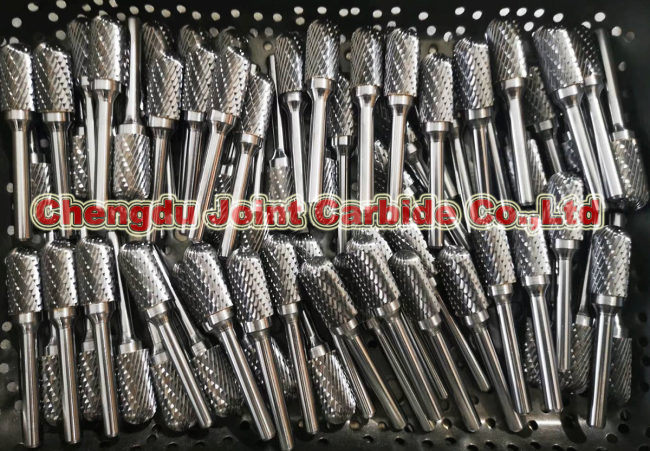

SA:Cylinder Shape Burrs
A0616MX06-45 A0820MX06-45 A1020MX06-45 A1225MX06-45 A1625MX06-45 A2025MX06-45 A2525MX06-45

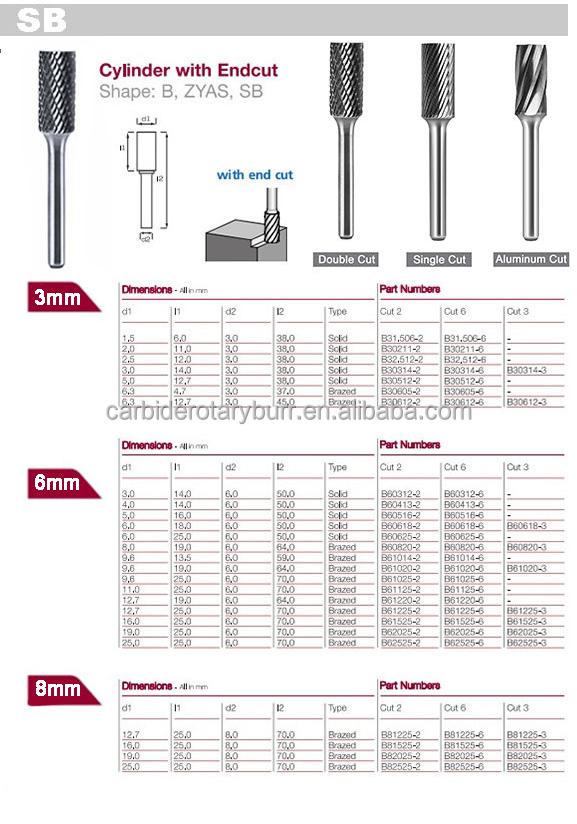

SB:Cylinder Shape with End Cut Burrs
B0616MX06-45 B0820MX06-45 B1020MX06-45 B1225MX06-45 B1625MX06-45 B2025MX06-45 B2525MX06-45

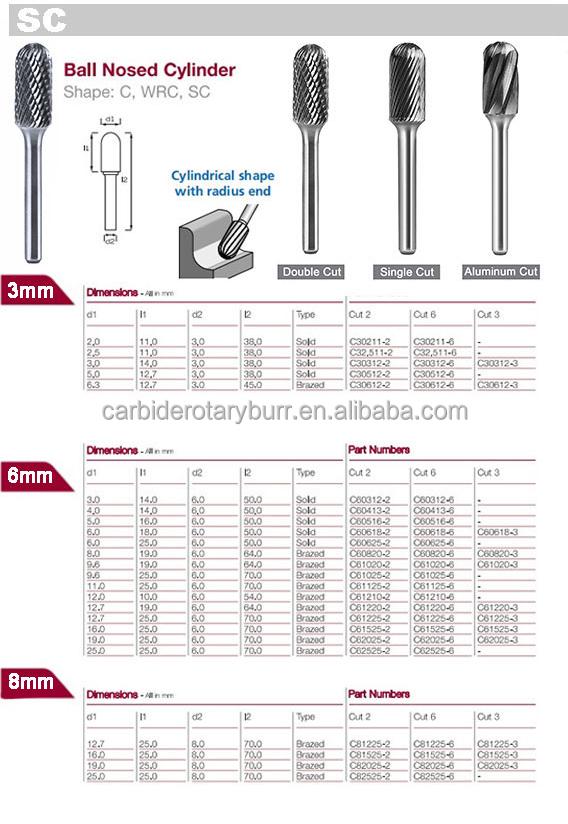

SC:Cylinder Shape with Radius End Burrs
C0616MX06-45 C0820MX06-45 C1020MX06-45 C1225MX06-45 C1625MX06-45 C2025MX06-45 C2525MX06-45

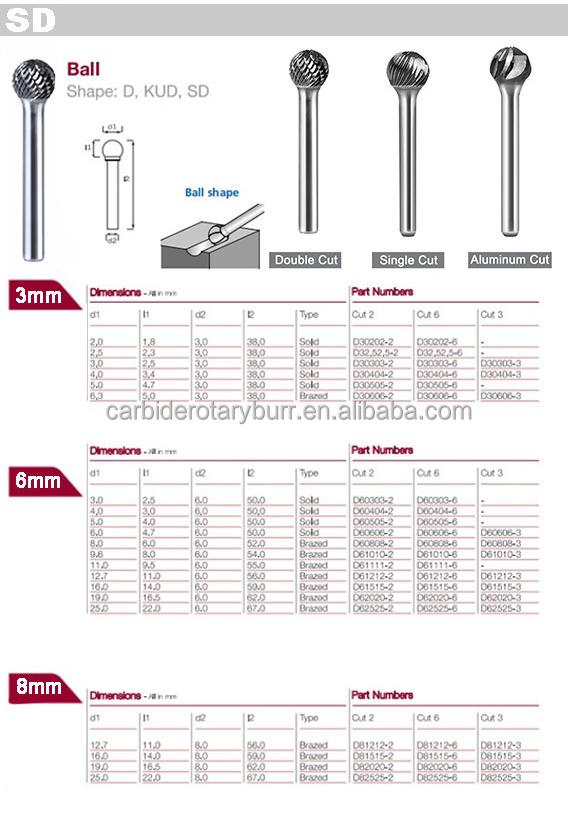

SD:Ball Shape Burrs
D0605MX06-45 D0807MX06-45 D1009MX06-45 D1210MX06-45 D1614MX06-45 D2018MX06-45 D2521MX06-45

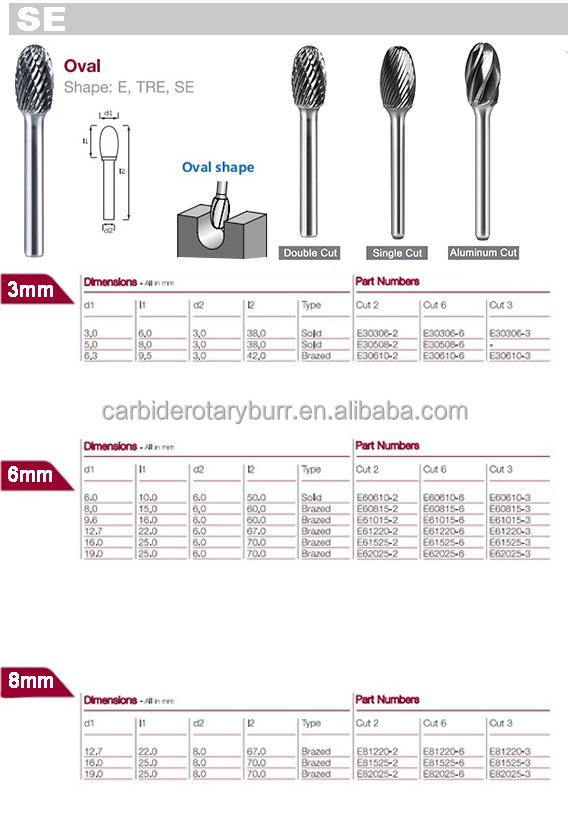

SE:Oval Shape Burrs
E0610MX06-45 E0813MX06-45 E1016MX06-45 E1220MX06-45 E1625MX06-45 E2025MX06-45

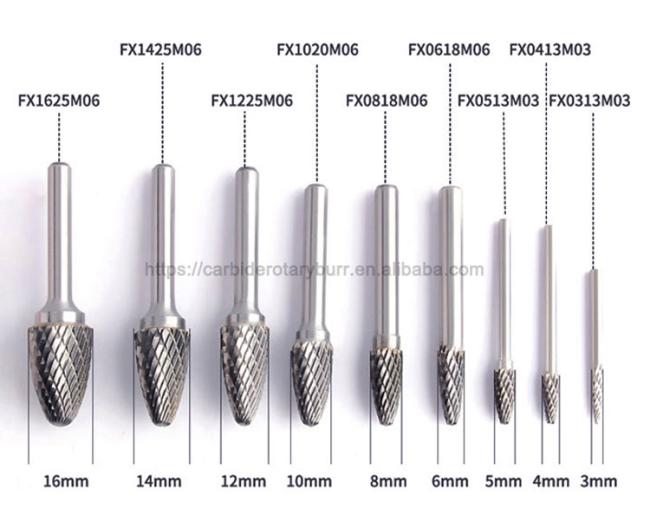

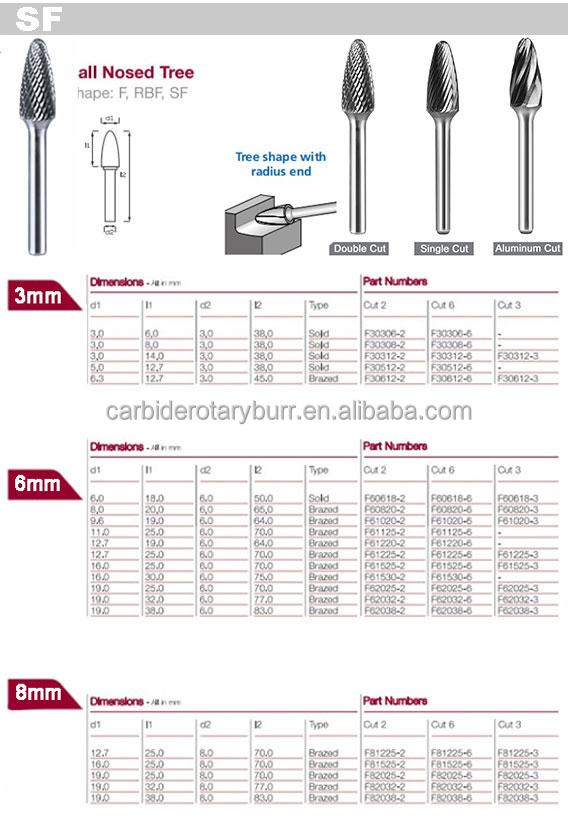

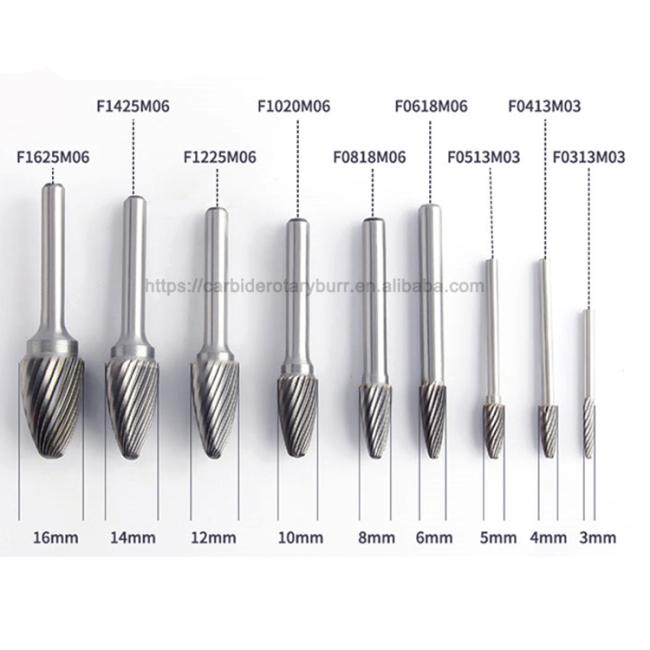

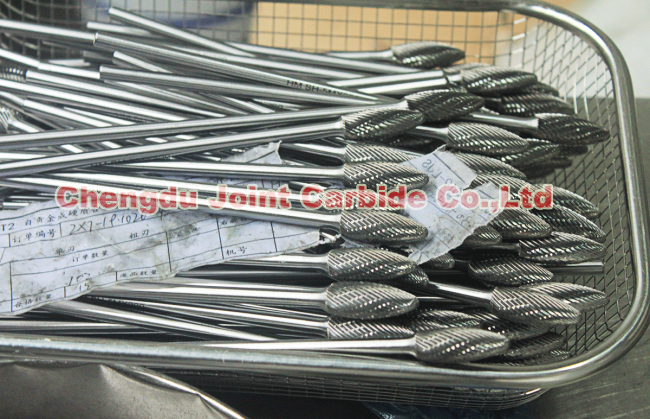

SF:Tree Shape with Radius End Burrs
F0618MX06-45 F0820MX06-45 F1020MX06-45 F1225MX06-45 F1625MX06-45 F2032MX06-45 F2525MX06-45

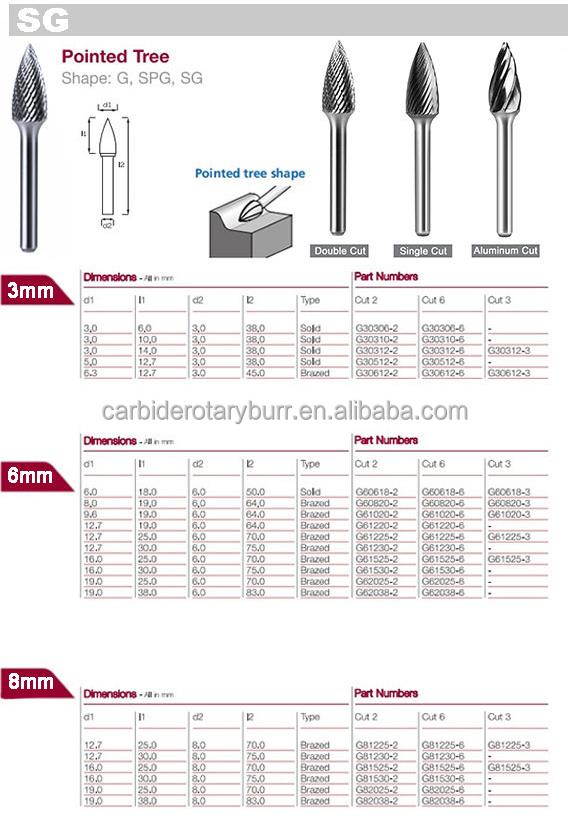

SG:Tree Shape with Pointed End Burrs
G0618MX06-45 G0820MX06-45 G1020MX06-45 G1225MX06-45 G1625MX06-45 G1825MX06-45 G1925MX06-45

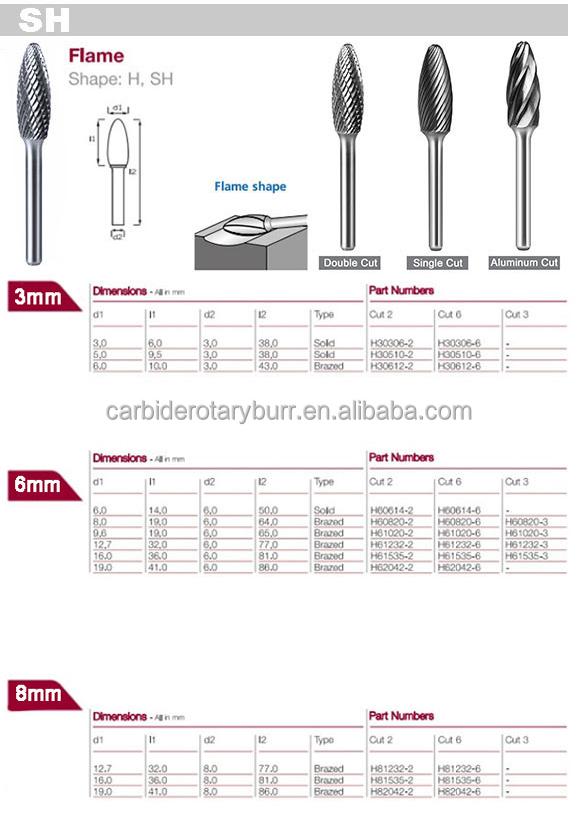

SH:Flame Shape Burrs
H0618MX06-45 H0820MX06-45 H1025MX06-45 H1232MX06-45 H1636MX06-45 H1941MX06-45

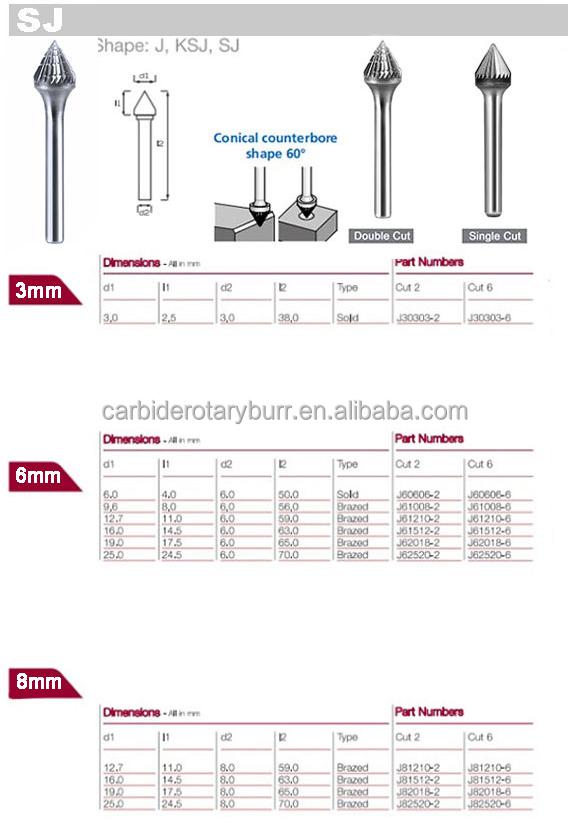

SJ:60 Cone Shape Burrs
J0603MX06-45 J0804MX06-45 J1005MX06-45 J1206MX06-45 J1608MX06-45 J2512MX06-45 J3517MX06-45

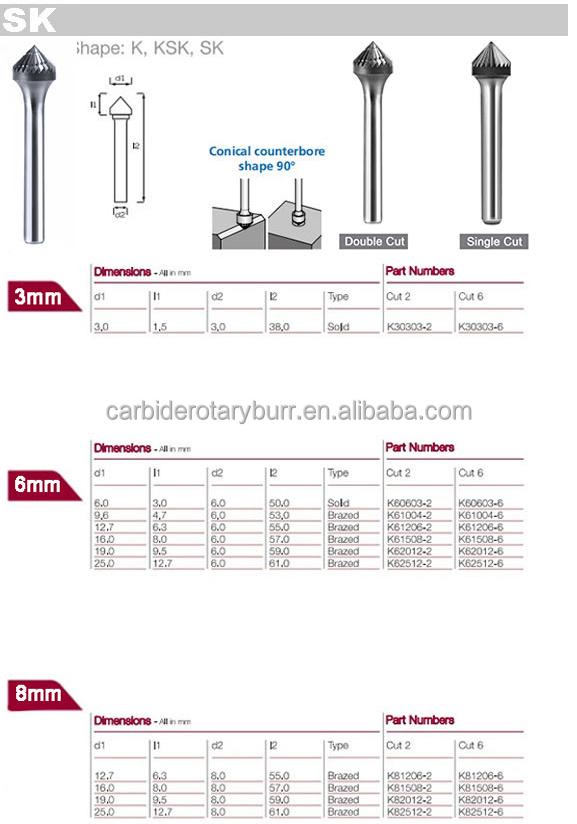

SK:90 Cone Shape Burrs
K0603MX06-45 K0804MX06-45 K1005MX06-45 K1206MX06-45 K1608MX06-45 K2512MX06-45 K3517MX06-45

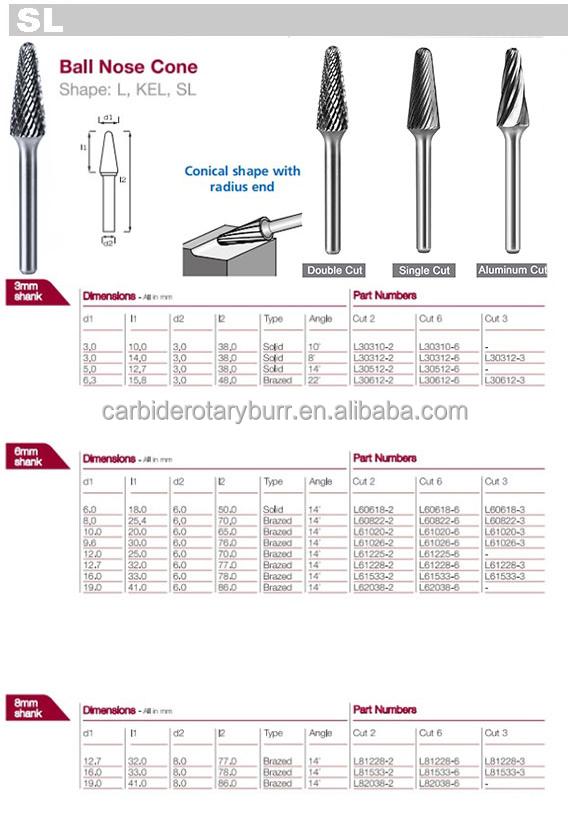

SL:Taper with Radius End Burrs
L0616MX06-45 L0822MX06-45 L1025MX06-45 L1228MX06-45 L1633MX06-45 L2031MX06-45

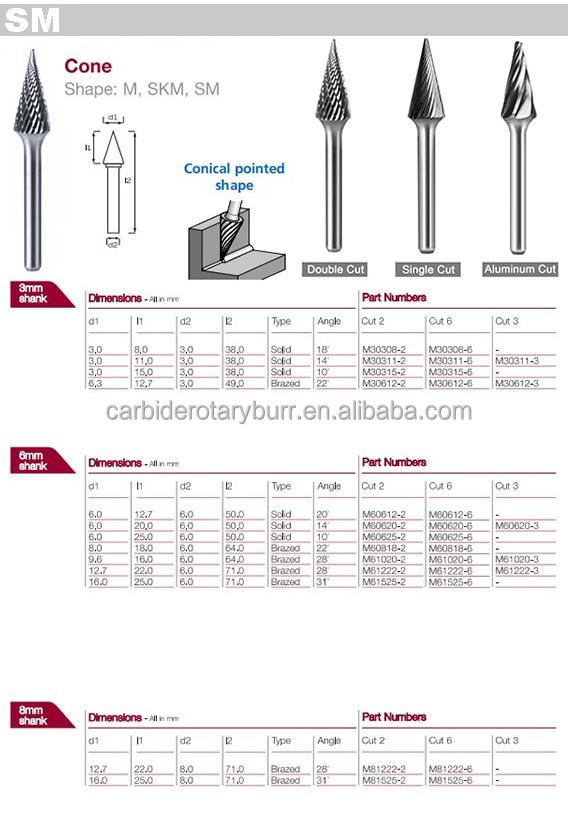

SM:Cone Shape Burrs
M0618MX06-45 M0820MX06-45 M1020MX06-45 M1225MX06-45 M1625MX06-45 M1925MX06-45

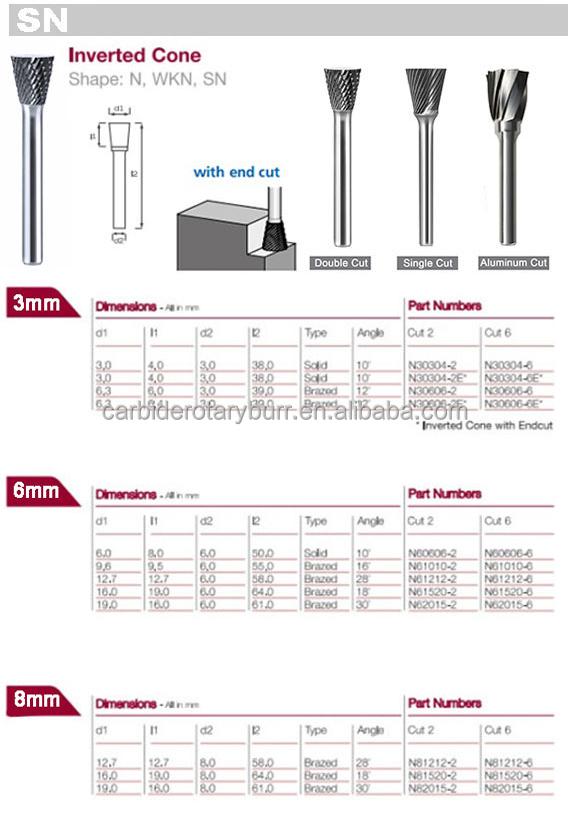

SN:Inverted Cone Shape Burrs
N0607MX06-45 N0809MX06-45 N1010MX06-45 N1213MX06-45 N1616MX06-45

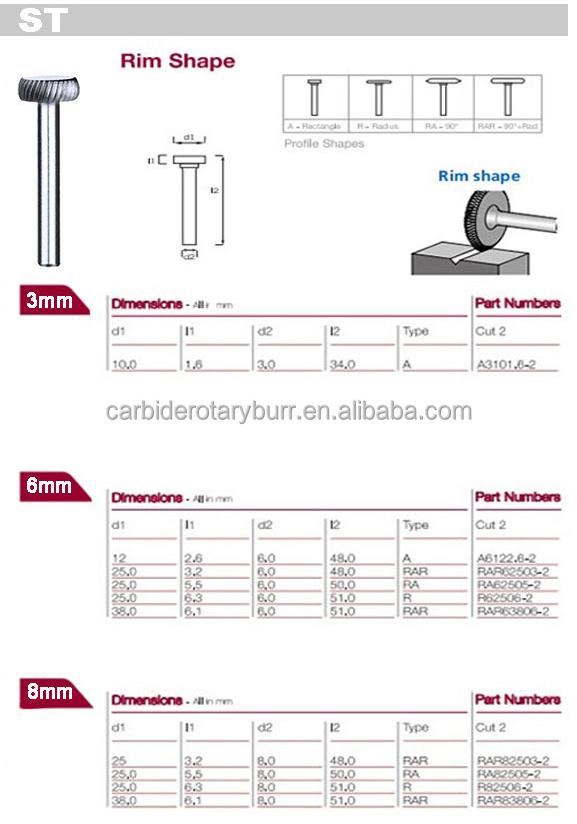

ST:RAR Burrs
RAR0607MX06-45 RAR0809MX06-45 RAR1010MX06-45 RAR1213MX06-45 RAR1616MX06-45
Head Cut & Shank Dia Available
Burr Shank Dia. Available
Support Customized
3.0mm /3.17mm (1/8") Shank Diameter
Applicable to carbide burr cutting head diameter range 1.0-6.0mm.
Applicable to carbide burr cutting head diameter range 1.0-6.0mm.
6.0mm /6.35mm (1/4") Shank Diameter
Applicable to carbide burr cutting head diameter range 6.0-25.0mm.
8.0mm /7.93mm (5/16") Shank Dia
Applicable to carbide burr cutting head diameter range 12.0-25.0mm.
10.0mm /9.52mm (3/8") Shank Dia
Applicable to carbide burr cutting head diameter range 16.0-25.0mm.
12.0mm /12.7mm(1/2") Shank Diameter
Applicable to carbide burr cutting head diameter range 6.0-25.0mm.
8.0mm /7.93mm (5/16") Shank Dia
Applicable to carbide burr cutting head diameter range 12.0-25.0mm.
10.0mm /9.52mm (3/8") Shank Dia
Applicable to carbide burr cutting head diameter range 16.0-25.0mm.
12.0mm /12.7mm(1/2") Shank Diameter

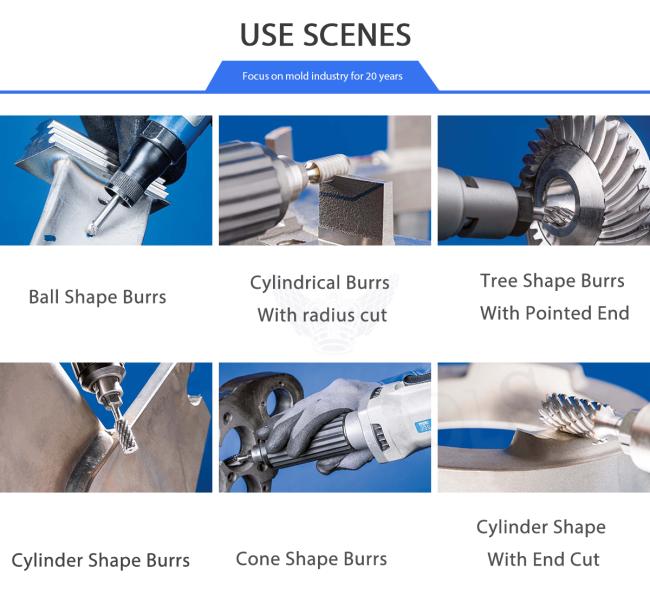

Head Cut Different Usage Scenarios Support Customized
Head Diameter :3mm-25mm(1/8"-1”)
Single-cut burs ：are for general purpose work and provide good material removal.Double-cut burs ：produce smaller chips for greater operator control on applications such as stainless steels and ferrous materials.
Aluma-cut burs ：have a wide flute design for easy stock removal without loading on applications such as nonferrous
Standard-cut burs ：are widely uesed and leave a fine finish
Our Advantages
Hot Sale Product

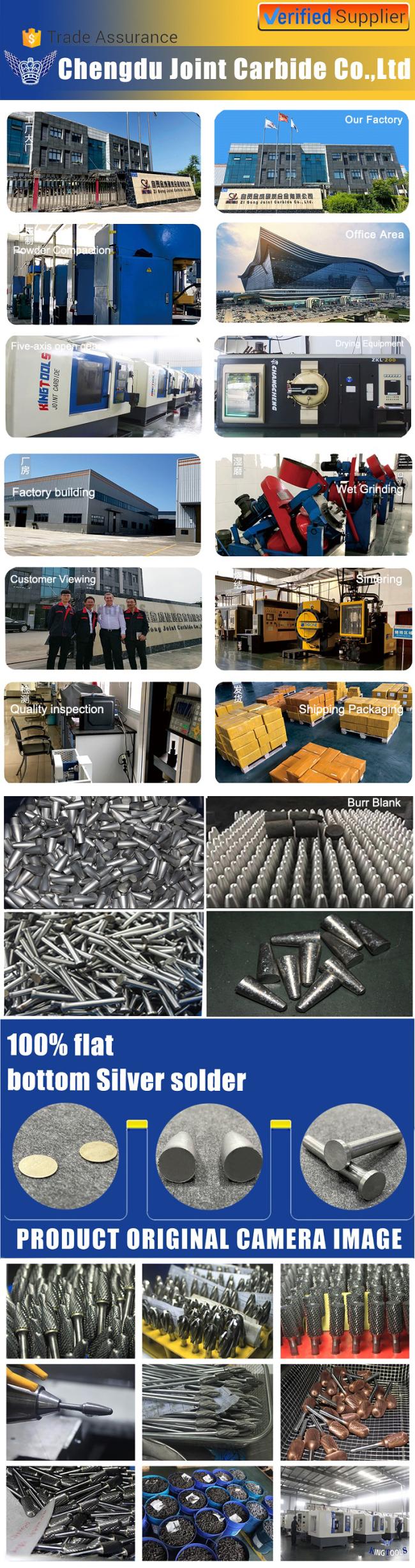

Company Profile
1、Our Company is committed to providing high-precision, high-speed and efficient metal polishing overall solutions and services for the machinery manufacturing industry. The company introduced the most advanced international five-axis five-linkage CNC tool grinder, three-coordinate tool detector and other equipment from Germany. The aim is to produce high-quality, internationally competitive products using internationally advanced equipment. At present, our company has become the largest rotary file production base in the country, with a mature R&D team and management team in China, and a stable supply chain. As a metal cutting tool, the rotary file has been exported to Europe, North America, South America and a small number of Southeast Asian countries.
2、A few days ago, the company has completed the accumulation of various infrastructure and technology research and development.Since 2020, our company has added 100 five-axis and five-linkage rotary grinders. By 2023, our company will invest a total of 300 five-axis and five-linkage rotary grinders. Grinding machine (total value 150 million yuan). By then, our company will become the world's largest supply base for rotary files.
3、Our mission: to provide the best overall polishing solution for the machinery manufacturing industry;
Our vision: to become the world's largest production base for grinding and cutting tools;
Our values: pragmatic, honest, positive, enterprising

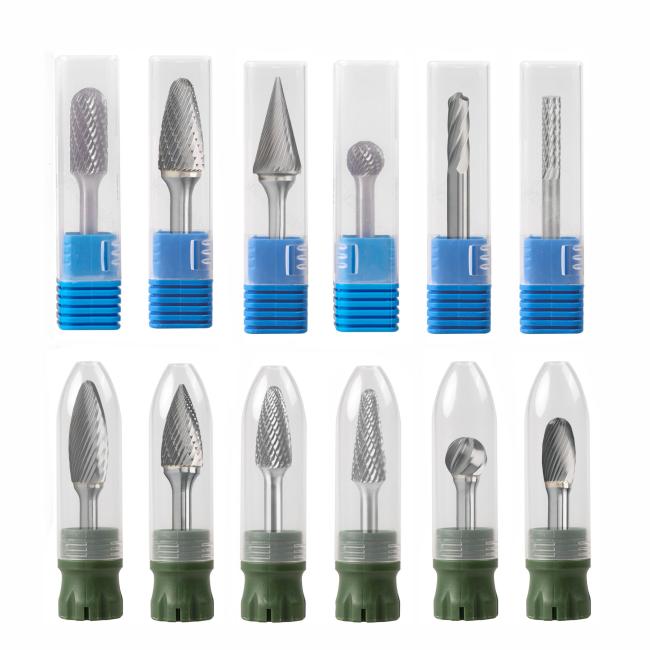

Packing & Shipping
FAQ
Q1: Are you a factory or a trading company?
A1: We are the source of the largest cemented carbide factory in China, a supplier integrating R&D, production and sales, with more than 23 years of production and R&D experience.
Q2: What products do you sell?
A2: Main sales: tungsten carbide rotary file burr, blank, tire file, tungsten carbide semi-finished product, milling cutter, bar, etc.
Q3: How does your factory do in terms of quality control?
A3: All products will adopt double quality inspection before shipment: 100% inspection by human + robot, provide high-quality products, and also shoot video or pictures to send to you.
Q4: When can I get the price?
A4: We will arrange a one-to-one quotation from the sales manager within 2 hours after receiving your inquiry.
Q5: How can I get samples?
A5: Contact us, we can provide you with free samples for grinding test, you can choose any model.
Q6: What are your sales models?
A6: Supply for major e-commerce platforms, such as: Amazon, eBay, AliExpress, Google website, etc.
Q7: What is the mode of transportation?
A7: According to the weight of the goods, we can transfer by express, air and sea, including DHL, UPS, TNT and FEDEX.
