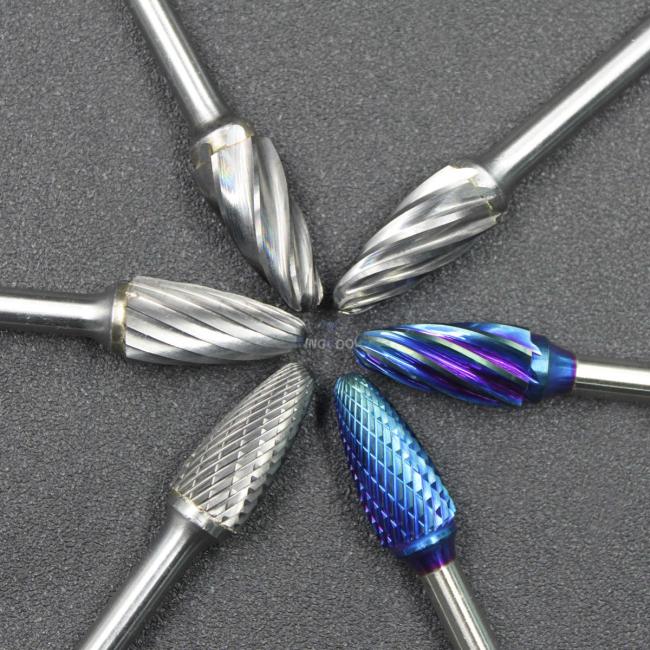

YG6 YG8 Grade Dia 6mm Tungsten Carbide Rotary Burr SE Type
6-25mm Dia Double Cut Tungsten Carbide Bur , Carbide Rotary Files YG6 / YG8 / YG10x
Recommended Grade:
YG8, YG10X for carbide head,steel for shank diameter.
Size Rage
Head dia 3-35mm;
Shank dia 3,6.8mm
Increase length are ok.
Tolerence
Head diameter is +0.3 to +0.5mm;
Head cutting part is +0.5 to 1.0mm;
Shank diameter is +0 to +0.04mm
Totel length is +-0.1mm
Sets for carbide cutters.
8 pcs in aluminum sets
8 pcs in plastic sets
The items can be selectable according to client demand.
Technical date
| S.N. | MATERIAL |
| 1a | Steel |
| 1b | Hard steels |
| 2 | Stainless steel |
| 3 | Cast iron |
| 4 | Titanium |
| 5 | Nickel |
| 6 | Copper/Copper alloys |
| 7 | Aluminum |
| 8 | Plastics |
| 9 | Cement |
Guide to running speeds
|
mat nr. MAX RPM |
3mm/0.123" 90,000 |
6mm/0.250" 50,000 |
10mm/0.375" 40,000 |
12mm/0.500" 35,000 |
16mm/0.625' 25,000 |
| 1a | 60,000-80,000 | 35,000-45,000 | 22,500-35,000 | 20,000-30,000 | 15,000-20,000 |
| 1b | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 2 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 3 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 9,000-20,000 |
| 4 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 5 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 6 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 3,000-20,000 |
| 7 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
| 8 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
| 9 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |

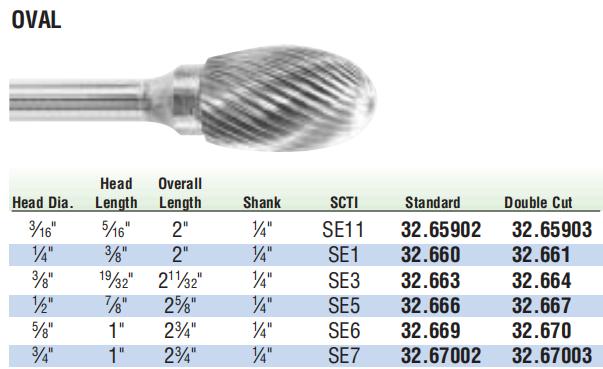

Introduction of Elliptical cylinder carbide burr/ Oval shaped /TRE burrs
Using Carbide Rotary Burrs is an effective way to realize merchanization in hand work operations, in the industries of airplane, ship building,automobile, machinery , chemistry etc. Carbide rotary burrs can be widely used in maching iron, steel casting, carbon steel, alloy steel, stainless steel, copper aluminium etc.
Advantage of Elliptical cylinder carbide burr/ Oval shaped /TRE burrs
1, For metal and non-metal (marble, bones and jade) process
2, Can replace the grinding wheel
3, High productive effeciency
4, Long life time with high wearable resistance
FAQ
1. Could you please send me your catalog with price list?
A: Yes, catalog is OK, but kindly tell US the item NO. you like, will send quotation list asap.
2. May Iorder small quantity of carbide products?
A:Different models have different MOQ.You'd better contact US to confirm.
3.Can you provide sample?
A:Yes, please feel free to tell US the item NO. You prefer,also your own design is welcome to make sample for you.
4.When can you send me the carbide products afthe payment?
A:Around 30 days.
5.What is your payment term and delivery terms?
A :Payment Terms: T/T in advance.
Delivery Terms: BY express,by air, by shipment or as per requirement.
6.What is your guarantee?
A:Before shipent our products will pass strict inspection, If any problem be found, detail photos need to be provide 20 days after
receving goods. After our confirmation, compensation will be offered accordingly.
