90KW 250mm Twin Screw Extruder Center Distance 186mm
Price:
USD 350000-450000
MOQ:
1 set
Delivery Time:
120 work days
Brand:
ADVS
Product Description
ORP-250/10 twin-screw evaporation extruder
1,SPECIFICATIONS:
| NO. | ITEMS | SPECIFICATIONS | QTY |
| 1 | Extruder | ORP-250/10 | 1 unit |
| 2 | Control system | MC-25A electric control cabinet | 1 set |
| 3 | Vacuum system | 1 set | |
| 4 | Heat conduction system | Oil circulation temperature control machine | 1 set |
| 5 | Parts | 1 set | |
| 6 | Special disassembly tool | 1 set |
2,TECHNICAL PARAMETERS:
| NO. | ITEMS | PARAMETERS |
| 1 | diameter | 246 mm (max) |
| 2 | L/D | 7.5 |
| 3 | DO/DI | 2 |
| 4 | Center distance | 186 mm |
| 5 | Power | 90 KW |
| 6 | Speed ratio | 1:4 |
| 7 | Gearbox speed ratio | 18.75:1 |
| 8 | Shaft A speed | 0-20 rpm |
| 9 | Shaft B speed | 0-80 rpm |
| 10 | Barrel length | 640 mm/unit |
| 11 | Effective volume | ≈ 160L |

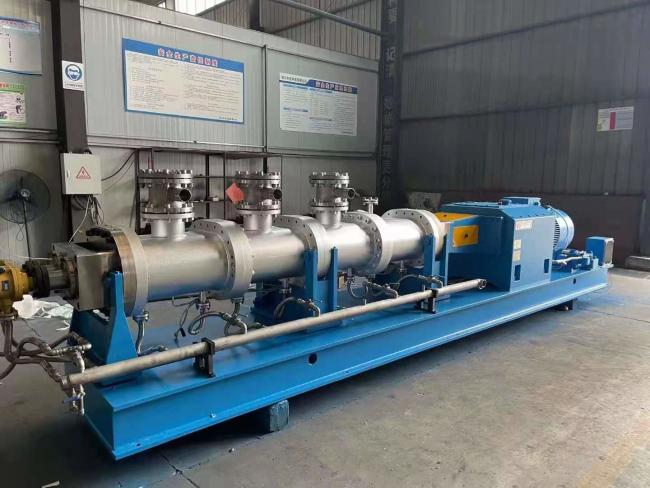

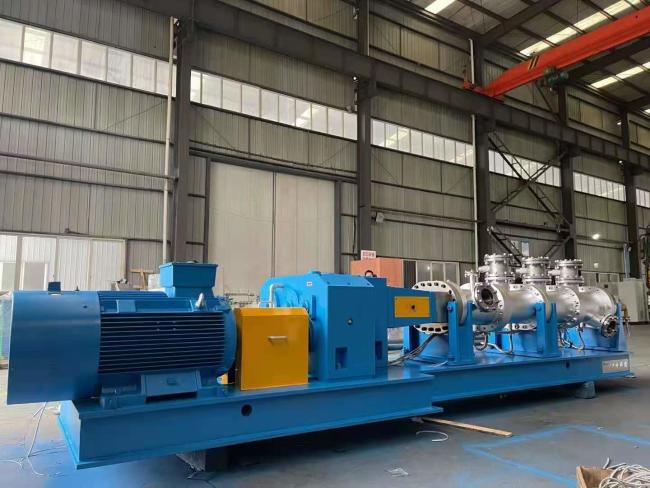

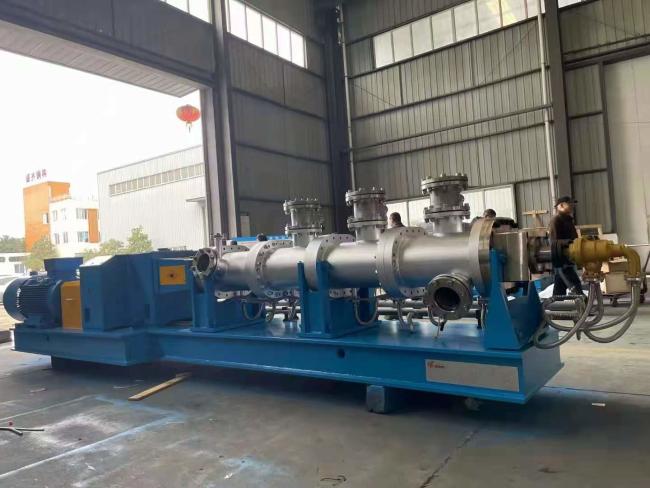

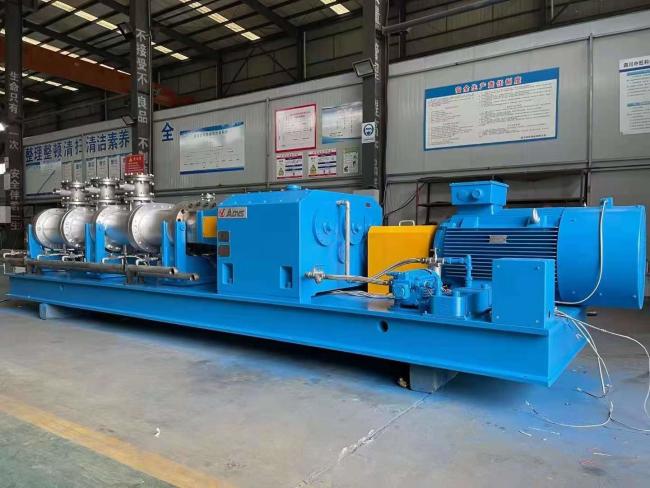

3,Photos:
